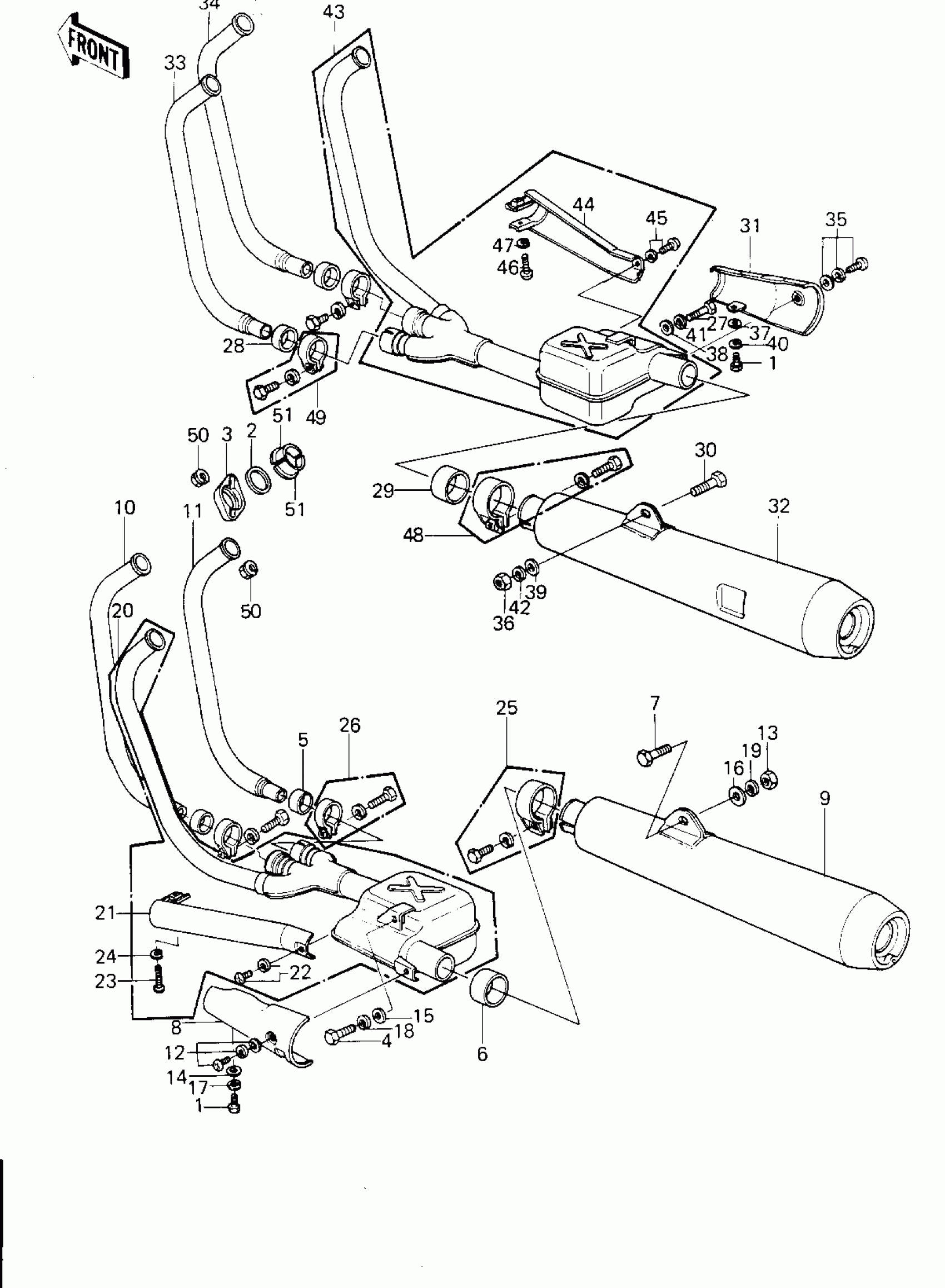

Kawasaki KZ1300-B2 MUFFLERS Diagram
#
1
BOLT-UPSET,6X12
112G0612
$1.45
2
GASKET,EXHAUST PIPE H
11009-1866
$8.25
3
HOLDER-EXHAUST PIPE
18069-1010
Unavailable
4
BOLT-SMALL,8X25
114N0825
Unavailable
5
GASKET,MUFFLER CONNEC
11060-1051
$23.41
6
GASKET,EXHAUST PIPE CONNECTING
11009-1666
$32.66
7
BOLT,HEX HEAD,10X55
113B1055
$9.62
8
COVER,MUFFLER,L.H,RER
14025-1149
Unavailable
9
MUFFLER,L.H
18002-1078
$449.96
10
PIPE-EXHAUST,#2
18049-1164
$211.66
11
PIPE-EXHAUST,#3
18049-1165
$211.66
12
SCREW,6X10,W/WASHER
92009-1098
$4.22
13
NUT-HEX-FINE,10MM
314B1000
$0.67
14
WASHER PLAIN 6MM
411B0600
$2.84
15
WASHER-PLAIN,8MM
411D0800
$3.09
16
WASHER-PLAIN,10MM
411B1000
$0.93
17
WASHER SPRING 6MM
461F0600
$0.69
18
WASHER SPRING 8MM
461S0800
$0.65
19
WASHER SPRING 10MM
461F1000
$0.67
20
MUFFLER-COMP,LH
49070-1101
$513.26
21
COVER,MUFFLER,L.H,FR
14025-1147
Unavailable
22
SCREW,6X12
92009-1088
$4.22
23
SCREW PAN HEAD 6X40
220B0640
Unavailable
24
WASHER SPRING 6MM
461F0600
$0.69
25
CLAMP,MUFFLER
92037-1105
$9.84
26
CLAMP,MUFFLER,37MM
92037-1243
Unavailable
27
BOLT,8X55
114N0855
$4.09
28
GASKET,MUFFLER CONNEC
11060-1051
$23.41
29
GASKET,EXHAUST PIPE CONNECTING
11009-1666
$32.66
30
BOLT,HEX HEAD,10X55
113B1055
$9.62
31
COVER,MUFFLER,R.H,RER
14025-1150
Unavailable
32
MUFFLER,R.H
18002-1079
$452.14
33
PIPE-EXHAUST,#4
18049-1166
$211.66
34
PIPE-EXHAUST,#5
18049-1167
$211.66
35
SCREW,6X10,W/WASHER
92009-1098
$4.22
36
NUT-HEX-FINE,10MM
314B1000
$0.67
37
WASHER PLAIN 6MM
411B0600
$2.84
38
WASHER-PLAIN,8MM
411D0800
$3.09
39
WASHER-PLAIN,10MM
411B1000
$0.93
40
WASHER SPRING 6MM
461F0600
$0.69
41
WASHER SPRING 8MM
461S0800
$0.65
42
WASHER SPRING 10MM
461F1000
$0.67
43
MUFFLER-COMP,RH
49070-1102
$513.26
44
COVER,MUFFLER,R.H,FR
14025-1148
Unavailable
45
SCREW,6X12
92009-1088
$4.22
46
SCREW PAN HEAD 6X40
220B0640
Unavailable
47
WASHER SPRING 6MM
461F0600
$0.69
48
CLAMP,MUFFLER
92037-1105
$9.84
49
CLAMP,MUFFLER,37MM
92037-1243
Unavailable
50
NUT,LOCK 6MM
92017-014
$7.51
51
COLLAR,L=14.5
92027-1142
$5.00
