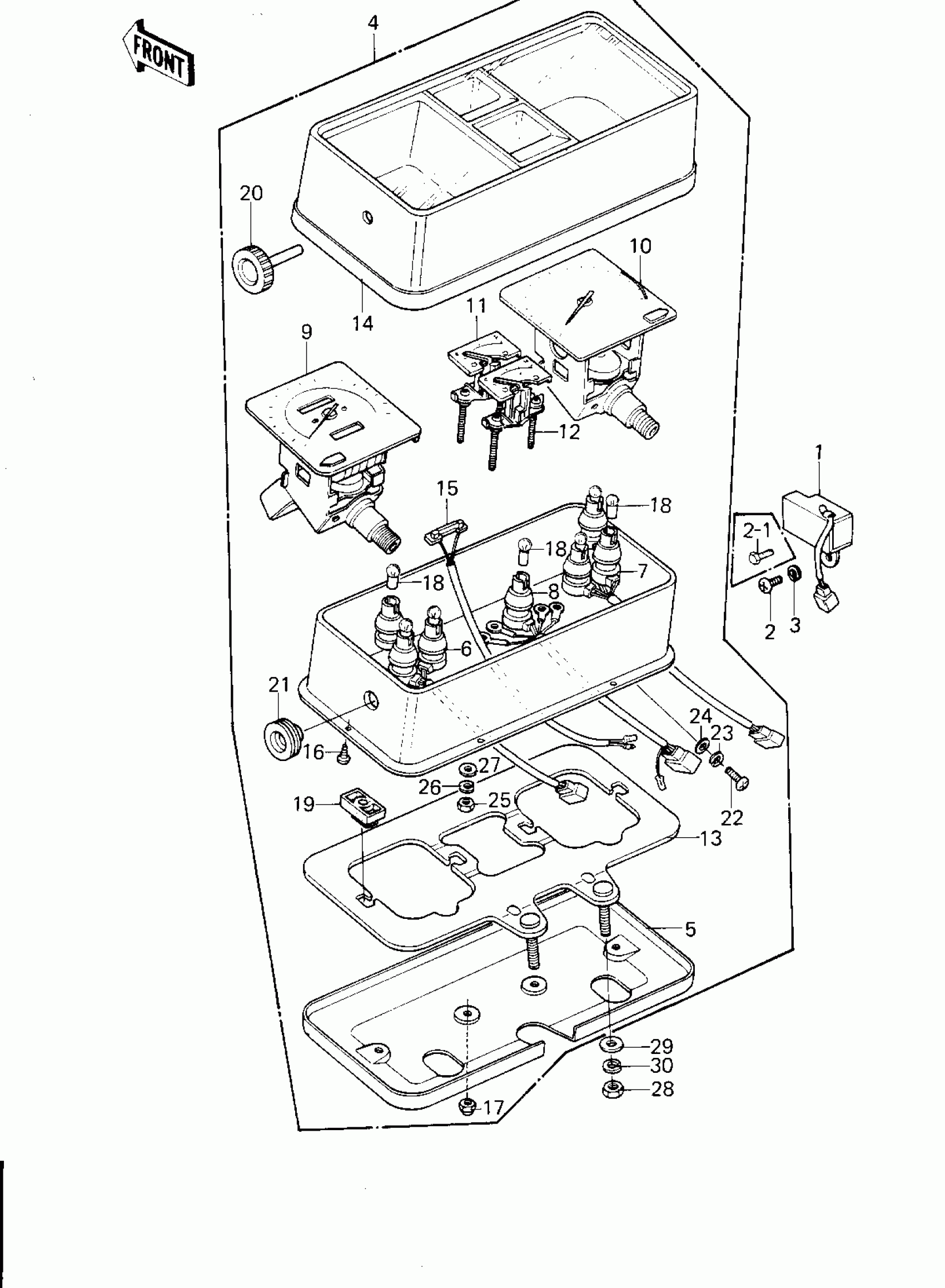

Kawasaki KZ1300-B2 METERS Diagram

#

Description
Price

1

REGULATOR,VOLTAGE

21066-1006

$106.95

2

SCREW PAN HEAD 6X12

220B0612

Unavailable

2-1

BOLT-UPSET,6X12

112G0612

$1.49

3

WASHER SPRING 6MM

461F0600

Unavailable

4

METER ASSY,MPH

25001-1147

$995.42

4

METER ASSY,KPH (Canada)

25001-1148

Unavailable

5

COVER,METER,LOWER

14025-1098

Unavailable

6

SOCKET ASSY,SPEEDOMET

23008-1033

$29.44

7

SOCKET ASSY,TACHOMETE

23008-1034

$29.44

8

SOCKET ASSY,FUEL & TE

23008-1035

$20.53

9

SPEEDOMETER UNIT,MPH

25005-1069

Unavailable

9

SPEEDOMETER UNIT,KPH (Canada)

25005-1051

Unavailable

10

TACHOMETER UNIT

25015-1037

$449.70

11

METER,FUEL

28011-1003

$107.43

12

METER,TEMPERATURE

28011-1007

Unavailable

13

BRACKET,METER

25008-1015

$41.83

14

COVER,METER,UPPER

25023-1010

Unavailable

15

SENSOR,DISTANCE

27010-1032

$35.43

16

SCREW,TAPPING,3.5X12

92008-012

$3.69

17

NUT-CAP,5MM

322N0500

Unavailable

18

BULB 12V 3W

92069-018

$4.87

19

DAMPER,METER BRACKET

92075-1140

$4.88

20

KNOB,TRIP

92077-1008

Unavailable

21

SEAL,TRIP KNOB

92093-1029

$4.31

22

SCREW PAN HEAD 4X8

220B0408

Unavailable

23

WASHER SPRING 4MM

461F0400

Unavailable

24

WASHER PLAIN 4MM

410B0400

Unavailable

25

NUT-HEX

311B0400

Unavailable

26

WASHER SPRING 4MM

461F0400

Unavailable

27

WASHER PLAIN 4MM

410B0400

Unavailable

28

NUT,8MM

311B0800

Unavailable

29

WASHER PLAIN 8MM

411B0800

Unavailable

30

WASHER SPRING 8MM

461F0800

Unavailable
