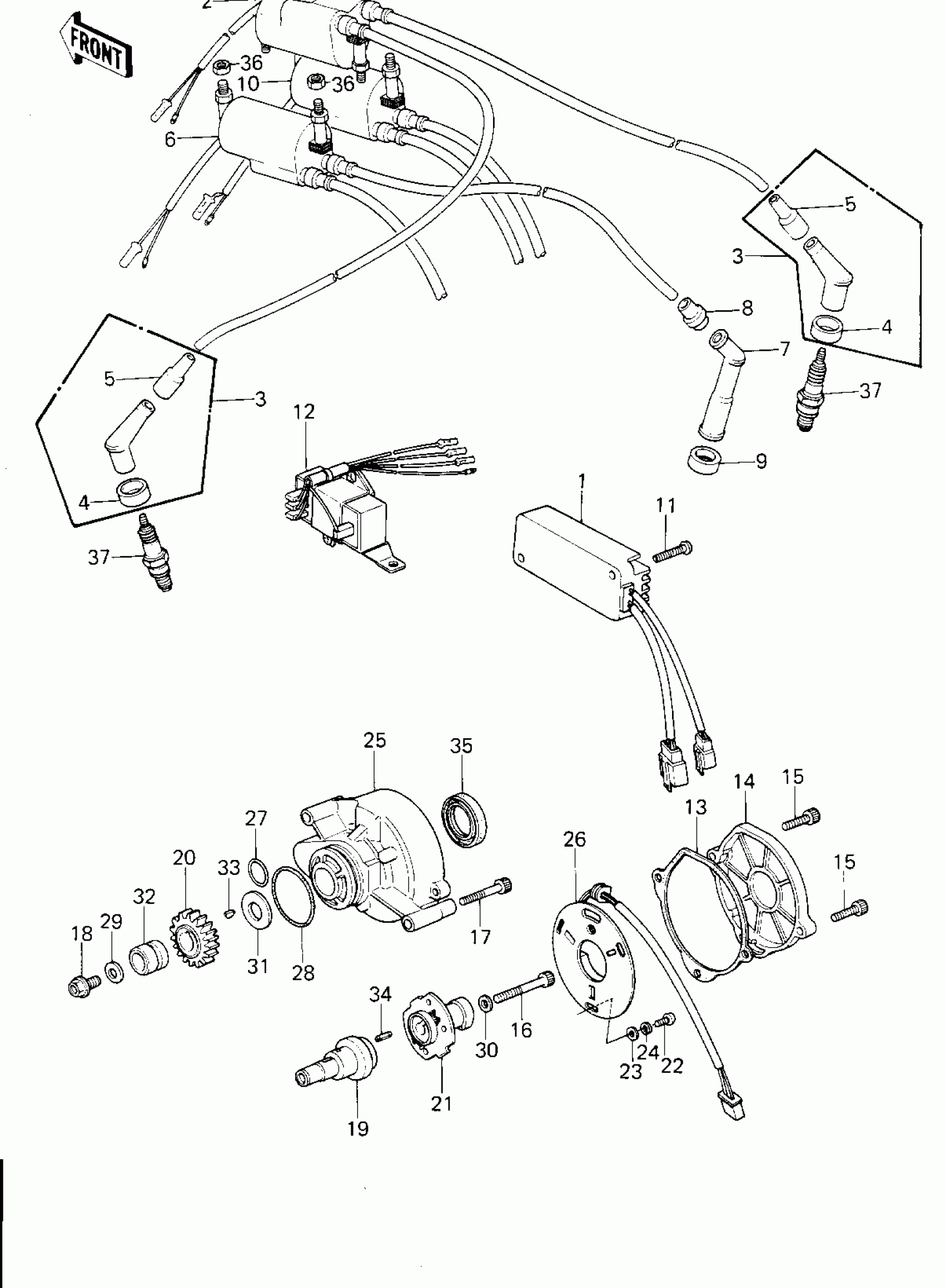

Kawasaki KZ1300-B2 IGNITION Diagram

#

Description
Price

1

IGNITER

21119-1005

Unavailable

2

COIL,IGNITION,#1.6

21121-1017

$279.36

3

CAP SPARK PLUG

21160-1014

Unavailable

4

GROMMET,PLUG CAP

21131-004

$10.97

5

GROMMET,HIGH TENSION

21132-005

$4.26

6

COIL,IGNITION,#2.5

21121-1018

$279.36

7

CAP-SPARK PLUG

21130-1010

$51.68

8

GROMMET,HIGH TENSION

21131-005

$6.16

9

GROMMET,PLUG CAP

21131-006

$8.53

10

COIL,IGNITION,#3.4

21121-1019

Unavailable

11

SCREW PAN HEAD 6X25

220B0625

Unavailable

12

RESISTOR,IGNITIN,COIL

28018-1014

Unavailable

13

GASKET,PULSING C.CAP

11009-1086

Unavailable

14

CAP,PULSING COIL

11012-1051

Unavailable

15

BOLT-SOCKET,6X20

120P0620

Unavailable

16

BOLT,8X50

120P0850

Unavailable

17

BOLT,SOCKET,6X40

120P0640

Unavailable

18

BOLT-FLANGED,8X14

130G0814

Unavailable

19

SHAFT,TIMING ADVANCER

13107-1010

Unavailable

20

GEAR,TIMING ADVANCER

16085-1009

Unavailable

21

ADVANCER,TIMING

21148-1008

$122.96

22

SCREW-PAN-CROS

220B0512

$0.42

23

WASHER PLAIN 5MM

410B0500

Unavailable

24

WASHER SPRING 5MM

461F0500

Unavailable

25

CASE,TIMING ADVANCER

32099-1007

$61.10

26

COIL,PULSING

59026-1006

Unavailable

27

O RING,22MM

670B2022

$4.69

28

O RING,45MM

670B3045

Unavailable

29

WASHER,PLAIN

92022-064

$1.14

30

WASHER,8.5X20X1.6

92022-1561

$4.31

31

SPACER,14.3X30X1.0

92026-1029

$3.85

32

COLLAR,14X20X20

92027-1140

$17.41

33

WOODRUFF KEY IDLE GR

92038-010

Unavailable

34

PIN-SPRING,4X8

555A0408

$3.92

35

OIL SEAL,SC32435.5

92049-1027

$22.73

36

NUT,LOCK 6MM

92017-014

$7.51

37

SPARK PLUG BP6ES

BP6ES

Unavailable

37

SPARK PLUG BP7ES

BP7ES

$2.92
