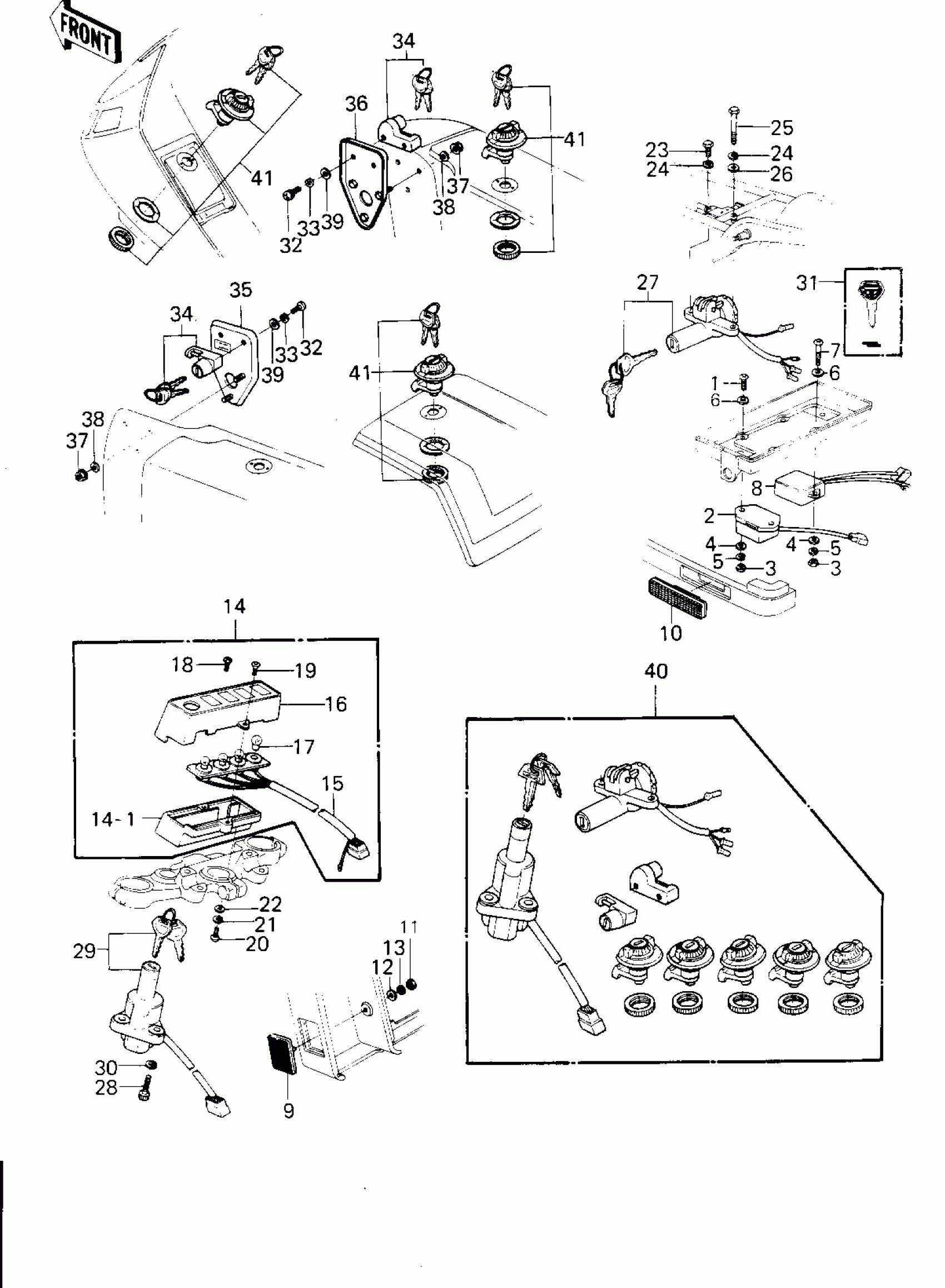

Kawasaki KZ1300-B2 IGNITION SWITCH/LOCKS/REFLECTORS Diagram

#

Description
Price

1

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

2

SWITCH,RESERVE LIGHTI

27010-1024

Unavailable

3

NUT 6MM

311B0600

$0.93

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

5

WASHER SPRING 6MM

461F0600

$0.69

6

WASHER PLAIN

92022-024

$3.65

7

SCREW PAN HEAD 6X35

220B0635

$1.63

8

SWITCH,TURN SIGNAL OP

27010-1016

Unavailable

9

REFLECTOR-REFLEX

28012-1003

$22.09

10

REFLECTOR,REFLEX

28012-1006

$17.64

11

NUT-HEX

311B0500

$0.47

12

WASHER-PLAIN,5MM

411B0500

$0.46

13

WASHER SPRING 6MM

461F0600

$0.69

14

LAMP ASSY,PILOT

23016-1014

$83.57

14-1

COVER,PILOT LAMP,LOWE

14025-1117

Unavailable

15

SOCKET ASSY,PILOT LAM

23008-1041

$42.24

16

COVER,PILOT LAMP,UPPE

25023-1014

$60.26

17

BULB 12V 3W

92069-018

$4.87

18

SCREW,TAPPING,3.5X10

92009-1073

Unavailable

19

SCREW,CNTSNK HED,4X10

92009-1074

Unavailable

20

SCREW PAN HEAD 5X16

220B0516A

$2.06

21

WASHER SPRING 5MM

461F0500

$0.69

22

WASHER-PLAIN,5MM

411B0500

$0.46

23

BOLT-UPSET,6X12

112G0612

$1.45

24

WASHER SPRING 6MM

461F0600

$0.69

25

BOLT-UPSET

112G0645

$0.48

26

WASHER PLAIN 6MM

411B0600

$2.84

27

LOCK ASSY,SEAT

27016-5027

$131.44

28

BOLT,SOCKET,8X22

120P0822

$4.82

29

IGNITION&STEERING ASY

27016-5034

Unavailable

30

WASHER SPRING 8MM

461F0800

$0.40

31

KEY-LOCK,BLANK

27008-1103

Unavailable

32

SCREW-PAN-CROS

220B0512

$0.47

33

WASHER SPRING 5MM

461F0500

$0.69

34

LOCK ASSY,HELMET

27016-5036

Unavailable

35

BRACKET,HELMET LOCK

32074-1013

$10.68

36

BRACKET,HELMET LOCK

32074-1014

$10.68

37

NUT,LOCK 6MM

92017-014

$7.51

38

WASHER PLAIN

92022-024

$3.65

39

WASHER,PLAIN

92022-283

$2.32

40

SWITCH LOCK ASSY

27004-5078

Unavailable

41

LOCK ASSY

27016-5035

$51.15
