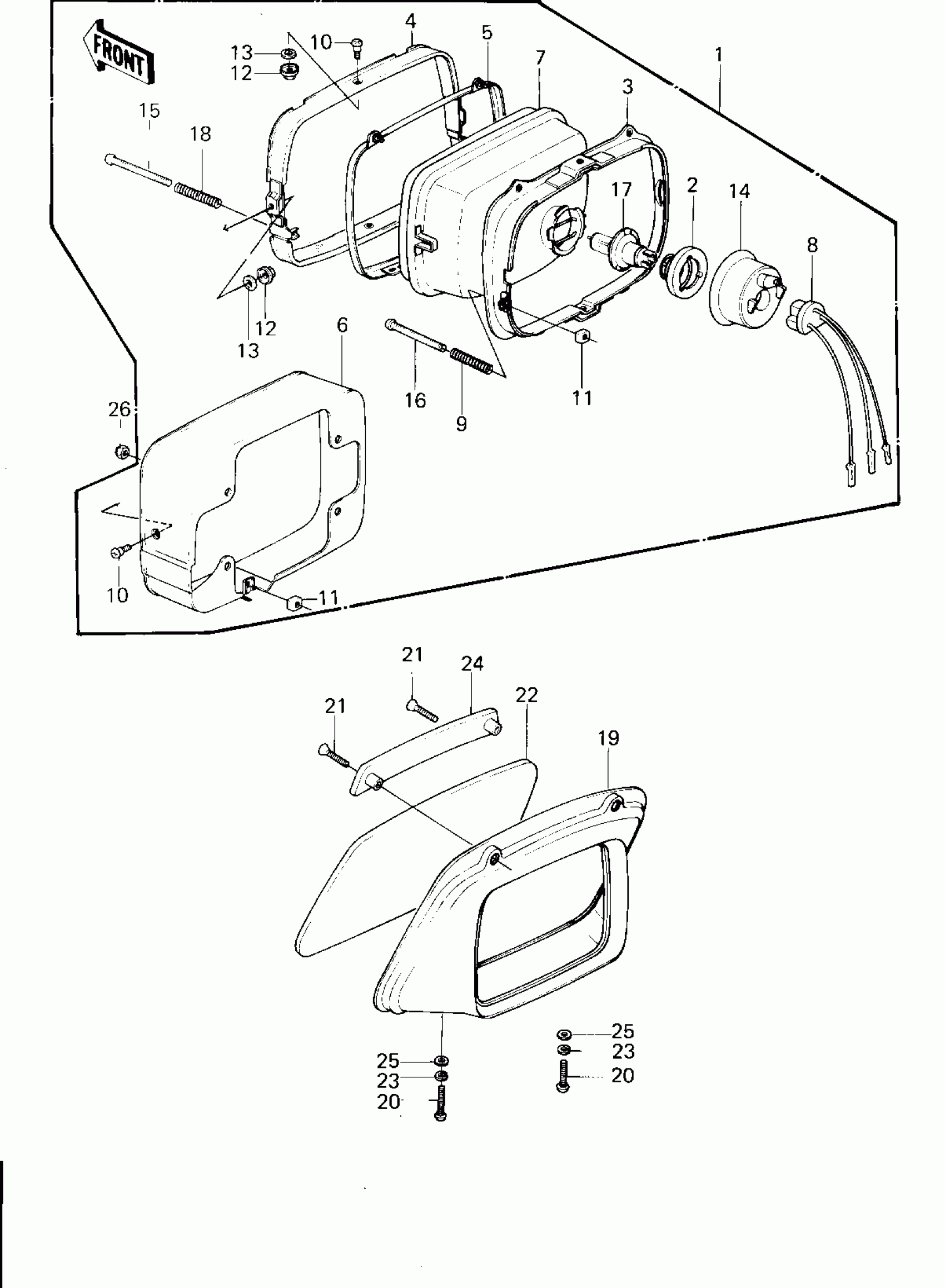

Kawasaki KZ1300-B2 HEADLIGHT Diagram

#

Description
Price

1

LAMP ASSY,HEAD

23001-1050

$225.50

2

HOLDER,HEAD LAMP SOCK

13091-1036

$18.00

3

HOLDER,MOUNTING RING

13091-1054

Unavailable

4

HOLDER,MOUNTING RING

13091-1055

Unavailable

5

RETAINER,HEAD LAMP

14020-1011

Unavailable

6

BODY,HEAD LAMP

23005-1010

$51.42

7

LENS UNIT,HEAD LAMP

23007-1013

$275.42

8

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

9

SPRING,FOCUS ADJUSTING

23014-005

$3.19

10

SCREW,PAN HEAD,5X12

23019-023

$4.78

11

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

12

NUT,5MM

23020-023

Unavailable

13

WASHER,PLAIN,5MM

23021-012

Unavailable

14

COVER,HEAD LAMP SOCKE

49016-1023

Unavailable

15

SCREW,4MM,FOCUS ADJUST

92009-1047

$3.74

16

SCREW,4X48

92009-1065

$3.74

17

BULB,12V 60/55W,H4

92069-1002

Unavailable

18

SPRING,HEAD LAMP LENS

92081-1103

$4.10

19

COVER,HEAD LAMP SEAL

14025-1151

Unavailable

20

SCREW PAN HEAD 6X30

220E0630

$4.07

21

SCREW OVL CNTSNK 6X30

222E0630

Unavailable

22

LENS,HEAD LAMP SEAL

23026-1012

$229.52

23

WASHER SPRING 6MM

461F0600

Unavailable

24

EMBLEM

56014-1034

$29.36

25

WASHER PLAIN

92022-024

$2.76

26

NUT,LOCK 6MM

92017-014

$5.74
