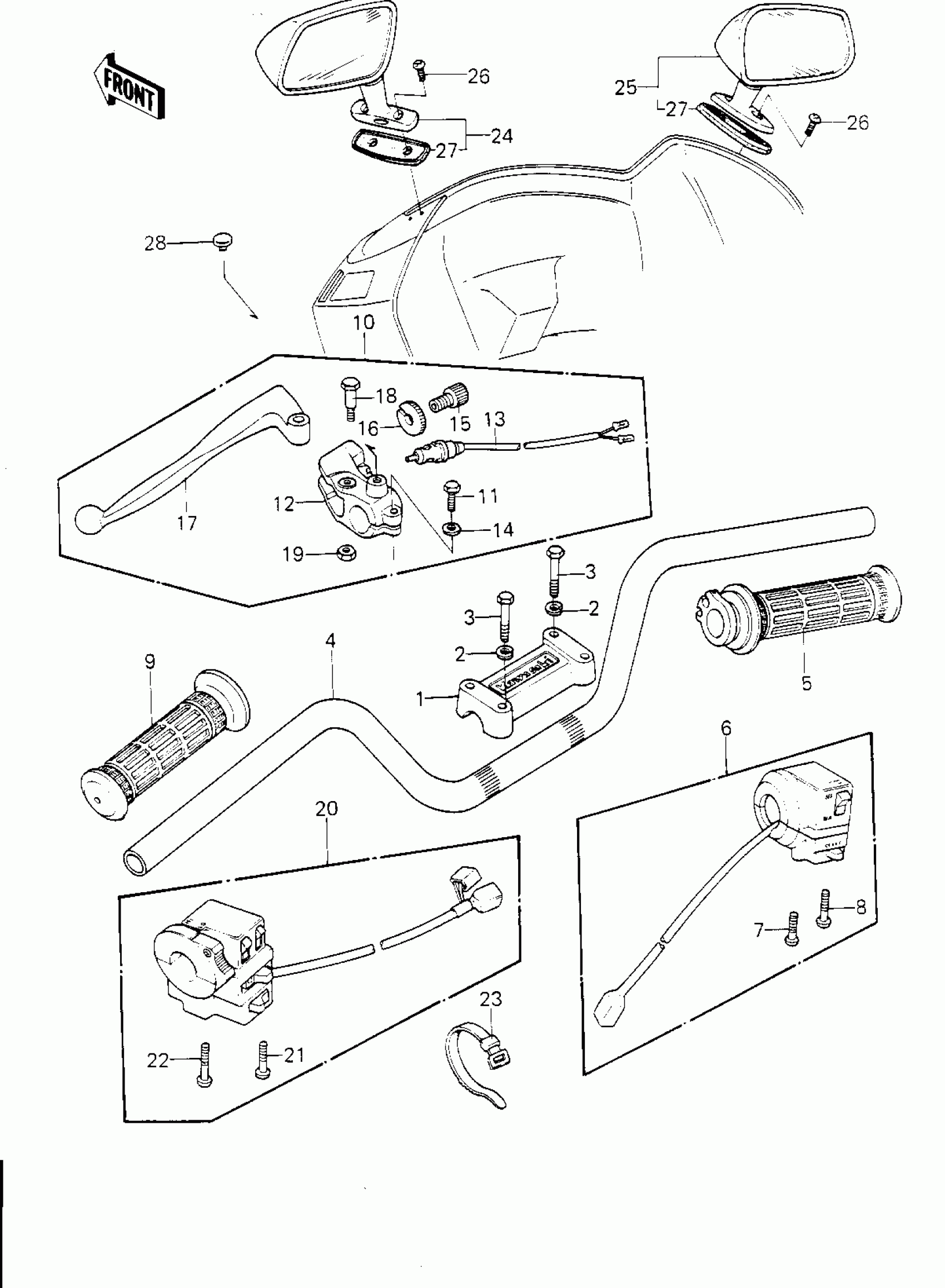

Kawasaki KZ1300-B2 HANDLEBAR Diagram

#

Description
Price

1

HOLDER,HANDLEBAR

46012-1007

$27.51

2

WASHER SPRING 8MM

461F0800

Unavailable

3

BOLT 8X38

92001-1405

$16.50

4

HANDLEBAR

46003-1043

$120.87

5

GRIP-ASSY,THROTTLE

46019-1013

Unavailable

6

HOUSING ASSY,R.H

46091-1080

Unavailable

7

SCREW PAN HEAD 5X30

220B0530

Unavailable

8

SCREW-PAN-CROS

220B0540

Unavailable

9

GRIP,LH

46075-1020

$24.97

10

LEVER ASSY,CLUTCH

46076-1006

$37.20

11

BOLT,6X22

110N0622

Unavailable

12

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

$50.69

13

SWITCH,CLUTCH

27043-002

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

15

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

16

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

17

LEVER-GRIP,CLUTCH

46092-1005

$28.37

18

BOLT,CLUTCH LEVER

92001-1075

$8.19

19

NUT,LOCK,6MM

92019-008

$4.26

20

HOUSING ASSY,L.H

46091-1059

$292.45

21

SCREW-PAN-CROS

220B0535

$2.76

22

SCREW-PAN-CROS

220B0545

Unavailable

23

BAND,L=149

92072-031

$5.00

24

REAR VIEW MIRROR,L.H

56001-5001

$101.24

25

REAR VIEW MIRROR,R.H

56001-5002

$88.90

26

SCREW,PAN HEAD,6X20

92009-1019

$2.80

27

DAMPER,REAR VIEW MIRR

92075-1230

Unavailable

28

PLUG

92066-1069

$1.71
