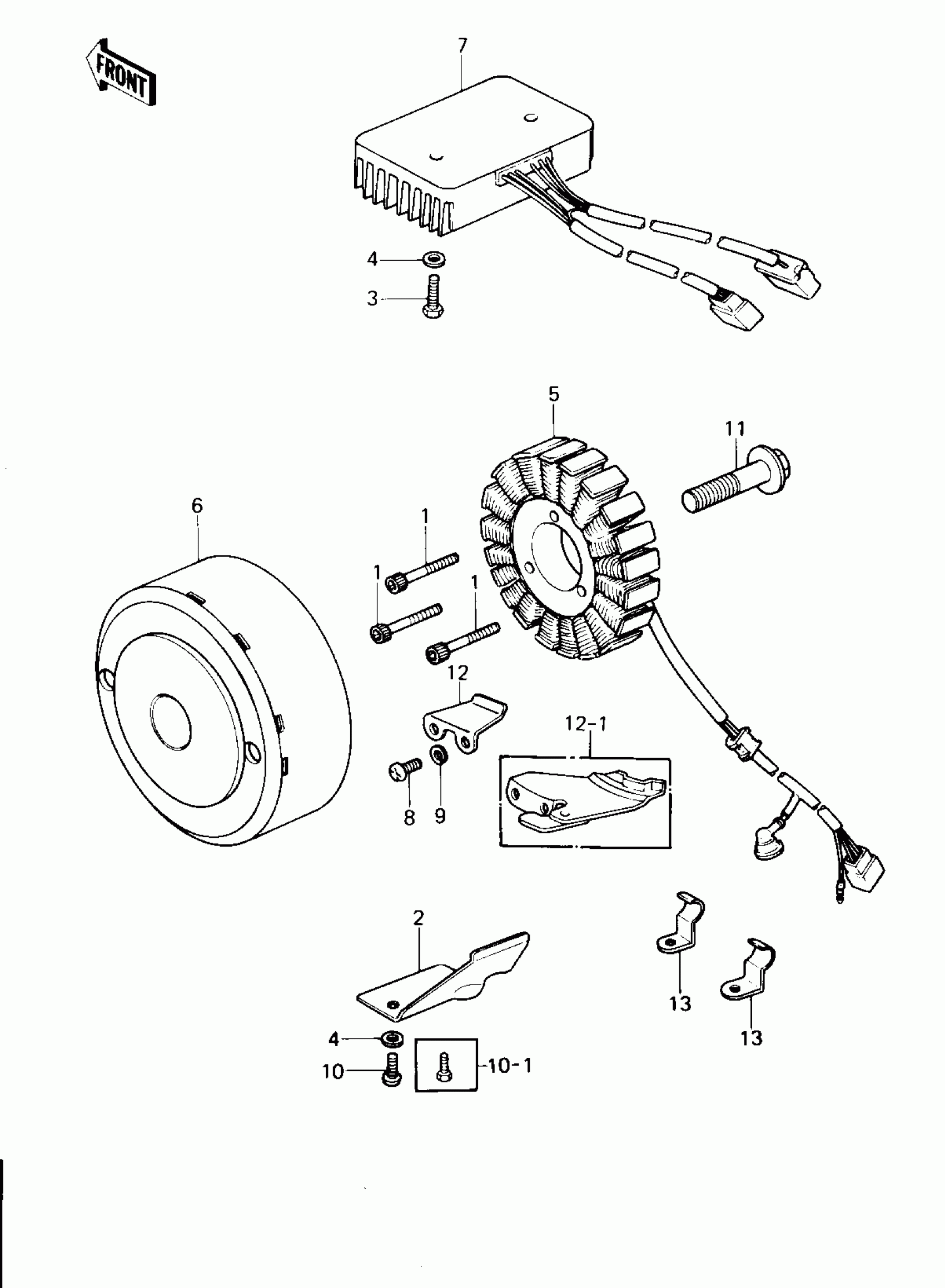

Kawasaki KZ1300-B2 GENERATOR/REGULATOR Diagram

#

Description
Price

1

BOLT,SOCKET,5X30

120Q0530A

$2.80

1

BOLT,SOCKET,5X35

120Q0535A

$0.94

2

COVER,GENERATOR LEAD

14025-1153

Unavailable

3

BOLT-UPSET

112G0625

$3.62

3

BOLT-UPSET 6X14

112B0614

Unavailable

4

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

5

STATOR ASSY

21003-1020

$1,268.40

5

STATOR ASSY

21003-1035

$714.14

6

ROTOR

21007-1015

$414.53

6

ROTOR

21007-1029

$385.76

7

REGULATOR,VOLTAGE

21066-1007

$570.57

7

REGULATOR,VOLTAGE

21066-1015

$299.49

8

SCREW-PAN-CROS

220B0512

$0.47

9

WASHER SPRING 5MM

461F0500

$0.69

10

SCREW PAN HEAD 6X10

220B0610

$3.14

10-1

BOLT,6X10

112G0610

$0.58

11

BOLT,10X40

92001-1201

$10.65

12

CLAMP,GENERATOR LEAD

92037-1098

$5.11

12-1

CLAMP,GENERATOR LEAD

92037-1207

$7.13

13

CLAMP,LEAD WIRE

92037-1345

$4.75
