Description

Price

1

BOLT-UPSET

112G0625

$3.62

2

PEDAL,CHANGE

13156-1038

Unavailable

3

DAMPER,CHANGE PEDAL

92075-1175

$5.59

4

LEVER-COMP-CHANGE SHAFT

13161-1114

Unavailable

5

BOLT,RETURN SPRING

92001-1401

$4.69

6

SPRING,CHANGE LEVER

92081-076

$5.46

7

SPRING,CHG PEDL RTRN

92083-028

Unavailable

8

LEVER,CHANGE

13168-1034

Unavailable

9

BOLT-FLANGED,8X25

130G0825

$2.89

10

COLLAR,L=8.7

92027-1139

$8.68

11

BOLT-UPSET,6X16

112G0616

$1.10

12

PLATE-POSITION

14014-1008

Unavailable

13

CIRCLIP, 12MM

481J1200

$1.33

14

BOLT,POSITIONING

92001-1134

$14.34

15

WASHER,4X11.5X1.0

92022-1095

$3.68

16

PIN,POSITIONING

92043-1044

$6.47

17

SPRING,POSITIONING

92081-1094

$2.58

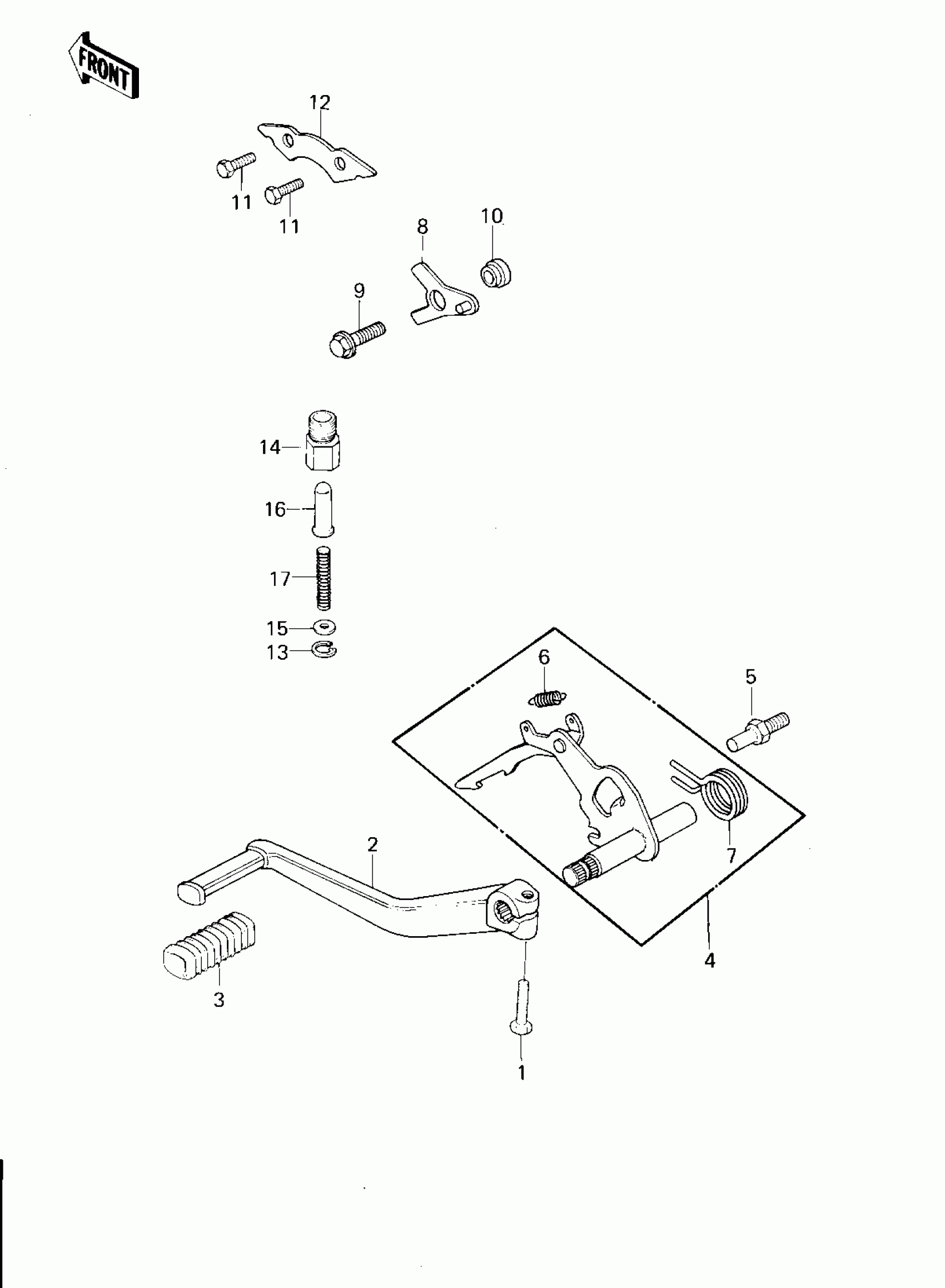

Kawasaki KZ1300-B2 GEAR CHANGE MECHANISM Diagram

BOLT-UPSET

PEDAL,CHANGE

DAMPER,CHANGE PEDAL

LEVER-COMP-CHANGE SHAFT

BOLT,RETURN SPRING

SPRING,CHANGE LEVER

SPRING,CHG PEDL RTRN

LEVER,CHANGE

BOLT-FLANGED,8X25

COLLAR,L=8.7

BOLT-UPSET,6X16

PLATE-POSITION

CIRCLIP, 12MM

BOLT,POSITIONING

WASHER,4X11.5X1.0

PIN,POSITIONING

SPRING,POSITIONING
