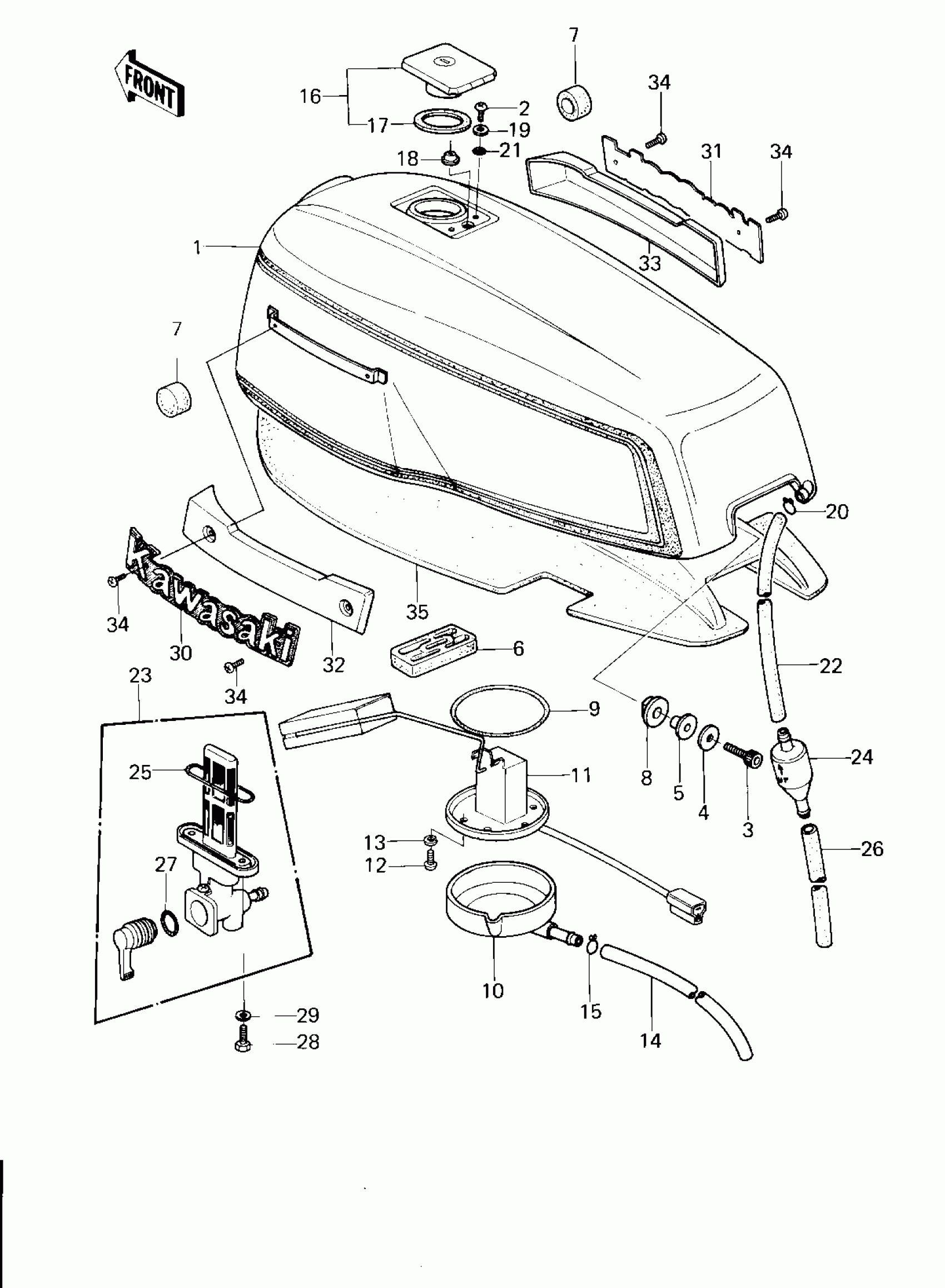

Kawasaki KZ1300-B2 FUEL TANK Diagram

#

Description
Price

1

TANK-FUEL,R.D.RED

51001-1025-D6

$875.21

2

SCREW PAN HEAD 5X10

220B0510

Unavailable

3

BOLT-SOCKET,8X30

120P0830

Unavailable

4

WASHER,8.5X26X1.6

92022-092

$3.85

5

COLLAR,FUEL TANK FITT

92027-1134

$7.83

6

DAMPER,FUEL TANK,RR

92075-1114

$12.68

7

DAMPER,FUEL TANK,FR

92075-1115

$4.93

8

DAMPER,FUEL TANK

92075-1116

Unavailable

9

"0" RING

92055-1067

Unavailable

10

COVER,FUEL GAGE

14025-1091

Unavailable

11

GAUGE,FUEL

52005-1014

$164.38

12

SCREW PAN HEAD 5X8

220B0508

Unavailable

13

WASHER SPRING 5MM

461F0500

Unavailable

14

TUBE-BREATHER (BULK)

702A071000

$10.11

15

CLAMP,TUBE

92037-147

$5.61

16

CAP ASSY,FUEL TANK

51048-1019

Unavailable

17

GASKET,FUEL TANK CAP

11009-1051

$8.34

18

SEAL,FUEL TANK CAP

92093-1030

$5.93

19

WASHER,5.3X10X0.8

92022-1038

$2.76

20

CLAMP,TUBE

92037-010

$2.99

21

RING-O

92055-1023

$2.99

22

TUBE-RUBBER,7X10X280

702A07280

$10.11

23

TAP ASSY,FUEL

51023-1028

Unavailable

24

BREATHER,FUEL TANK

14069-1004

$7.76

25

RING,TAP FLANGED

51039-010

$5.77

26

TUBE-RUBBER,7X10X400

702A07400

$10.11

27

RING-O

92055-1036

Unavailable

28

BOLT,6X20

92001-1091

$2.99

29

WASHER-PLAIN

92022-183

$2.99

30

EMBLEM,FUEL TANK,L.H

56014-1029

$38.22

31

EMBLEM,FUEL TANK,R.H

56014-1030

$52.07

32

EMBLEM BASE,FUEL TANK

56014-1031

$32.59

33

EMBLEM BASE,FUEL TANK

56014-1032

$32.59

34

SCREW-PAN-CROS,3X8

220C0308

$0.52

35

COVER,FUEL TANK

14025-1238

Unavailable
