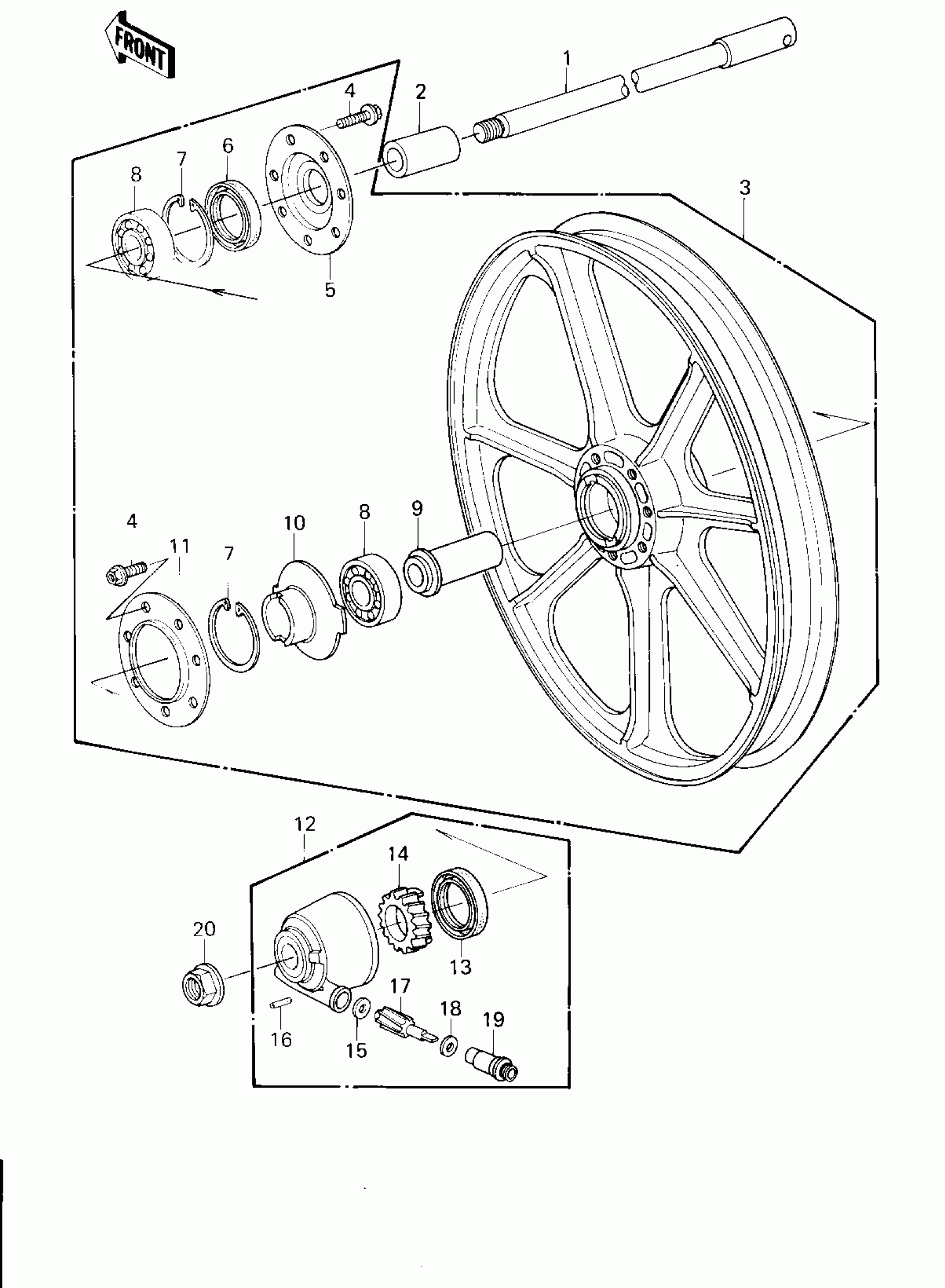

Kawasaki KZ1300-B2 FRONT WHEEL/HUB Diagram

#

Description
Price

1

AXLE,FRONT

41068-1016

$78.95

2

COLLAR,FRONT AXLE

92027-1125

$19.15

3

SOLID WHEEL ASSY,FRON

41073-1023

$763.38

4

BOLT,FLANGED,8X28

92001-1095

$6.57

5

DUST COVER,R.H

49016-1018

Unavailable

6

OIL SEAL,N0K AE1351EO

92049-1008

Unavailable

7

RING-SNAP,47MM

92033-1042

$4.22

8

BEARING BALL #6303Z

601B6303Z

$22.31

9

COLLAR,FRONT HUB BEAR

92027-1123

$15.76

10

RECEIVER,SPEEDOMETER

41064-1003

$29.98

11

DUST COVER,L.H

49016-1017

Unavailable

12

GEAR BOX ASSY

41078-1008

$129.71

13

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

14

GEAR-METER SCREW,26T

41059-026

$42.53

15

WASHER,5.1X9X0.4

41063-001

$4.69

16

PIN,SPRING

41082-001

$3.92

17

PINION,SPEEDOMETER

41060-1021

Unavailable

18

WASHER,5.1X9X0.4

41063-001

$4.69

19

BUSHING,SPEEDOMETER

92028-1045

$20.58

20

NUT,16MM

92015-1041

$11.61
