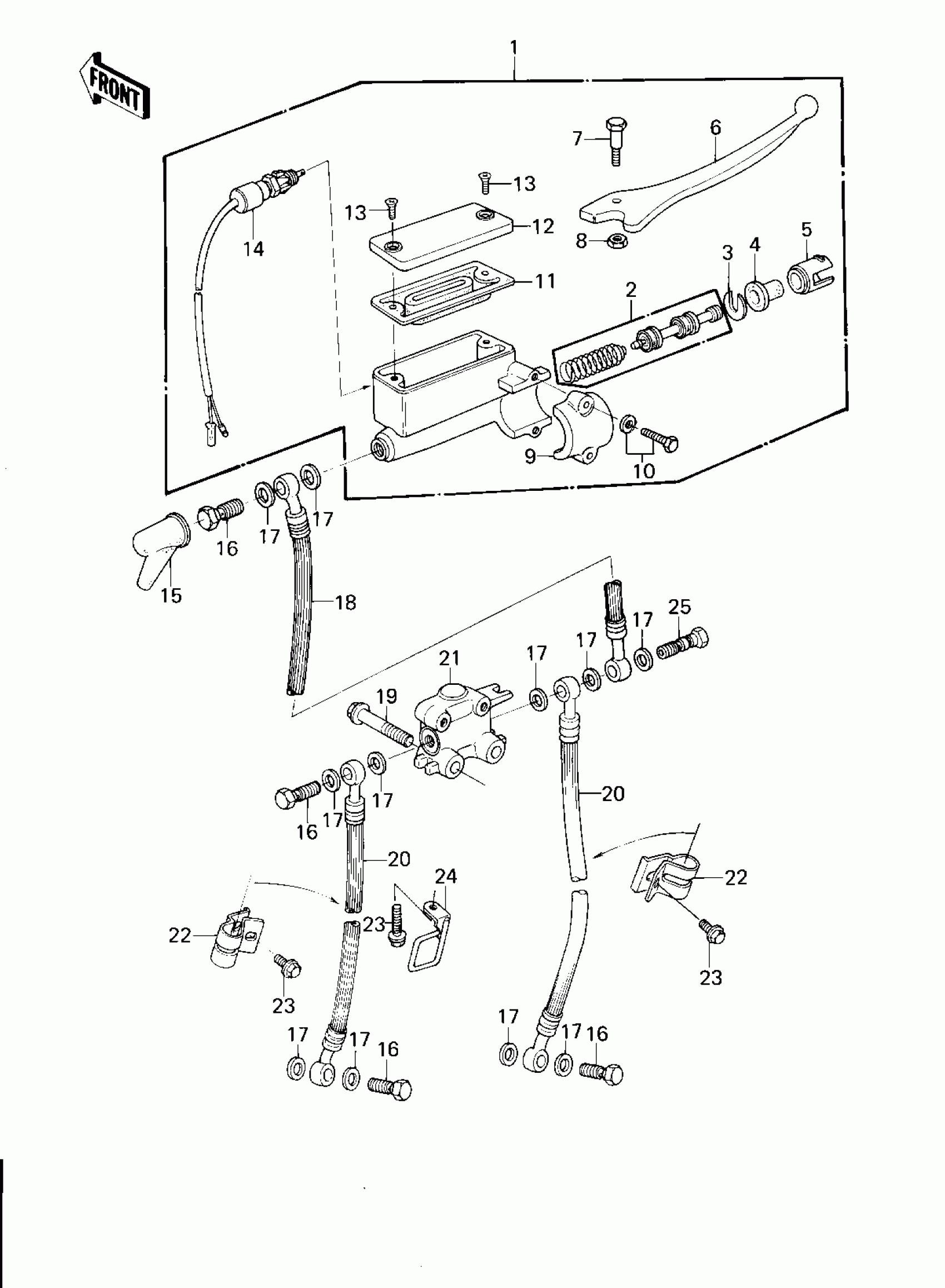

Kawasaki KZ1300-B2 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FNT MST

43015-1061

$198.73

2

PISTON-COMP-BRAKE

43020-1023

$95.02

3

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

4

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

5

LINER,PISTON

14008-1007

Unavailable

6

LEVER,FRONT BRAKE

46092-1012

Unavailable

7

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

8

NUT 6MM

312B0600

$0.72

9

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

10

BOLT,6X25,W/WASHER

43033-003

Unavailable

11

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

12

CAP,OIL CUP

43026-1012

$31.60

13

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

14

SWITCH,BRAKE

27010-1028

$33.48

15

BOOT,DUST

49006-1041

$11.49

16

BOLT,OIL,L=23

92002-1888

$5.48

17

WASHER,10.5X15X1.5

43067-001

$2.15

18

HOSE,MASTER CYL BRAKE

43059-1036

$41.87

19

BOLT-FLANGED,8X45

130G0845

$1.58

20

HOSE-BRAKE,L=570

43059-1175

$127.91

21

JOINT-BRAKE

43061-1001

$57.60

22

BRACKET,BRAKE HOSE

11034-1284

Unavailable

23

BOLT-FLANGED,6X8

130B0608

$0.67

24

BRACKET,SPEED CABLE

11034-1285

Unavailable

25

BOLT,OIL,L=37

92002-1909

$11.83
