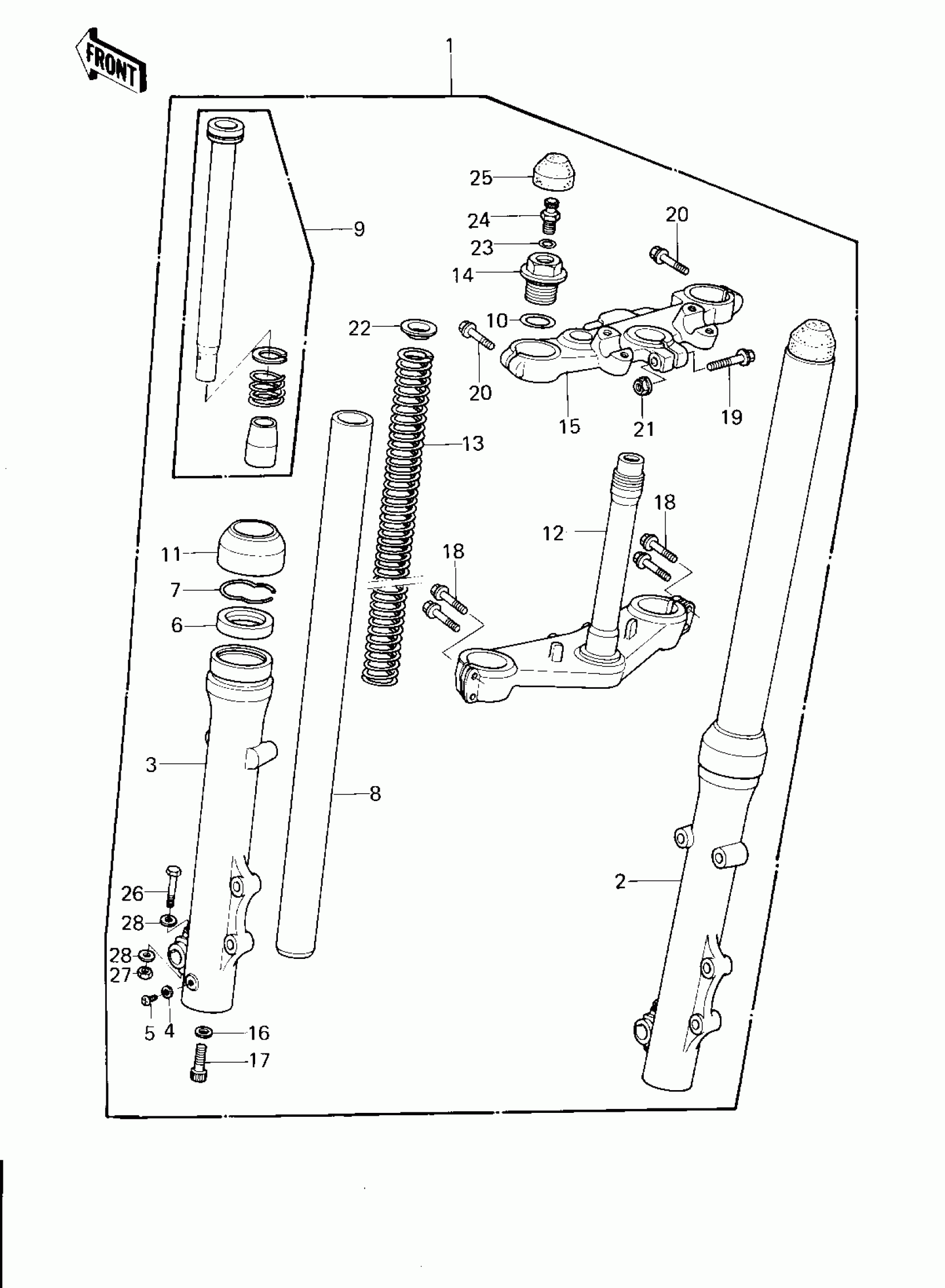

Kawasaki KZ1300-B2 FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-1213

$1,125.35

2

TUBE,RH,FORK OUTER

44006-1043

$362.06

3

TUBE,LH,FORK OUTER

44005-1043

$553.77

4

GASKET,FORK DRAIN PLUG

44045-002

$3.95

5

SCREW PAN HEAD 4X8

220B0408

Unavailable

6

OIL SEAL

92049-1043

$14.59

7

RING-SNAP

92033-1036

$4.88

8

TUBE,FORK INNER

44013-1019

$441.20

9

CYLINDER-FORK

44022-1029

$118.54

10

RING-O,FORK TOP CAP

92055-1050

$4.71

11

DUST SHIELD,FORK

92093-1023

Unavailable

12

STEM,STEERING

44037-1031

$413.64

13

SPRING,FORK

44026-1028

$78.03

14

CAP,FORK TOP

44029-1008

Unavailable

15

HEAD,STEERING STEM

44039-1013

$357.90

16

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

17

BOLT,FORK CYLINDER

92001-1186

$2.66

18

BOLT-FLANGED,8X45

131G0845

Unavailable

19

BOLT,HEX HEAD,8X53

92001-1060

Unavailable

20

BOLT,FLANGED,10X45

92001-1189

Unavailable

21

NUT,8M/M

44007-1002

Unavailable

22

GUIDE-FORK SPRING

44028-1003

Unavailable

23

"0" RING,AIR VALVE

92055-1018

Unavailable

24

VALVE ASSY,AIR

16126-1003

Unavailable

25

CAP,RUBBER,FORK TOP

44029-1009

Unavailable

26

BOLT,HEX HEAD,8X55

114G0855

Unavailable

27

NUT,LOCK,8MM

92015-1124

$4.10

28

WASHER PLAIN 8MM

410B0800

Unavailable
