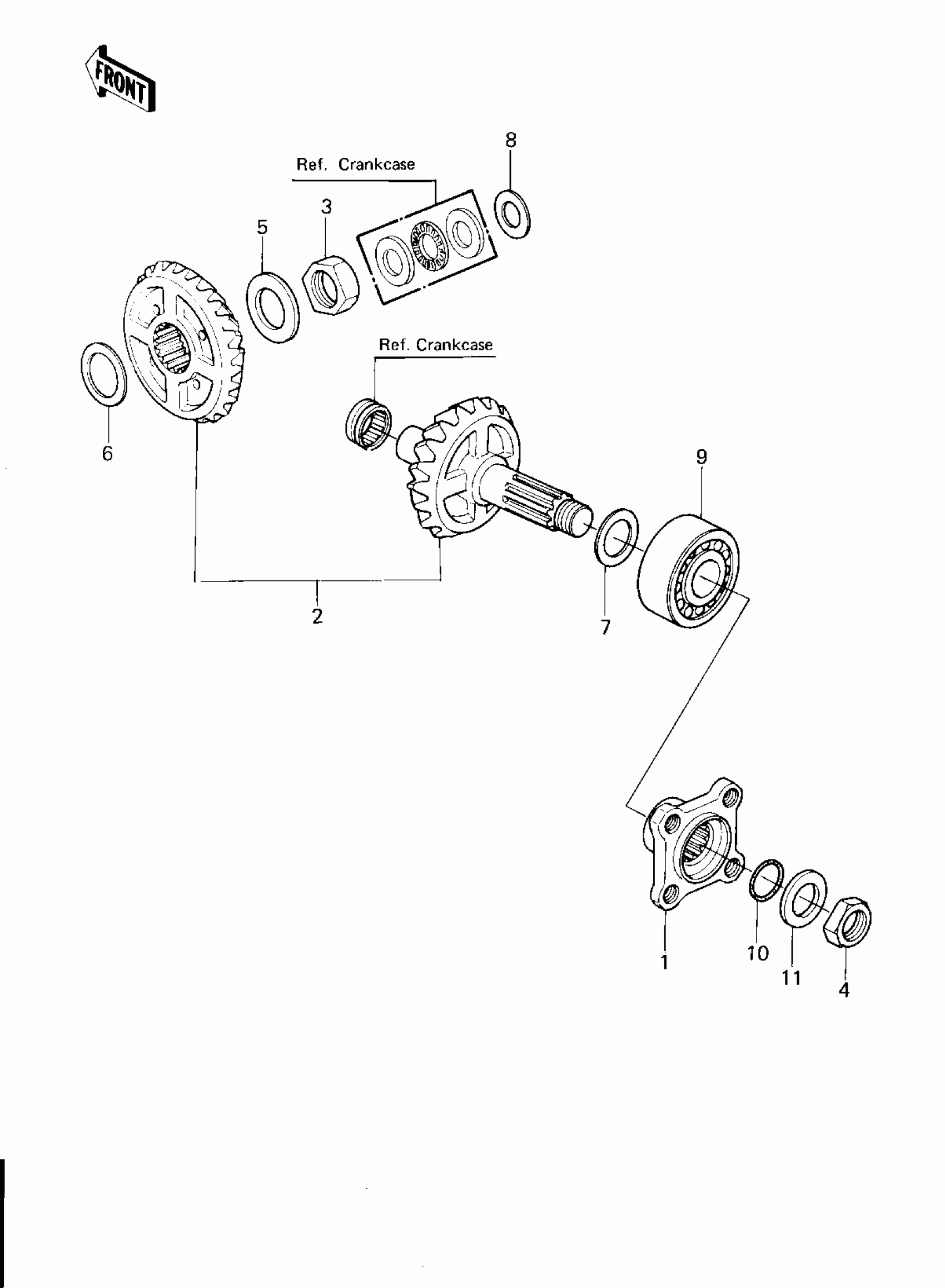

Kawasaki KZ1300-B2 FRONT BEVEL GEARS Diagram
#
Description
Price
1
COUPLING,OUTPUT SHAFT
42034-1010
$128.76
2
GEAR SET,FRONT BEVEL
13101-5025
Unavailable
3
NUT,24MM
92015-1057
$15.65
4
NUT,20M/M
92015-1058
$7.20
5
WASHER,SPRING,24MM
92022-1104
$9.69
6
SHIM,30.3X40X0.6
92025-1006
Unavailable
6
SHIM,30.3X40X0.9
92025-1007
Unavailable
6
SHIM,30.3X40X1.20
92025-1008
Unavailable
6
SHIM,30.3X40X0.1
92025-1009
Unavailable
6
SHIM,30.3X40X0.15
92025-1010
Unavailable
6
SHIM,30.3X40X0.20
92025-1011
Unavailable
6
SHIM,30.3X40X0.30
92025-1012
Unavailable
7
SHIM,25.3X36X0.6
92025-1013
Unavailable
7
SHIM,25.3X36X0.9
92025-1014
Unavailable
7
SHIM,25.3X36X1.20
92025-1696
Unavailable
7
SHIM,25.3X36X0.1
92025-1016
Unavailable
7
SHIM,25.3X36X0.15
92025-1017
Unavailable
7
SHIM,25.3X36X0.2
92025-1018
Unavailable
7
SHIM,25.3X36X0.30
92025-1019
Unavailable
8
SHIM,15.3X27.5X0.60
92025-1020
Unavailable
8
SHIM,15.3X27.5X0.90
92025-1021
Unavailable
8
SHIM,15.3X27.5X1.20
92025-1022
Unavailable
8
SHIM,15.3X27.5X0.10
92025-1023
Unavailable
8
SHIM,15.3X27.5X0.15
92025-1024
Unavailable
8
SHIM,15.3X27.5X0.20
92025-1025
Unavailable
8
SHIM,15.3X27.5X0.30
92025-1026
Unavailable
9
BEARING-BALL,5305SH2CD2
92045-1147
$98.43
10
RING-O,20.5MM
92055-1029
Unavailable
11
WASHER
92125-002
Unavailable
