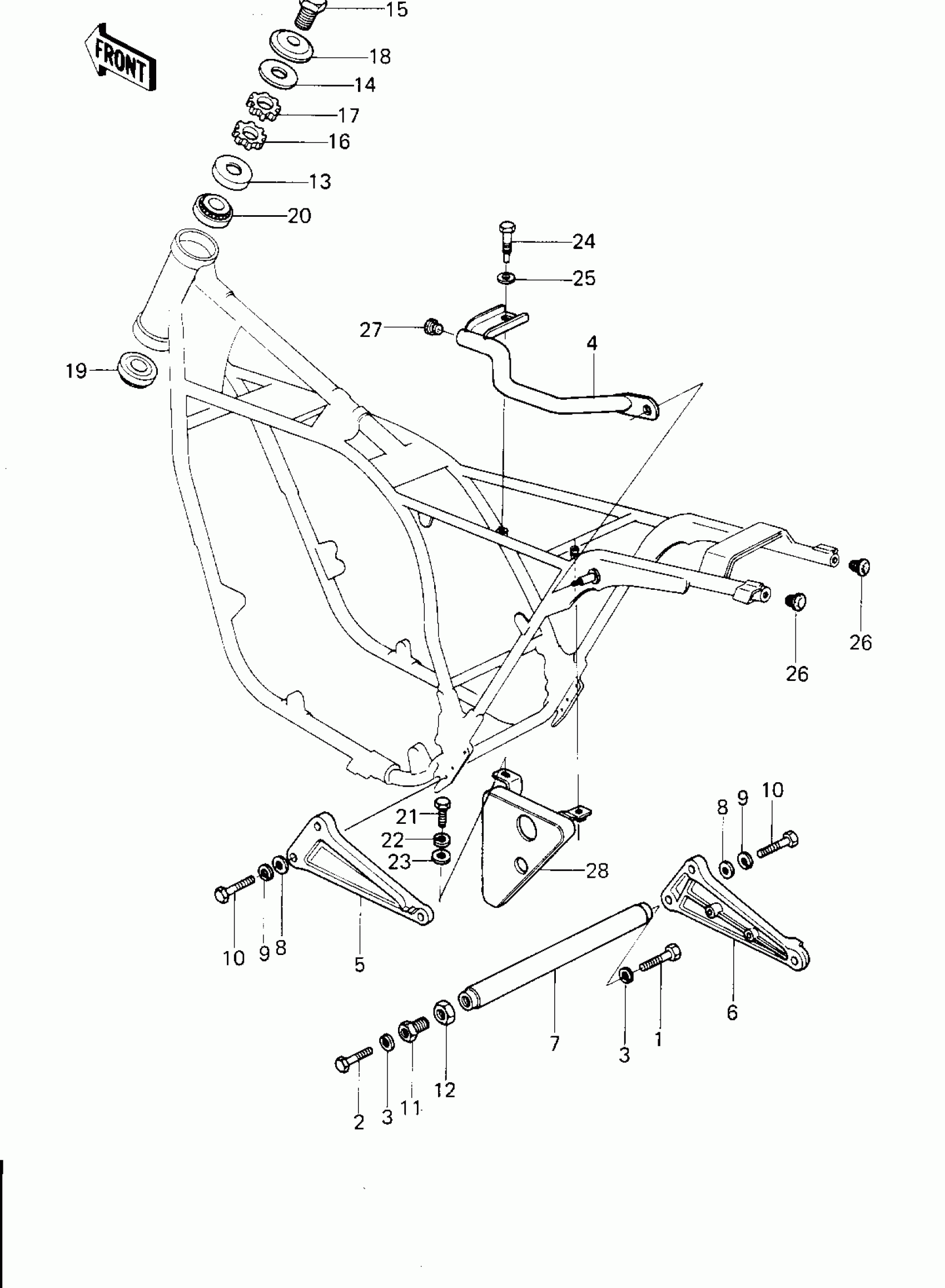

Kawasaki KZ1300-B2 FRAME FITTINGS Diagram
#
Description
Price
1
BOLT,HEX HEAD,10X25
113G1025
Unavailable
2
BOLT-UPSET,10X30
112G1030
Unavailable
3
WASHER SPRING 10MM
461F1000
$0.67
4
GRIP,FRAME
32109-1015
$18.70
5
STAY,MUFFLER,L.H
35011-1019
$77.14
6
STAY,MUFFLER,R.H
35011-1020
$74.34
7
CROSSMEMBER
39042-1001
$55.28
8
WASHER PLAIN 8MM
411B0800
$0.93
9
WASHER SPRING 8MM
461F0800
$0.40
10
BOLT,HEX HEAD,8X30
92001-1142
$3.61
11
BOLT,CROSSMEMBER FITT
92001-1216
$9.57
12
NUT,CROSSMEMBER FITTI
92015-1086
$3.42
13
CAP,STEERING STEM HEA
11012-1059
Unavailable
14
WASHER,WAVE
46100-003
$11.39
15
BOLT,16X25.5
92007-031
Unavailable
16
NUT,STEERING STEM HEA
92015-1052
$9.55
17
NUT,STEERING STEM HEA
92015-1069
$11.23
18
WASHER,16X41X4
92022-230
$11.93
19
BEARING-ROLLER,LWR,32006JR RS
92116-1008
$75.31
20
BEARING-ROLLER,HR320/28XJ
92116-1009
$36.32
21
BOLT-UPSET,6X12
112G0612
$1.45
22
WASHER SPRING 6MM
461F0600
$0.69
23
WASHER PLAIN 6MM
411B0600
$2.84
24
BOLT,HEX HEAD,6X43.5
92001-1312
$2.42
25
WASHER,6.5X16X2
92022-1565
$3.92
26
PLUG,FRAME END
92066-1027
$7.33
27
PLUG,FRAME END,12X13
92066-1034
$4.65
28
COVER,SEAT LOCK
14025-1246
Unavailable
28
COVER,SEAT LOCK
14025-1246
Unavailable
