Description

Price

1

BRACKET,COWLING

11034-1485

Unavailable

2

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

3

WASHER SPRING 8MM

461F0800

$0.40

4

WINDSHIELD

39154-1003

$476.51

5

COWLING,L.H.R.D.RED

55028-5006-D6

$212.08

6

NUT,LOCK,8MM

92015-1124

$5.42

7

SCREW,6X28

92009-1066

$3.18

8

WASHER,6.5X16X1

92022-1143

$3.92

9

COLLAR,HEAD LAMP FITT

92027-1199

$4.84

10

DAMPER,COWLING FITTING

92075-1179

$13.71

11

DAMPER,COWLING FITT

92075-1190

$5.32

12

MARK,COWLING&TRUNK

56018-1131

$25.11

13

TRIM,UPPER COWLING

53044-1014

$25.23

14

SEAL,CWLG STRG COVER

92093-1026

$16.35

15

COVER

14025-1177

Unavailable

16

DAMPER

92075-1248

$12.94

17

DAMPER WIND SHIELD

92075-1247

$22.77

18

DUCT

14073-1045

$32.58

18

DUCT

14073-1046

$32.58

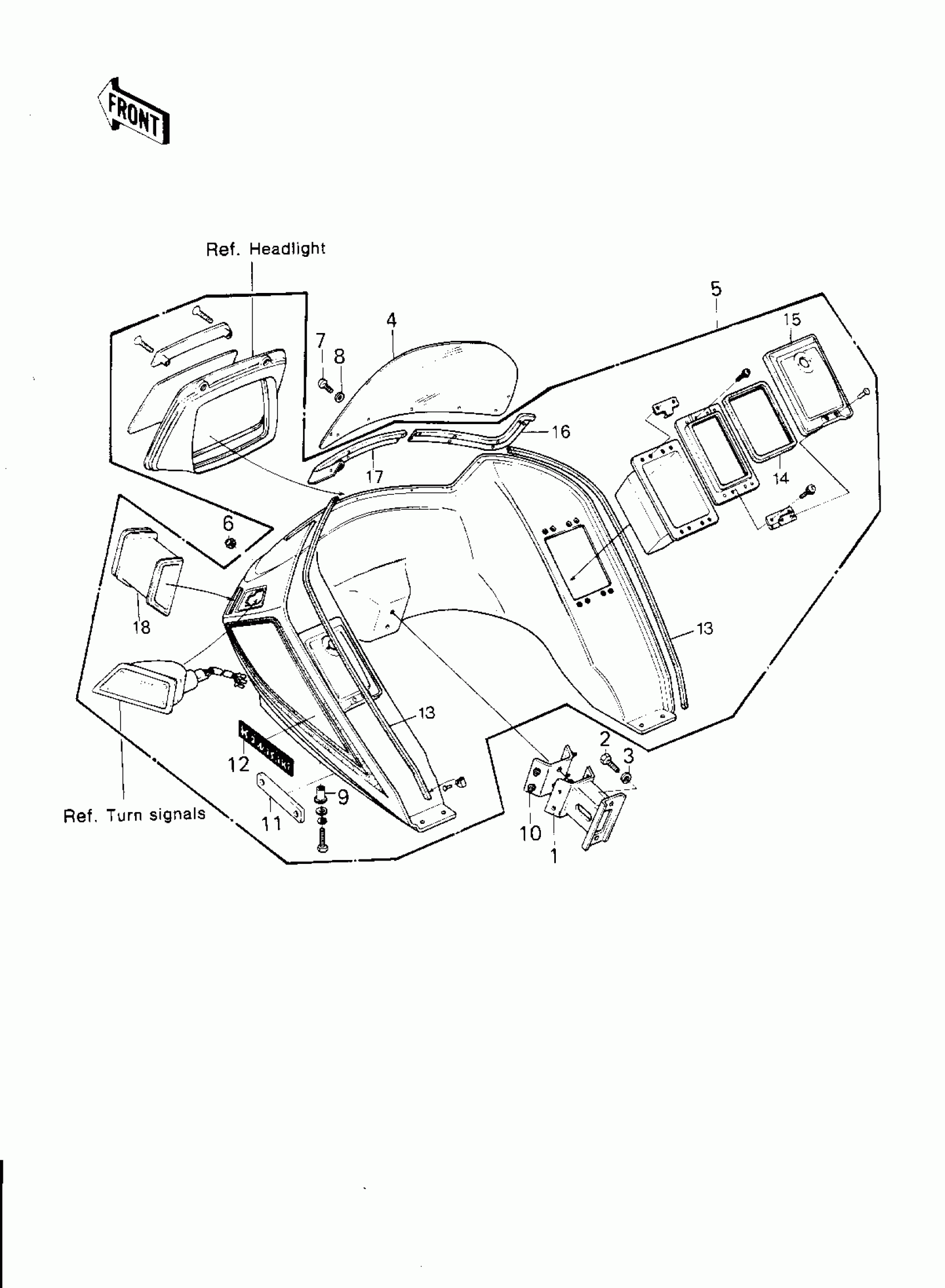

Kawasaki KZ1300-B2 FAIRING Diagram

BRACKET,COWLING

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

WINDSHIELD

COWLING,L.H.R.D.RED

NUT,LOCK,8MM

SCREW,6X28

WASHER,6.5X16X1

COLLAR,HEAD LAMP FITT

DAMPER,COWLING FITTING

DAMPER,COWLING FITT

MARK,COWLING&TRUNK

TRIM,UPPER COWLING

SEAL,CWLG STRG COVER

COVER

DAMPER

DAMPER WIND SHIELD

DUCT

DUCT
