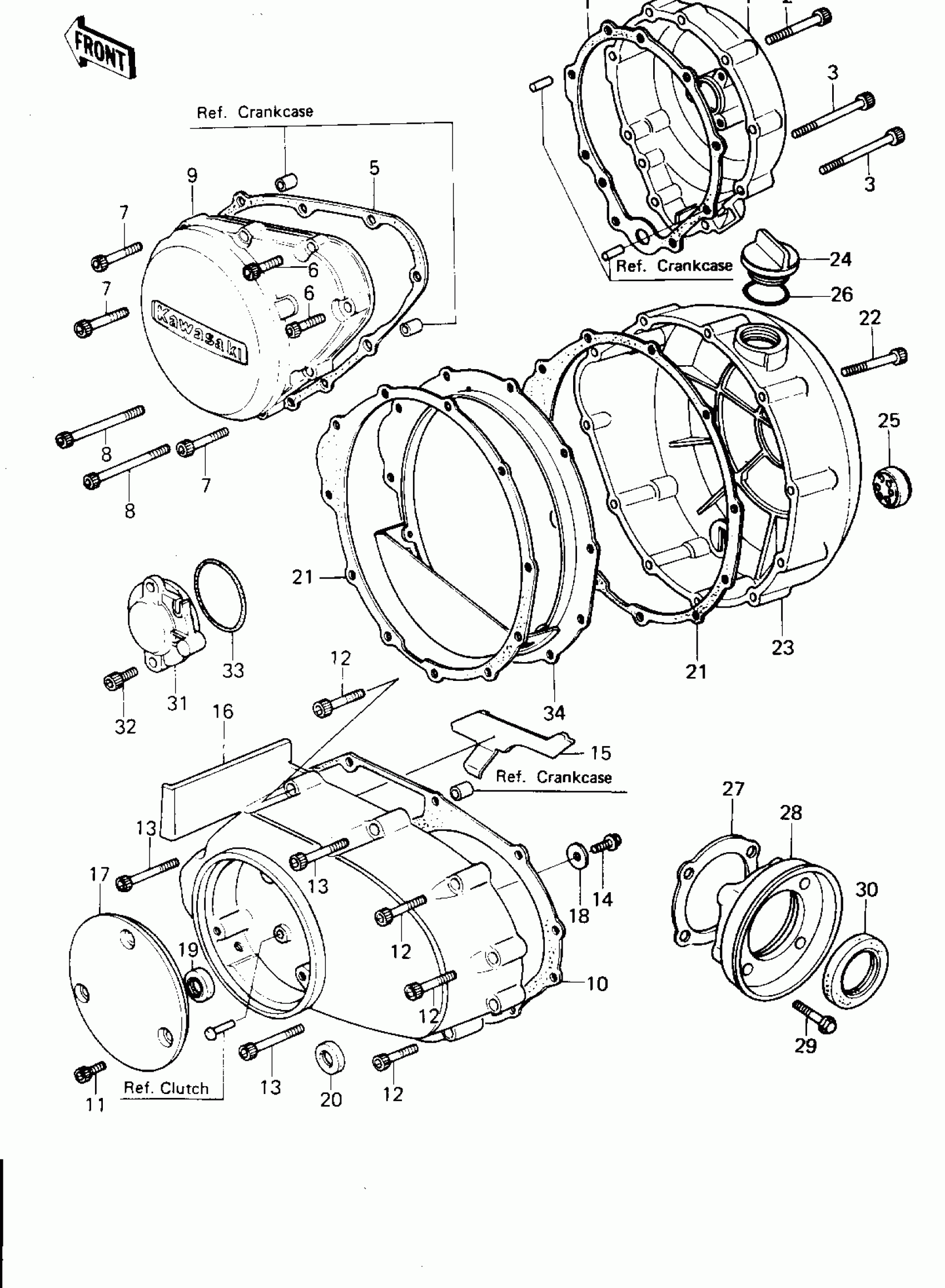

Kawasaki KZ1300-B2 ENGINE COVERS Diagram

#

Description
Price

1

GASKET,GENERATOR COV

11009-1189

Unavailable

2

BOLT-SOCKET,6X35

120P0635

$1.92

3

BOLT,SOCKET,6X50

120P0650

$4.24

4

COVER,GENERATOR

14041-1006

Unavailable

5

GASKET,ENGINE COVER,LH

11009-1090

Unavailable

6

BOLT-SOCKET,6X25

120P0625

$1.92

7

BOLT-SOCKET,6X35

120P0635

$1.92

8

BOLT,SOCKET,6X50

120P0650

$4.24

9

COVER,L.H ENGINE

14025-1501

Unavailable

10

GASKET,MISSION COVER

11009-1091

Unavailable

11

BOLT-SOCKET,6X12

120P0612

$1.60

12

BOLT-SOCKET,6X35

120P0635

$1.92

13

BOLT-SOCKET,6X45

120P0645

$1.92

14

BOLT,FLANGED,6X14

130G0614

$1.17

15

PLATE,BAFFLE,BREATHER

13169-1131

Unavailable

16

COVER,MISSION

14025-1063

Unavailable

17

COVER,RELEASE

14025-1314

Unavailable

18

WASHER

42046-008

$4.38

19

SEAL-OIL,TC14244.8

92049-1037

$9.89

20

SEAL-OIL,TB13225.5

92051-005

$7.74

21

GASKET,CLUTCH COVER

11009-1092

Unavailable

21

GASKET,CLUTCH COVER

11009-1092

Unavailable

22

BOLT-SOCKET,6X45

120P0645

$1.92

23

COVER,CLUTCH

14032-1045

Unavailable

23

COVER,CLUTCH

14032-1053

Unavailable

24

CAP-OIL FILLER

16115-013

$19.96

25

GAUGE,OIL LEVEL

52005-1017

Unavailable

26

RING-O,31.5X2.6

92055-049

$4.31

27

GASKET,BEARING CAP

11009-1159

$11.48

28

CAP-BEARING,OUTLET SHAFT

14022-1005

Unavailable

29

BOLT,FLANGED,6X28

92003-202

Unavailable

30

SEAL-OIL,TC35527

92049-1038

$17.95

31

CAP,TIMING SPROCKET

11012-1060

Unavailable

32

BOLT-SOCKET,6X14

120P0614

$3.82

33

O RING,45MM

670B3045

$3.71

34

BAFFLE

18020-1020

$53.85
