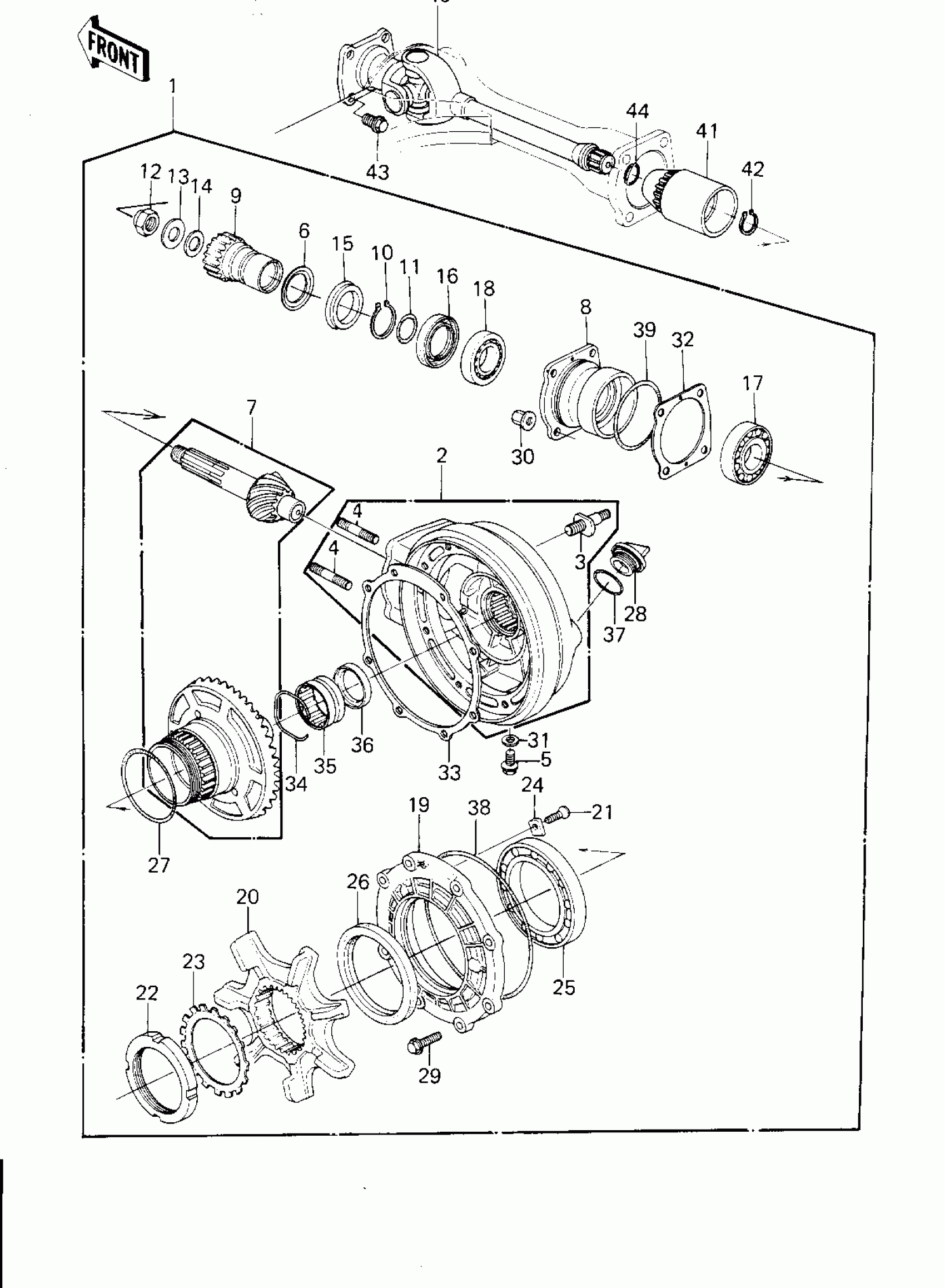

Kawasaki KZ1300-B2 DRIVE SHAFT/FINAL GEARS Diagram
#
1
GEAR ASSY,FINAL
13101-1007
Unavailable
2
CASE ASSY,FINAL GEAR
11021-1009
Unavailable
3
STUD
92004-1020
$29.95
4
STUD,10X31.5
92004-1021
$5.83
5
BOLT-FLANGED,8X12
130B0812
$0.77
6
PLATE,OIL SEAL GUIDE
13169-1129
Unavailable
7
GEAR SET,FINAL BEVEL
13101-5026
Unavailable
8
HOUSING,BEARING,FINAL
41046-1008
$155.02
9
COUPLING PINION SHAFT
42034-1008
$193.26
10
CIRCLIP-TYPE-C,36MM
480J3600
$4.71
11
O RING,25MM
671B2525
$5.00
12
NUT,16MM
92015-1059
Unavailable
13
WASHER,16X32X3.2
92022-1105
$11.49
14
SHIM
92025-1027
Unavailable
14
SHIM
92025-1028
Unavailable
14
SHIM
92025-1029
Unavailable
14
SHIM
92025-1030
Unavailable
14
SHIM
92025-1031
Unavailable
14
SHIM
92025-1032
Unavailable
14
SHIM
92025-1033
Unavailable
14
SHIM
92025-1034
Unavailable
14
SHIM
92025-1035
Unavailable
14
SHIM
92025-1036
Unavailable
15
OIL SEAL,OS-50369HS
92049-1023
Unavailable
16
OIL SEAL,SC35558
92049-1024
Unavailable
17
BEARING-ROLLER,4T30305C
92116-1002
$39.77
18
BEARING-ROLLER,4T30205
92116-1003
$36.32
19
COVER,FINAL GEAR CASE
14025-1066
Unavailable
20
COUPLING,REAR HUB
42034-1007
$225.97
21
SCREW,COUNTERSNK,6X16
92009-1041
$3.35
22
NUT,75M/M,RING GEAR
92015-1060
$35.76
23
WASHER,75M/M,RING GER
92022-1106
$11.75
24
WASHER,BEARING STOPPR
92022-1112
$4.04
25
BEARING,BALL,16016
92045-1020
$116.92
26
SEAL-OIL,S-901159HS
92049-1026
$40.70
27
"0" RING,75MM
92055-1031
Unavailable
28
CAP
16115-1003
Unavailable
29
BOLT,FLANGED,8X28
92001-1095
$6.57
30
NUT,FLANGED,10MM
92015-1415
$4.69
31
WASHER,8.2X16X1
92022-1086
$3.92
32
SHIM,73X0.6
92025-1037
Unavailable
32
SHIM,73X0.9
92025-1038
Unavailable
32
SHIM,73X1.2
92025-1039
Unavailable
32
SHIM,73X0.1
92025-1040
Unavailable
32
SHIM,73X0.15
92025-1041
Unavailable
32
SHIM,73X0.2
92025-1042
Unavailable
32
SHIM,73X0.3
92025-1043
Unavailable
33
SHIM,168X0.6
92025-1045
Unavailable
33
SHIM,168X0.9
92025-1046
Unavailable
33
SHIM,168X1.2
92025-1047
Unavailable
33
SHIM,168X0.1
92025-1048
Unavailable
33
SHIM,168X0.15
92025-1049
Unavailable
33
SHIM,168X0.2
92025-1050
Unavailable
33
SHIM,168X0.3
92025-1051
Unavailable
34
RING,SNAP
92033-1020
Unavailable
35
BEARING
92046-1020
Unavailable
36
SEAL-OIL,S-35477HS
92049-1025
$14.90
37
RING-O,31.5X2.6
92055-049
$4.31
38
"0" RING,159MM
92055-1030
Unavailable
39
RING-O,67MM
92055-1032
Unavailable
40
SHAFT ASSY,PROPELLER
39158-1001
$378.09
41
COUPLING,PROP SHAFT
42034-1009
$162.45
42
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
43
BOLT,FLANGED,12X15
92001-1139
Unavailable
44
RING-O,20.5MM
92055-1029
Unavailable
