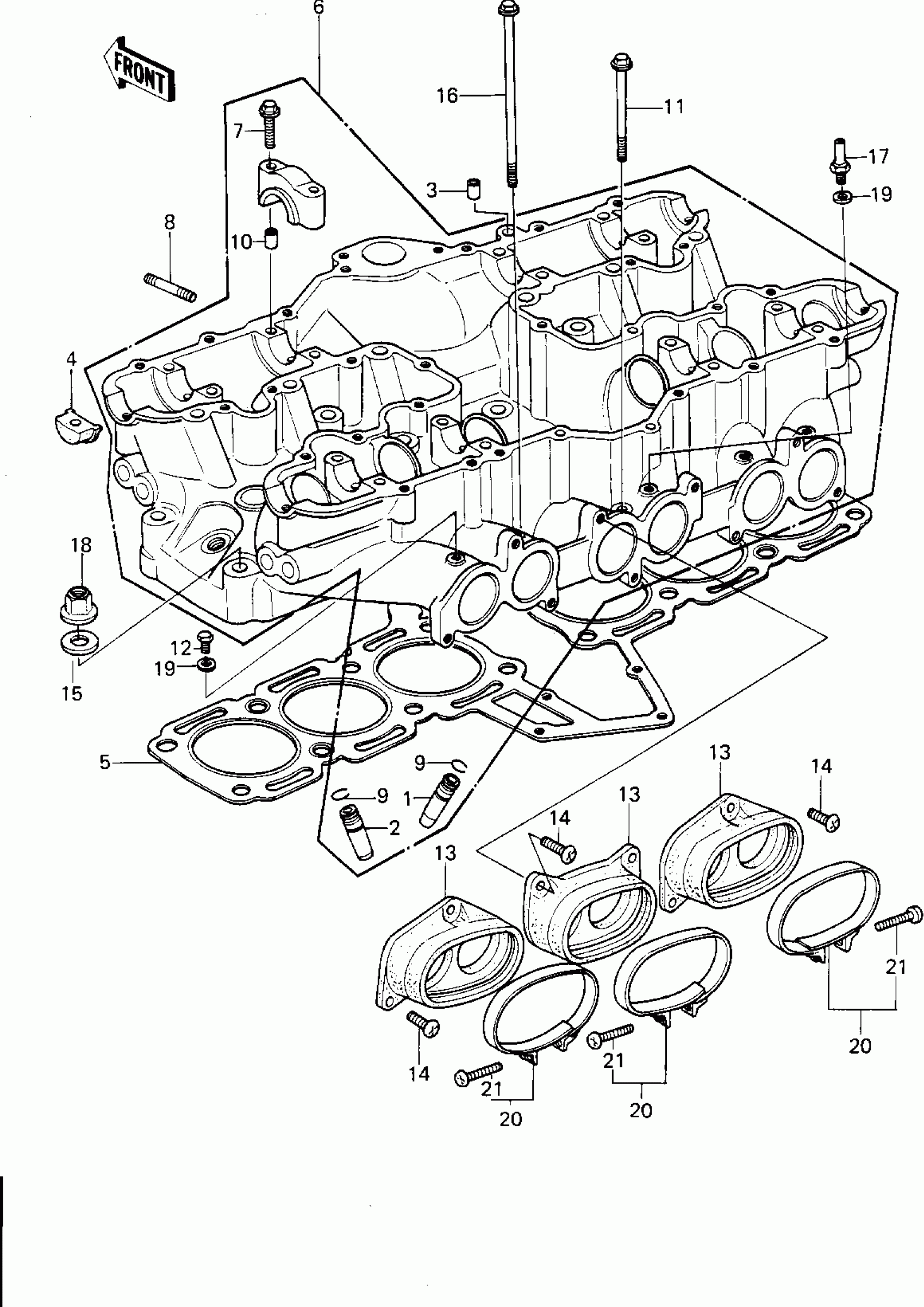

Kawasaki KZ1300-B2 CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE-VALVE,INTAKE

12013-009

$27.29

2

GUIDE-VALVE,EXHAUST

49002-1002

$24.01

3

PIN,DOWEL,6.3X8X14

92042-007

$5.70

4

PLUG,CAMSHAFT,

92066-1030

$17.85

5

GASKET-HEAD,CYLINDER

11004-1014

Unavailable

6

HEAD,CYLINDER

11008-1002

Unavailable

7

BOLT,FLANGED,6X45

92003-092

$7.58

8

STUD,6X27

92004-066

$5.17

9

RING-SNAP,VALVE GUIDE

92036-023

$1.49

10

PIN,DOWEL,6.3X8X14

92042-007

$5.70

11

BOLT,FLANGED,6X65

130G0665

Unavailable

12

BOLT-FLANGED,6X8

130N0608

Unavailable

13

HOLDER-CARBURETOR

16065-1016

Unavailable

14

SCREW-PAN-CROS,6X16

220B0616

Unavailable

15

WASHER-PLAIN,10MM

411B1000

Unavailable

16

BOLT,HEX HEAD,6X161

92001-1302

Unavailable

17

BOLT,VACUUM

92001-1143

Unavailable

18

NUT,FLANGED CAP,10MM

92015-076

$13.08

19

WASHER,6.2X11X1

92022-304

$3.65

20

CLAMP,CARBURETOR HOLDER

92037-1119

Unavailable

21

SCREW,PAN HEAD,5X30

92011-032

Unavailable
