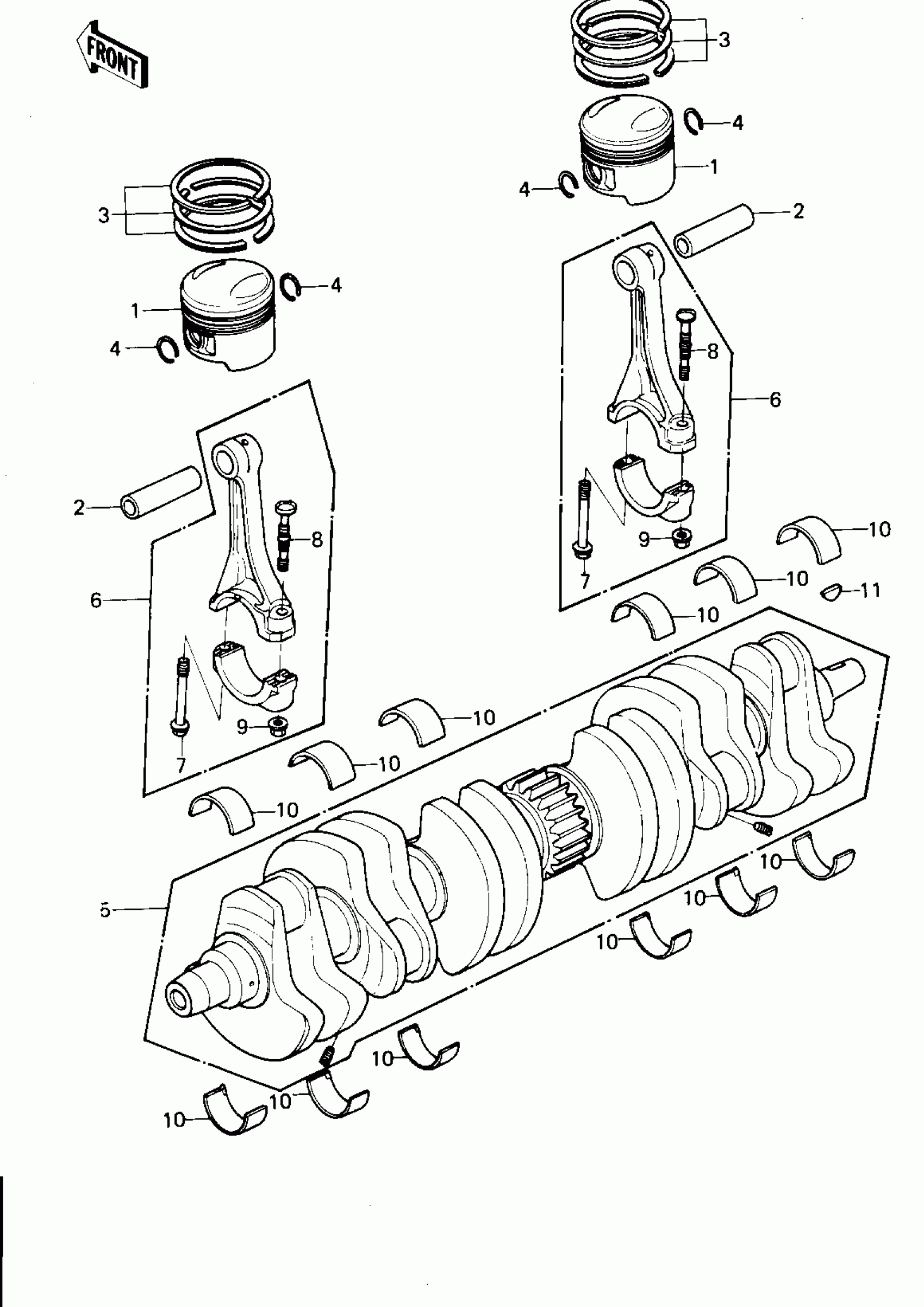

Kawasaki KZ1300-B2 CRANKSHAFT/PISTONS Diagram

#

Description
Price

1

PISTON-ENGINE,STD

13001-1113

Unavailable

1

PISTON-ENGINE L,O/S

13029-1061

Unavailable

2

PIN-PISTON

13002-032

Unavailable

3

RING-SET-PISTON,STD

13008-5059

$98.70

3

RING-SET-PISTON L,O/S 0.50

13025-5025

Unavailable

4

RING-SNAP

92036-005

$4.07

5

CRANKSHAFT-COMP SET

13031-5005

Unavailable

5

CRANKSHAFT-COMP SET

13031-5005

Unavailable

6

ROD-ASSY-CONNECTING

13251-1051-JJ

Unavailable

6

CONNECTING ROD ASSY,H

13251-1006-HH

Unavailable

6

CONNECTING ROD ASSY,I

13251-1006-II

Unavailable

7

BOLT,CONNECTING ROD

92001-1120

$6.18

8

BOLT

92001-169

Unavailable

9

NUT,FLANGED,8MM

92015-1311

$7.34

10

BUSHING,CONNECTING ROD,GREEN

92028-1049

$20.89

10

BUSHING,CONNECTING ROD,BLACK

92028-1050

Unavailable

10

BUSHING,CONNECTING ROD,BROWN

92028-1051

Unavailable

11

KEY,WOODRUFF

92038-001

$4.96
