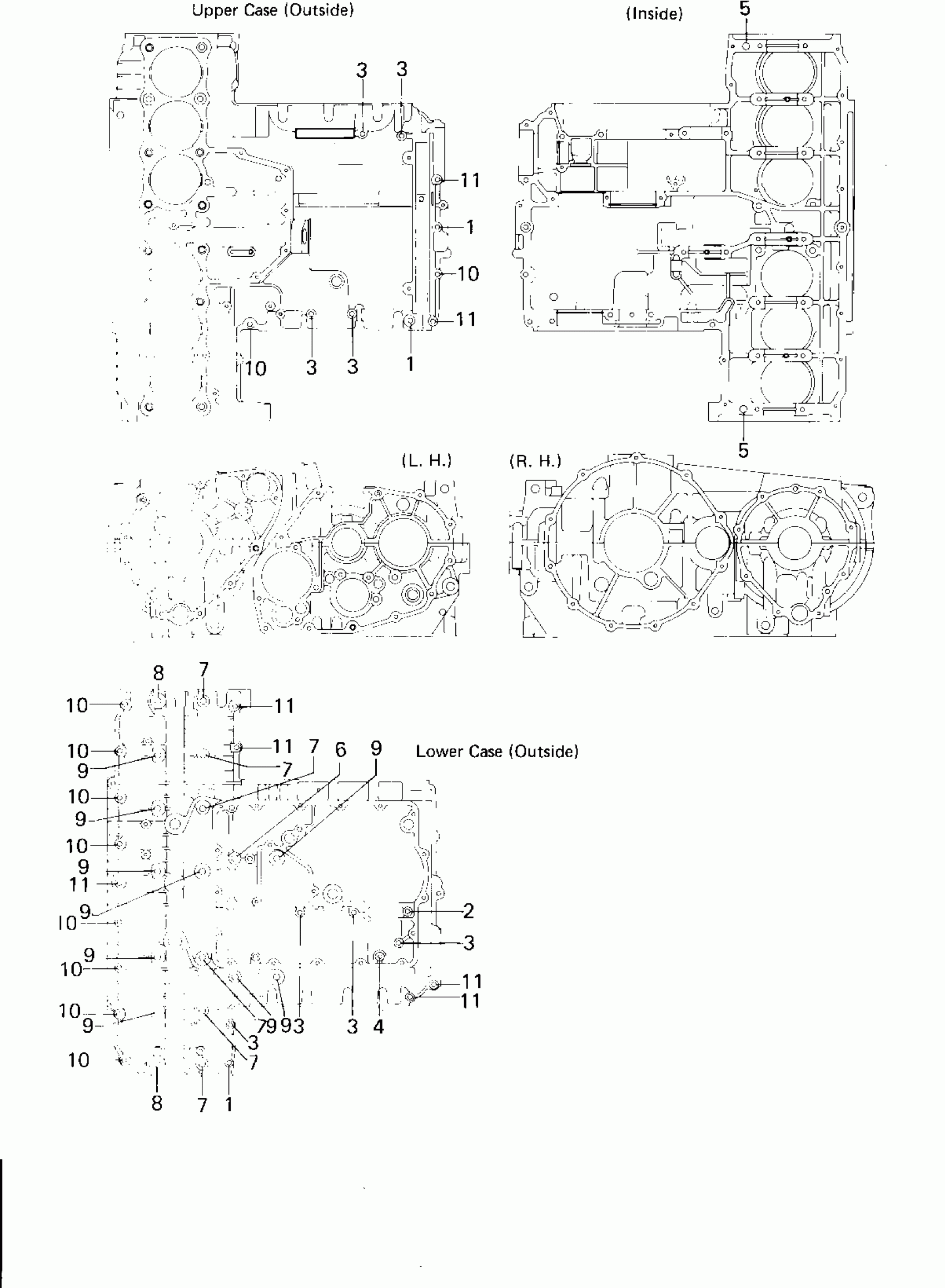

Kawasaki KZ1300-B2 CRANKCASE BOLT & STUD PATTERN Diagram

#

Description

Price

1

BOLT,FLANGED,6X65

130G0665

Unavailable

2

BOLT,FLANGED,6X85

130G0685

Unavailable

3

BOLT,FLANGED,6X85

130G0685

Unavailable

4

NOZZLE,SILVER

92062-015

$3.05

5

PIN-DOWEL,6.5X10X12

552B1012

Unavailable

6

BOLT,TENSION,8X130

92001-1121

$10.03

7

BOLT,TENSION,8X105

92001-1185

$10.93

8

BOLT-FLANGED,8X95

130P0895

Unavailable

9

BOLT-FLANGED,8X95

130P0895

Unavailable

10

BOLT,FLANGED,6X38

92003-116

$5.63

11

BOLT-FLANGED,6X50

130G0650

Unavailable
