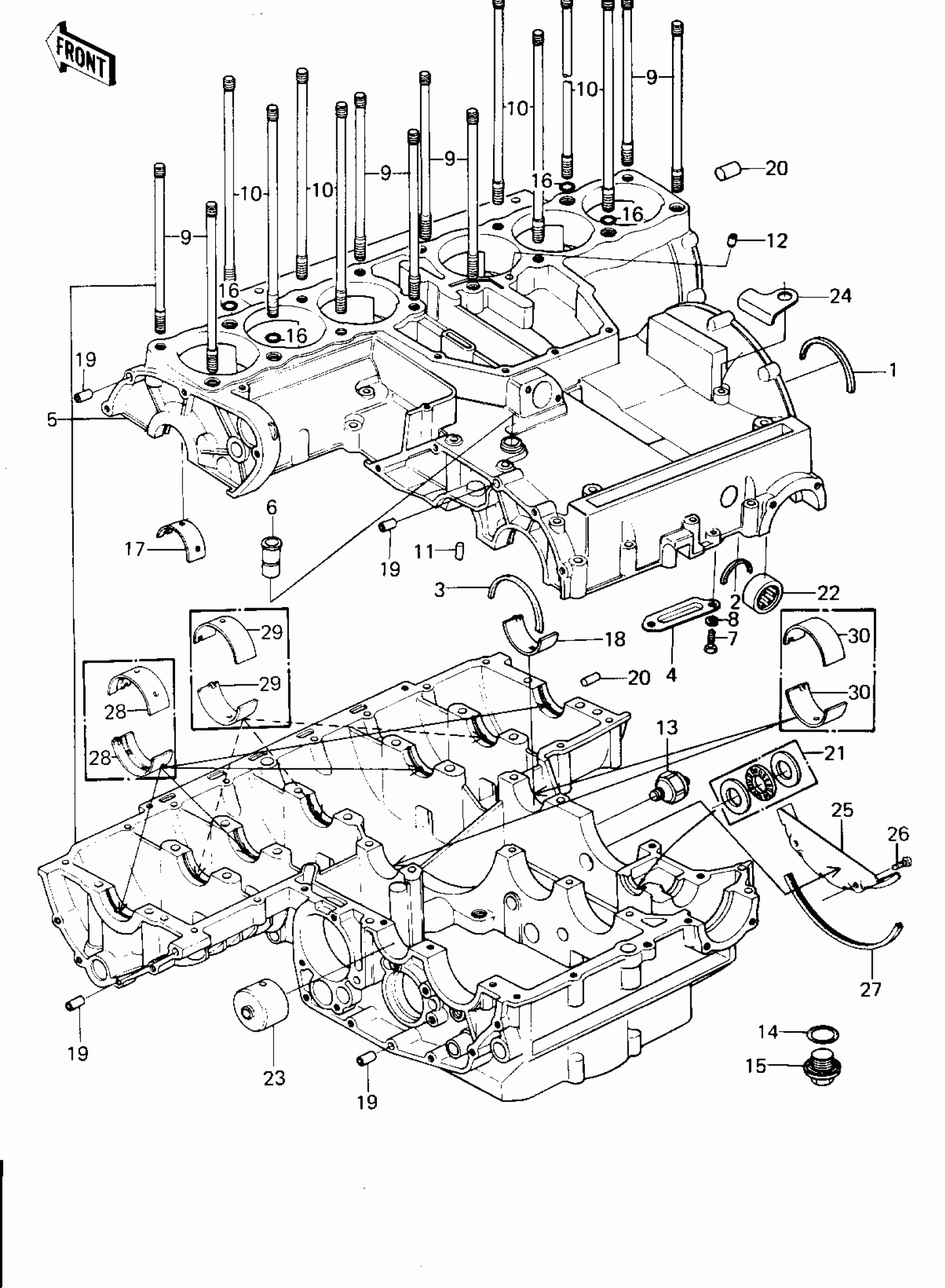

Kawasaki KZ1300-B2 CRANKCASE Diagram

#

Description
Price

1

RING-POSITION,T=1.90

14013-013

Unavailable

1

RING-POSITION,T=1.98

14013-1004

Unavailable

2

RING,POSITION

14013-1002

Unavailable

3

RING-POSITION,T=1.98

14013-1004

$4.96

4

RECEIVER-OIL

13045-1002

Unavailable

5

CRANKCASE SET

14001-5058

Unavailable

5

CRANKCASE SET

14001-5058

Unavailable

6

FITTING,BREATHER

14067-006

$21.09

7

BOLT-UPSET,6X16

112G0616

$1.10

8

WASHER SPRING 6MM

461F0600

$0.69

9

STUD,10X153

92004-062

$18.74

10

STUD,10X195

92004-1019

$12.40

11

PIN,DOWEL,6X16

92042-016

$5.00

12

NOZZLE,BLACK

92062-011

$8.58

13

SWITCH ASY,OIL PRSSUR

16144-006

Unavailable

14

O RING,22MM

670B2022

$4.69

15

PLUG,OIL DRAIN

92001-1183

$54.58

16

O RING,12MM

670B2012

$3.23

17

BUSHING,MAIN JOURNAL,BROWN

92028-1105

Unavailable

18

BUSHING,MAIN JOURNAL,BROWN

92028-1108

Unavailable

19

PIN,DOWEL,6.3X8X14

92042-007

$5.70

20

PIN,DOWEL,6X16

92042-016

$5.00

21

BEARING,N,NTBGW1528

92046-1017

$28.90

22

BEARING,N,TR-22301302

92046-1018

$43.93

23

RACE,DRIVE SHAFT,LH

92048-1008

$53.78

24

CLAMP,CABLE

92037-1152

$4.16

25

BAFFLE

18020-1022

$13.69

26

SCREW PAN HEAD 6X10

220B0610

$3.14

27

SEAL

92093-1040

$4.71

28

BUSHING,MAIN JOURNAL,BLUE

92028-1103

Unavailable

28

BUSHING,MAIN JOURNAL,BLACK

92028-1104

Unavailable

28

BUSHING,MAIN JOURNAL,BROWN

92028-1105

Unavailable

29

BUSHING,MAIN JOURNAL,BLUE

92028-1106

Unavailable

29

BUSHING,MAIN JOURNAL,BLACK

92028-1107

Unavailable

29

BUSHING,MAIN JOURNAL,BROWN

92028-1108

Unavailable

30

BUSHING,MAIN JOURNAL,BROWN

92028-1108

Unavailable
