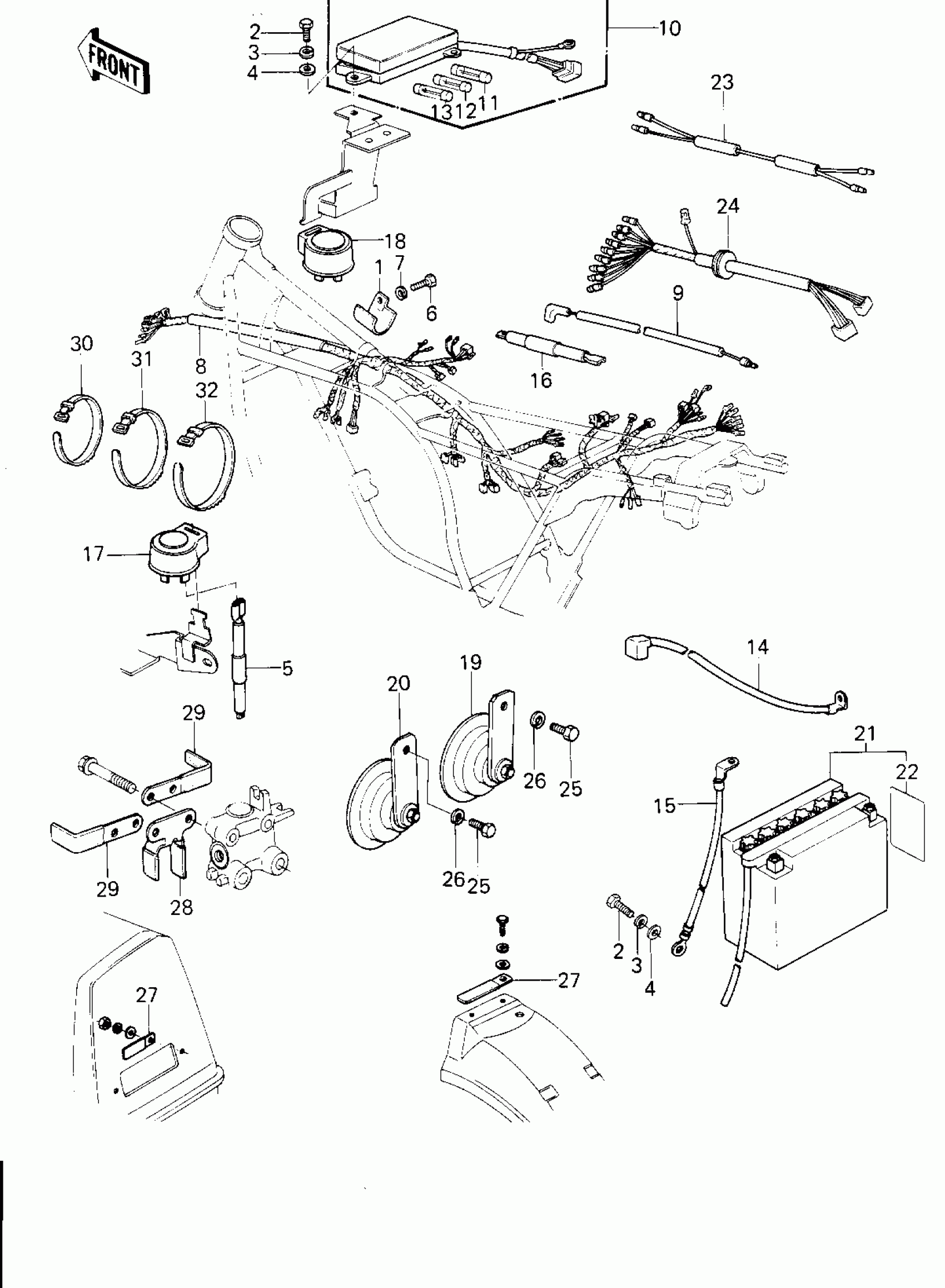

Kawasaki KZ1300-B2 CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

GUIDE,MAIN HARNESS

13070-1022

Unavailable

2

BOLT-UPSET,6X12

112G0612

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

WASHER PLAIN 6MM

411B0600

Unavailable

5

REGULATOR

21066-026

Unavailable

6

BOLT,6X10

112G0610

Unavailable

7

WASHER SPRING 6MM

461F0600

Unavailable

8

WIRING HARNESS,MAIN

26001-1172

$221.31

8

WIRING HARNESS,MAIN

26001-1172

$221.31

9

WIRING HARNESS,SUB

26001-1064

$7.85

10

FUSE ASSY

26004-1009

Unavailable

11

FUSE,2A,L=25M/M

26006-1004

$4.00

12

FUSE,10A,L=25

26006-003

$3.59

13

FUSE,30A,L=25

26006-1005

Unavailable

14

WIRE,STARTER LEAD

26011-1037

$27.78

15

WIRE,BATTERY GROUND

26011-1038

$44.70

16

REGULATOR

21066-026

Unavailable

17

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

18

RELAY,TURN SIGNAL

27002-016

Unavailable

19

HORN,R.H

27003-1016

$78.05

20

HORN,L.H

27003-1025

$54.08

21

YUA BAT Y50-N18L-A2

26012-1012

$101.74

22

LABEL-WARNING,BATTERY

56040-1036

Unavailable

23

WIRING HARNESS,SUB

26001-1094

$28.86

24

WIRING HARNESS,SUB

26001-1093

$36.92

25

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

26

WASHER SPRING 8MM

461F0800

Unavailable

27

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

28

CLAMP,MAIN HARNESS

92037-1136

$3.08

29

CLAMP,MAIN HARNESS

92037-1137

$3.08

30

BAND,L=123

92072-030

$3.81

31

BAND,L=149

92072-031

$3.81

32

BAND,L=186

92072-056

$3.81
