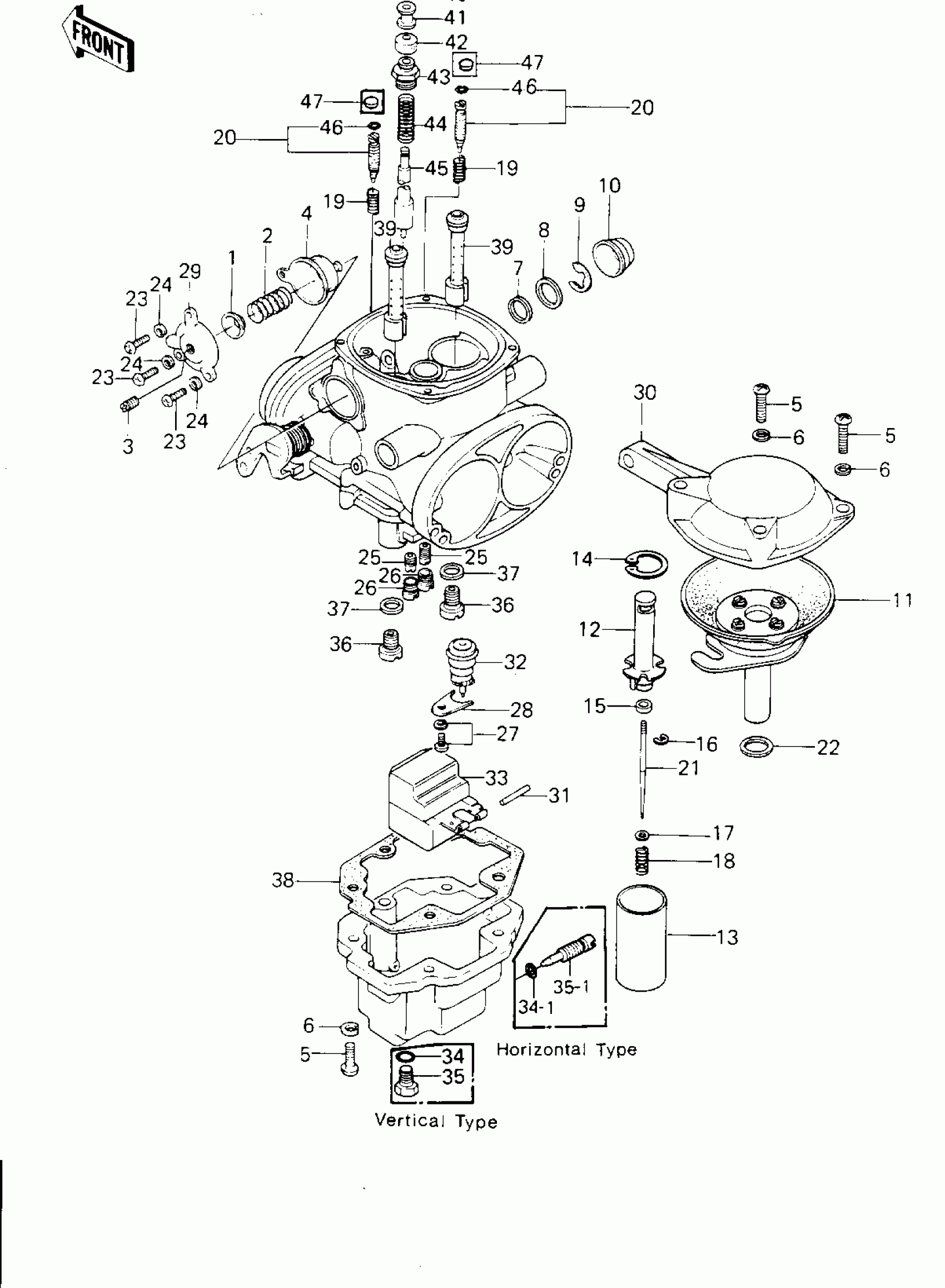

Kawasaki KZ1300-B2 CARBURETOR PARTS Diagram
#
1
RETAINER,DPHRGM SPRNG
43027-1004
$11.17
2
SPRING,RICHER DPHRGM
92081-1156
$4.68
3
SCREW,SLOTTED
45007-1001
$5.11
4
DIAPHRAGM,RICHER
43028-1017
Unavailable
5
SCREW PAN HEAD 5X16
220B0516A
$2.06
6
WASHER SPRING 5MM
461F0500
$0.69
7
OIL SEAL
92093-1027
$7.95
8
WASHER,PLAIN
92022-1150
$4.69
9
CIRCLIP
92037-1140
$3.20
10
CAP,STEEL
39031-1002
$6.61
11
DIAPHRAGM ASSY,VACUUM
43028-1014
Unavailable
12
HOLDER,PISTON VALVE
13091-1056
Unavailable
13
VALVE,PISTON
16025-1029
$71.22
14
CIRCLIP
92033-1009
Unavailable
15
RING,JET NEEDLE
92027-1115
Unavailable
16
CLAMP,E-TYPE
16008-014
$9.64
17
WASHER,JET NEEDLE
92022-1123
$8.98
18
SPRING,JET NEEDLE
92081-1126
$8.36
19
SPRING,PILOT SCREW
16022-016
$9.10
20
SCREW,PILOT ADJUSTING
16014-1016
$33.69
21
JET NEEDLE,5P4
16009-1050
$25.40
22
WASHER,PLAIN,DURACON
92022-1155
Unavailable
23
SCREW PAN HEAD 4X10
220B0410
$2.30
24
WASHER SPRING 4MM
461F0400
Unavailable
25
PILOT JET,#42.5
92064-1024
$24.35
26
SCREW,HOLE PLUG
92066-1044
$11.28
27
SCREW-CLAMP
16033-014
Unavailable
28
PLATE, LOCK
13169-1190
Unavailable
29
COVER,COASTING RICHER
14025-1158
Unavailable
30
TOP,MXNG CHAMBER,L.H.
14025-1159
Unavailable
30
TOP,MXNG CHAMBER,CENT
14025-1160
Unavailable
30
TOP,MXNG CHAMBER,R.H.
14025-1161
Unavailable
31
PIN,FLOAT
16032-003
$6.57
32
FLOAT VALVE ASSY
16030-1005
Unavailable
33
FLOAT
16031-1006
Unavailable
34
"0" RING,MAIN JET COV
16038-016
$3.02
34-1
RING-O
92055-044
$10.38
35
BOLT,HEX HEAD,DRAIN
92066-1045
Unavailable
35-1
PLUG,DRAIN
92066-1064
$12.37
36
MAIN JET,#110R
92063-1038
$16.50
36
MAIN JET,#A105R
92063-1042
Unavailable
36
JET-MAIN NO 107.5R
92063-073
Unavailable
36
JET-MAIN NO 112.5R
92063-075
Unavailable
36
JET-MAIN NO 115R
92063-076
Unavailable
37
WASHER,MAIN JET
16034-001
$4.31
38
GASKET,FLOAT CHAMBER
11009-1148
Unavailable
39
NEEDLE JET,Y-8
16017-1038
$52.31
40
CIRCLIP
16076-003
$8.92
41
COLLAR
16073-014
$10.47
42
RUBBER CAP,STARTER PL
16036-017
Unavailable
43
CAP,STARTER PLUNGER
16012-1005
$23.31
44
SPRING,STARTER PLUNGR
92081-1163
$4.06
45
PLUNGER,STARTER
16016-1005
$56.29
46
GASKET,"O"RING
16038-022
$6.89
47
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
$5.05
