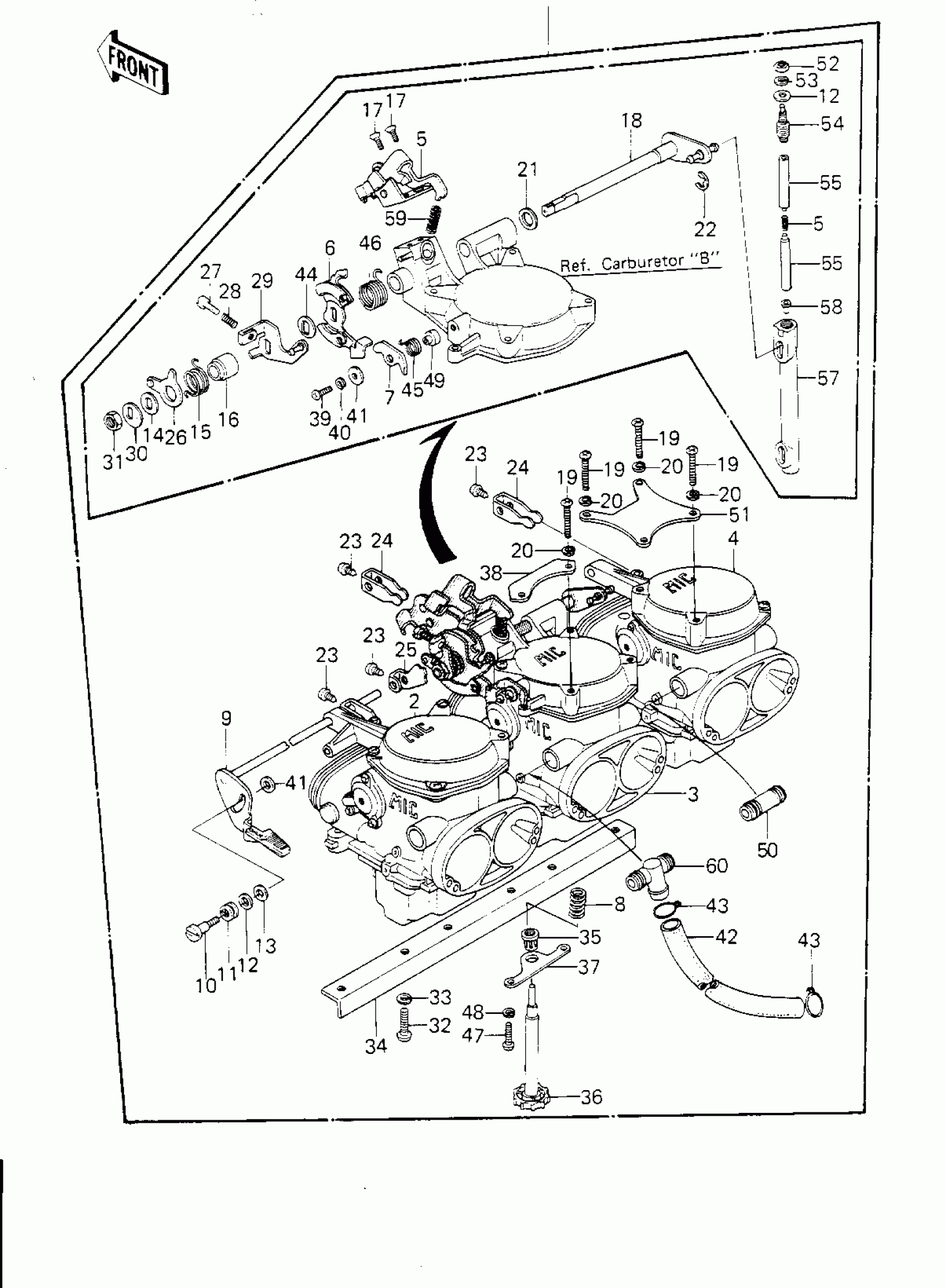

Kawasaki KZ1300-B2 CARBURETOR ASSY Diagram
#
1
CARBURETOR ASSY
16001-1211
$1,410.89
2
CARBURETOR,L.H
16001-1247
$490.80
3
CARBURETOR,CENTER
16001-1248
$513.96
4
CARBURETOR,R.H
16001-1249
$513.96
5
BRACKET,THRTTL PULLY
39184-1002
$54.89
6
PULLY,THROTTLE CABLE
13236-1016
Unavailable
7
LEVER,THRTTL STP SCRW
13168-1043
Unavailable
8
SPRING,THRTL STP SCRW
92081-1155
$2.42
9
SHAFT,STARTER PLUNGER
16041-1006
$57.15
10
SCREW
16046-005
Unavailable
11
SPRING,F
16040-009
Unavailable
12
WASHER,PLAIN
16039-020
Unavailable
13
WASHER,PLAIN,DURACON
92022-1147
$8.43
14
WASHER,PLAIN
92022-1148
$4.04
15
SPRING,CHOCK LINK
92081-1157
$8.54
16
COLLAR,CHOCK LINK
92027-1201
$8.22
17
SCREW CNTSNK HD 5X10
221B0510A
$3.67
18
SHAFT,THROTTLE LEVER
16041-1007
$64.71
19
SCREW PAN HEAD 5X30
220B0530
$3.41
20
WASHER SPRING 5MM
461F0500
$0.69
21
WASHER,PLAIN,DURACON
92022-1149
Unavailable
22
CIRCLIP,ROCKER ARM
92037-1139
$2.95
23
SCREW,PAN HEAD,5X7
16046-007
Unavailable
24
LEVER,STARTER PLUNGER
13168-1044
Unavailable
25
CAM,CHOCK LINK
13168-1045
Unavailable
26
LEVER,CHOCK LINK
13236-1017
Unavailable
27
ADJUSTER,THROTTLE LEV
16021-020
Unavailable
28
SPRING,ADJUSTER SCREW
92081-1160
$4.12
29
LEVER,THROTTLE
13236-1018
Unavailable
30
WASHER,LOCK
92022-1151
$3.90
31
NUT,8 M/M
315G0800
$3.22
32
SCREW PAN HEAD 6X12
220B0612
Unavailable
33
WASHER SPRING 6MM
461F0600
$0.69
34
PLATE,STAY
16065-1021
$40.46
35
BUSHING
92028-1071
Unavailable
36
SCREW,THROTTLE STOP
16021-1013
$71.71
37
BRACKET,THRT STP SCRW
11034-1514
Unavailable
38
STAY,CARBURETOR HEAD
16065-1022
$11.77
39
SCREW PAN HEAD 4X16
220B0416
$1.66
40
WASHER SPRING 4MM
461F0400
Unavailable
41
WASHER,PLAIN
92022-1152
$4.04
42
TUBE,7.5X12.5X225
92059-1123
Unavailable
43
CLAMP,TUBE
92037-1184
$1.45
44
WASHER,PLAIN
92022-1153
$4.06
45
SPRING,THRT STP LEVER
92081-1161
$8.72
46
SPRING,THRTTL PULLY
92081-1162
$10.43
47
SCREW-PAN-CROS
220B0518
$4.62
48
WASHER SPRING 5MM
461F0500
$0.69
49
COLLAR,STEPPED
92027-1203
$9.91
50
NIPPLE,FUEL
92005-1018
Unavailable
51
STAY,CARBURETOR HEAD
16065-1023
$14.55
52
NUT,5MM
16003-013
$9.40
53
WASHER SPRING 5MM
461F0500
$0.69
54
SCREW
45007-1002
$10.92
55
PIN
46102-1008
$7.39
56
SPRING
16040-026
$6.62
57
ROD THROTTLE
16149-1006
$28.41
58
SEAT-SPRING
16057-002
Unavailable
59
SPRING,CABLE PULLY
16040-022
Unavailable
60
FITTING,FUEL HOSE
92005-1019
Unavailable
