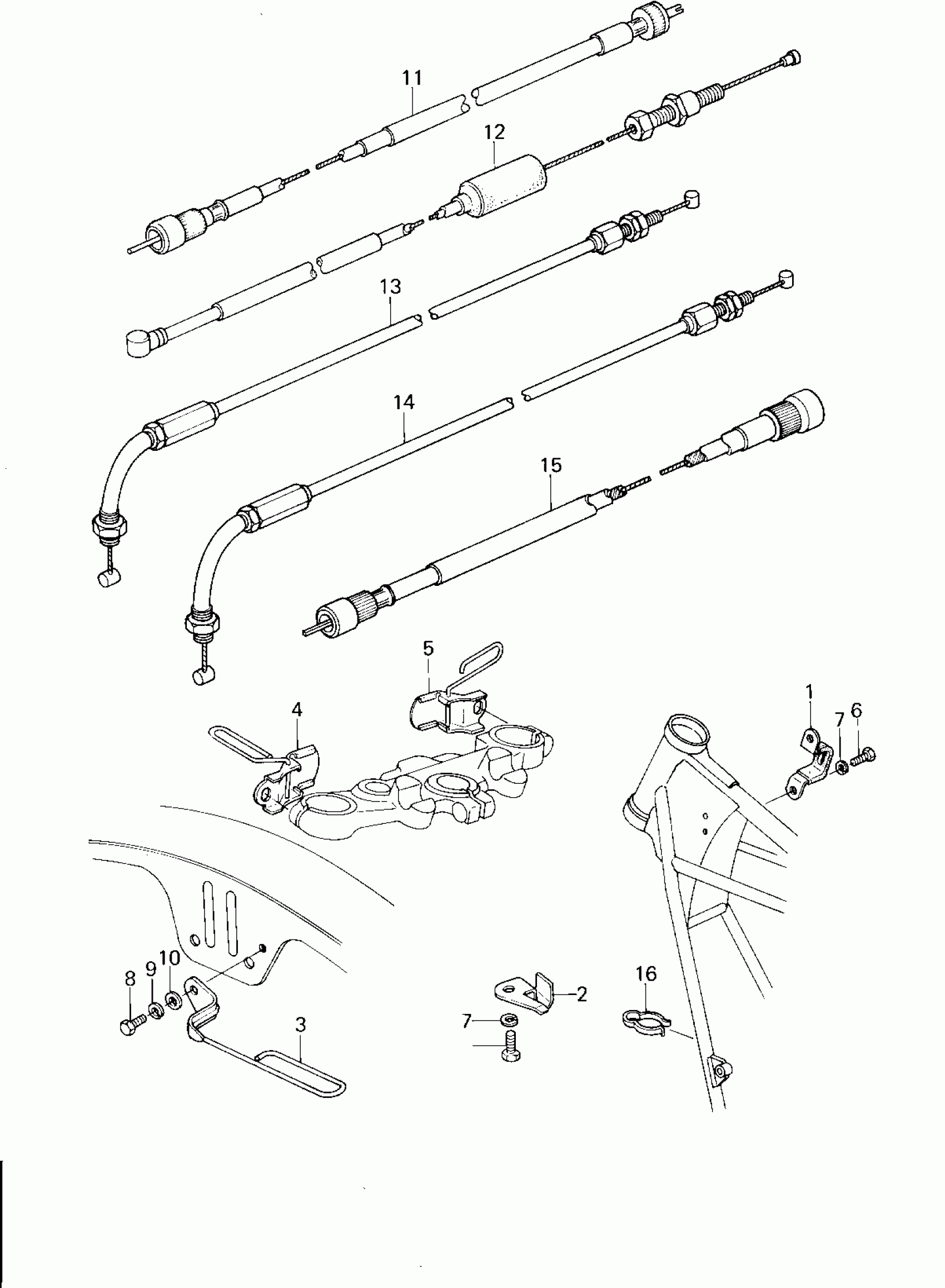

Kawasaki KZ1300-B2 CABLES Diagram

#

Description
Price

1

GUIDE,TACHOMETER CABL

13070-1012

Unavailable

2

GUIDE,CLUTCH CABLE

13070-1013

Unavailable

3

GUIDE,SPEEDOMETER

13070-1015

Unavailable

4

GUIDE,CLUTCH CABLE

13070-1016

Unavailable

5

GUIDE,THROTTLE CABLE

13070-1017

Unavailable

6

BOLT-UPSET,6X12

112G0612

$1.49

7

WASHER SPRING 6MM

461F0600

Unavailable

8

BOLT-UPSET,6X12

112G0612

$1.49

9

WASHER SPRING 6MM

461F0600

Unavailable

10

WASHER PLAIN 6MM

411B0600

Unavailable

11

CABLE,SPEEDOMETER

54001-1013

$34.35

12

CABLE,CLUTCH

54011-1027

$54.41

13

CABLE,THROTTLE

54012-1043

Unavailable

14

CABLE,THROTTLE

54012-1044

$87.56

15

CABLE,TACHOMETER

54018-1005

$36.51

16

CLAMP

92037-093

$11.37
