Description

Price

1

BRACKET,BRAKE PEDAL

11034-1694

Unavailable

2

NUT-CAP-SMALL,8MM

323N0800

$4.60

3

BOLT 6X22

112B0622

$3.48

4

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

5

NUT 6MM

311B0600

$0.93

6

PEDAL,BRAKE

43001-1024

$133.26

7

SHAFT,BRAKE

43004-1010

$26.81

8

WASHER SPRING 8MM

461F0800

$0.40

9

SPRING,BRAKE PEDAL RT

92081-1088

$8.60

10

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

11

WASHER PLAIN 10MM

410B1000

$0.58

12

WASHER PLAIN 8MM

411B0800

$0.93

13

WASHER SPRING 8MM

461F0800

$0.40

14

WASHER SPRING 10MM

461F1000

$0.67

15

PIN-COTTER,2.0X20

550D2020

$0.96

16

BOLT-HEX HEAD,10X46

92007-029

Unavailable

17

BOLT,HEX HEAD,10X25

92007-045

$10.62

18

PIN,6X17

92043-107

Unavailable

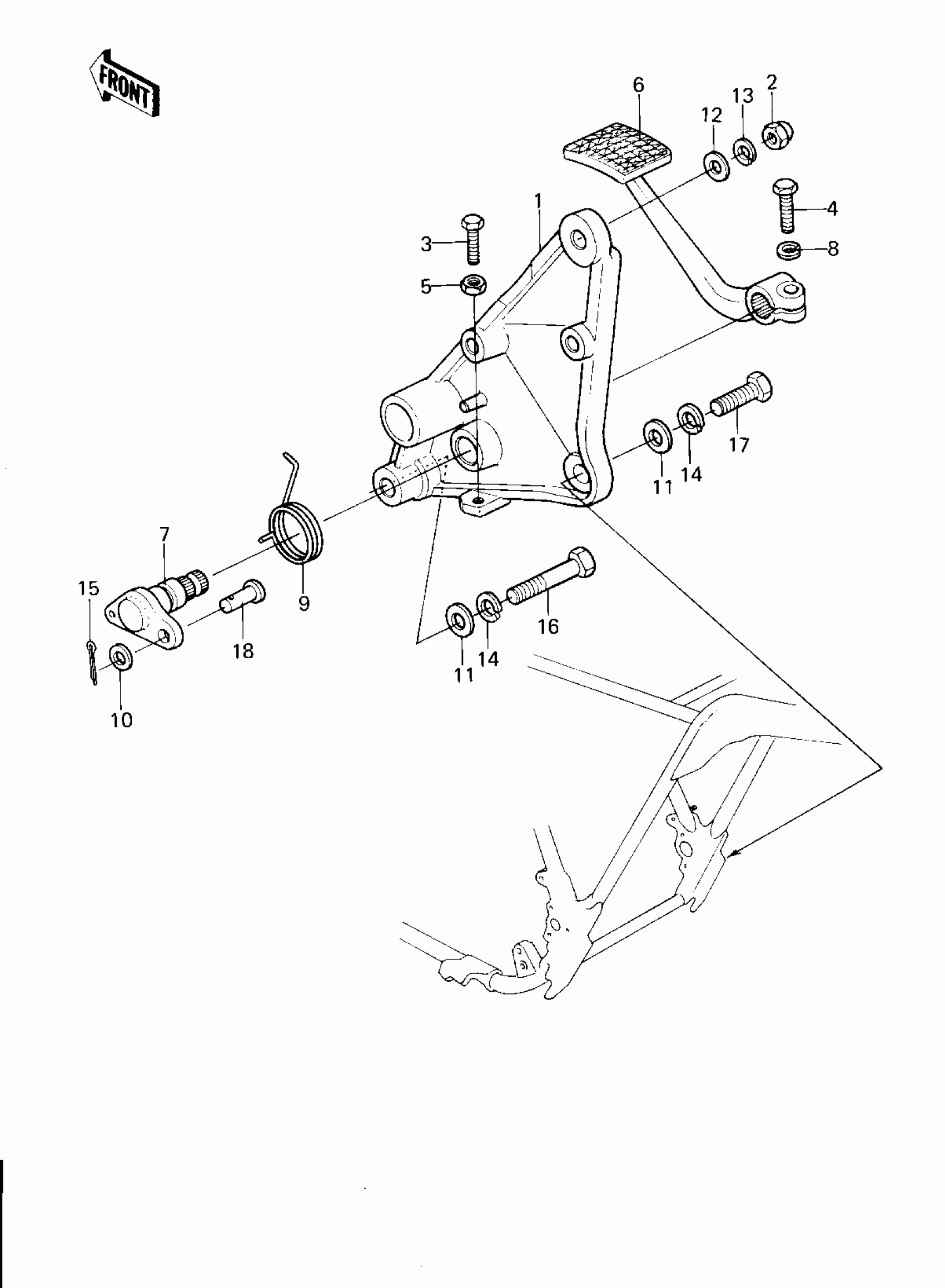

Kawasaki KZ1300-B2 BRAKE PEDAL Diagram

BRACKET,BRAKE PEDAL

NUT-CAP-SMALL,8MM

BOLT 6X22

BOLT-SMALL-UPSET 8X25

NUT 6MM

PEDAL,BRAKE

SHAFT,BRAKE

WASHER SPRING 8MM

SPRING,BRAKE PEDAL RT

WASHER-PLAIN-SMALL,6MM

WASHER PLAIN 10MM

WASHER PLAIN 8MM

WASHER SPRING 8MM

WASHER SPRING 10MM

PIN-COTTER,2.0X20

BOLT-HEX HEAD,10X46

BOLT,HEX HEAD,10X25

PIN,6X17
