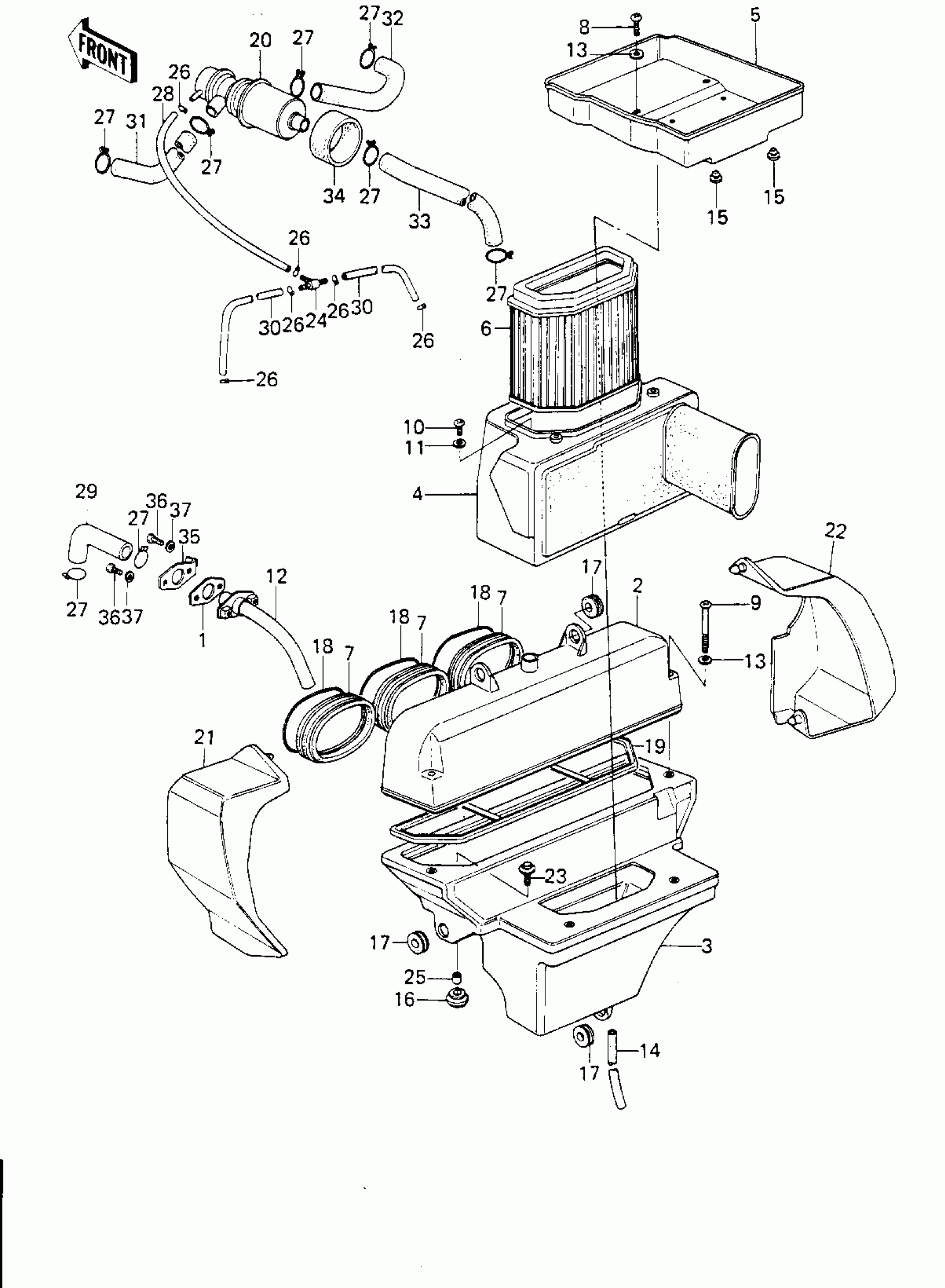

Kawasaki KZ1300-B2 AIR CLEANER Diagram
#
Description
Price
1
GASKET,BREATHER PIPE
11009-1097
Unavailable
2
CASE,AIR CLEANER,FRNT
11011-1021
Unavailable
3
CASE,AIR CLEANER LOWR
11011-1022
Unavailable
4
CASE,AIR CLEANER,REAR
11011-1023
Unavailable
5
CAP,AIR CLEANER
11012-1062
Unavailable
6
ELEMENT,AIR CLNR
11013-1014
Unavailable
7
DUCT,AIR CLEANER
14073-1015
$47.98
8
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
9
SCREW PAN HEAD 6X55
220B0655
$4.12
10
SCREW PAN HEAD 6X12
220B0612
Unavailable
11
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
12
PIPE,BREATHER
32032-1199
$26.75
13
WASHER PLAIN 6MM
411B0600
$2.84
14
TUBE,VINYL,6X200
700Q06200
Unavailable
15
PLUG,7X2
92074-028
$4.26
16
DAMPER,AIR CLEANER
92075-1124
$4.36
17
DAMPER,CLEANER COVER
92075-1126
$8.94
18
SPRING,CLEANER DUCT
92081-1150
Unavailable
19
SEAL,CLEANER LWR CASE
92093-1025
Unavailable
20
VALVE ASSY,AIR SWITNG
16126-1015
Unavailable
21
COVER-SIDE-SUB,AIR CL
36002-5499
Unavailable
22
COVER-SIDE-SUB,AIR CL
36002-5499
Unavailable
23
BOLT,6X25,W/WASHER
92001-1140
$5.01
24
FITTING,TUBE,T-TYPE
92005-1017
Unavailable
25
COLLAR 6.8X10X10.5
92027-120
$5.00
26
CLAMP,TUBE
92037-072
$7.22
27
CLAMP,TUBE
92037-213
$4.31
28
TUBE,VACUUM,LONG
92059-1162
$19.09
29
TUBE,BREATHER PIPE
92059-1053
Unavailable
30
TUBE,4X9X100
92059-1058
$19.09
31
TUBE,SWITCH VALVE,L.H
92059-1076
Unavailable
32
TUBE,SWITCH VALVE,R.H
92059-1077
Unavailable
33
TUBE,SWITH VALVE,CLNR
92059-1078
Unavailable
34
DAMPER,AIR SWITCHNG,V
92075-1195
$3.83
35
BRACKET,FUEL VALVE
11034-1561
Unavailable
36
BOLT-UPSET,6X16
112G0616
$1.10
37
WASHER SPRING 6MM
461F0600
$0.69
