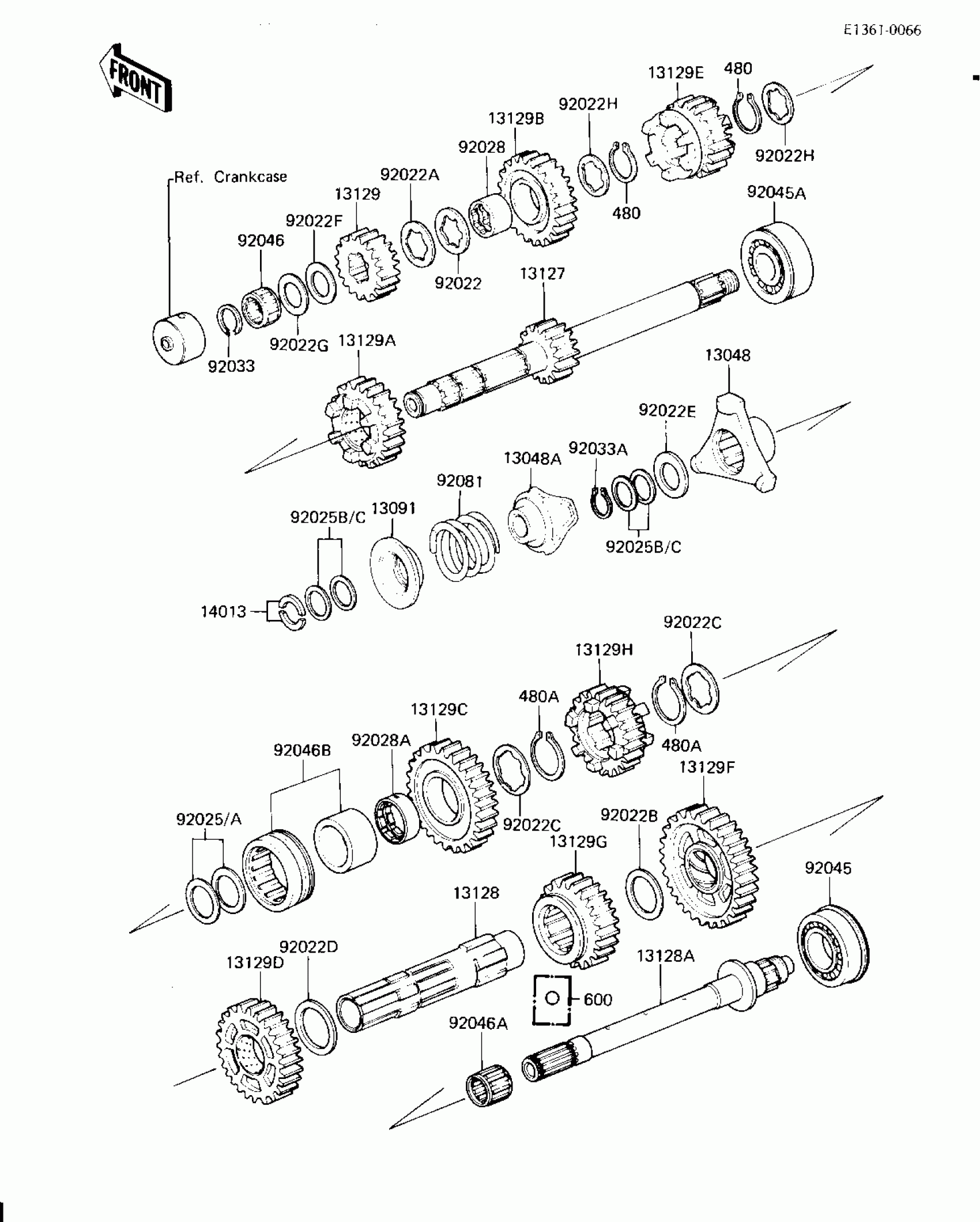

Kawasaki KZ1300-A4 TRANSMISSION Diagram
#
13048
CAM-DAMPER,FOLLOWER
13048-1010
Unavailable
13048A
CAM-DAMPER
13048-1011
Unavailable
13091
HOLDER,SPRING
13091-1091
Unavailable
13127
SHAFT-TRANSMISSION IN
13127-1050
Unavailable
13128
SHAFT-OUTPUT,OUTER
13128-1116
Unavailable
13128A
SHAFT,OUTPUT,21/16T
13128-1037
Unavailable
13129
2ND GEAR,DRIVE SHAFT
13129-1096
Unavailable
13129A
GEAR,INPUT 4TH,27T
13129-1098
Unavailable
13129B
GEAR,INPUT TOP,29T
13129-1592
Unavailable
13129C
2ND GEAR,DRIVEN SHAFT
13129-1101
Unavailable
13129D
3RD GEAR,DRIVEN SHAFT
13129-1102
Unavailable
13129E
GEAR,INPUT 3RD,25T
13129-1256
Unavailable
13129F
GEAR,OUTPUT LOW,39T
13129-1257
Unavailable
13129G
GEAR,OUTPUT 4TH,29T
13129-1258
Unavailable
13129H
GEAR,OUTPUT TOP,27T
13129-1593
Unavailable
14013
RING-POSITION
14013-1001
Unavailable
92022
WASHER,TOOTHED,30X38X3
92022-1098
$9.38
92022A
WASHER,CLAW,29X38X1
92022-1099
$5.88
92022B
WASHER,34.3X44X1
92022-1100
$5.21
92022C
WASHER,TOOTHED,36.3X46X1
92022-1101
$5.88
92022D
WASHER,36.3X46X2
92022-1102
$6.10
92022E
WASHER,23.2X38X3
92022-1103
$9.38
92022F
SPACER,22X35.5X1.0
92026-1020
$5.23
92022G
WASHER,22.3X35X1.6
92022-212
$9.91
92022H
WASHER,TOOTHED,26X35.5X1.5
92024-042
$11.07
92025
SHIM,34.3X42X0.1
92025-1002
Unavailable
92025A
SHIM,34.3X42X0.3
92025-1003
Unavailable
92025B
SHIM,23.3X30.7X0.1
92025-1004
Unavailable
92025C
SHIM,23.3X30.7X0.3
92025-1005
Unavailable
92028
BUSHING,INPUT TOP GEAR
92028-1302
$21.44
92028A
BUSHING,OUTPUT 2ND GEAR
92028-1303
$28.29
92033
RING-SNAP,20X25.5X1.2
92033-025
$4.96
92033A
RING-SNAP,22.8MM
92033-1021
$4.33
92045
BEARING-BALL,#3206
92045-1018
$85.19
92045A
BEARING-BALL,5305NSH2
92045-1028
$132.72
92046
BEARING-NEEDLE,FWF-223014
92046-031
$19.72
92046A
BEARING-NEEDLE,K23X28X24
92046-1015
$22.60
92046B
BEARING-NEEDLE,TR1-346226E02
92046-1119
Unavailable
92081
SPRING,DAMPER
92081-1286
$54.19
480
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
480A
CIRCLIP-TYPE-C,36MM
480J3600
$4.71
600
BALL-STEEL,5/32
600A0500
$0.81
