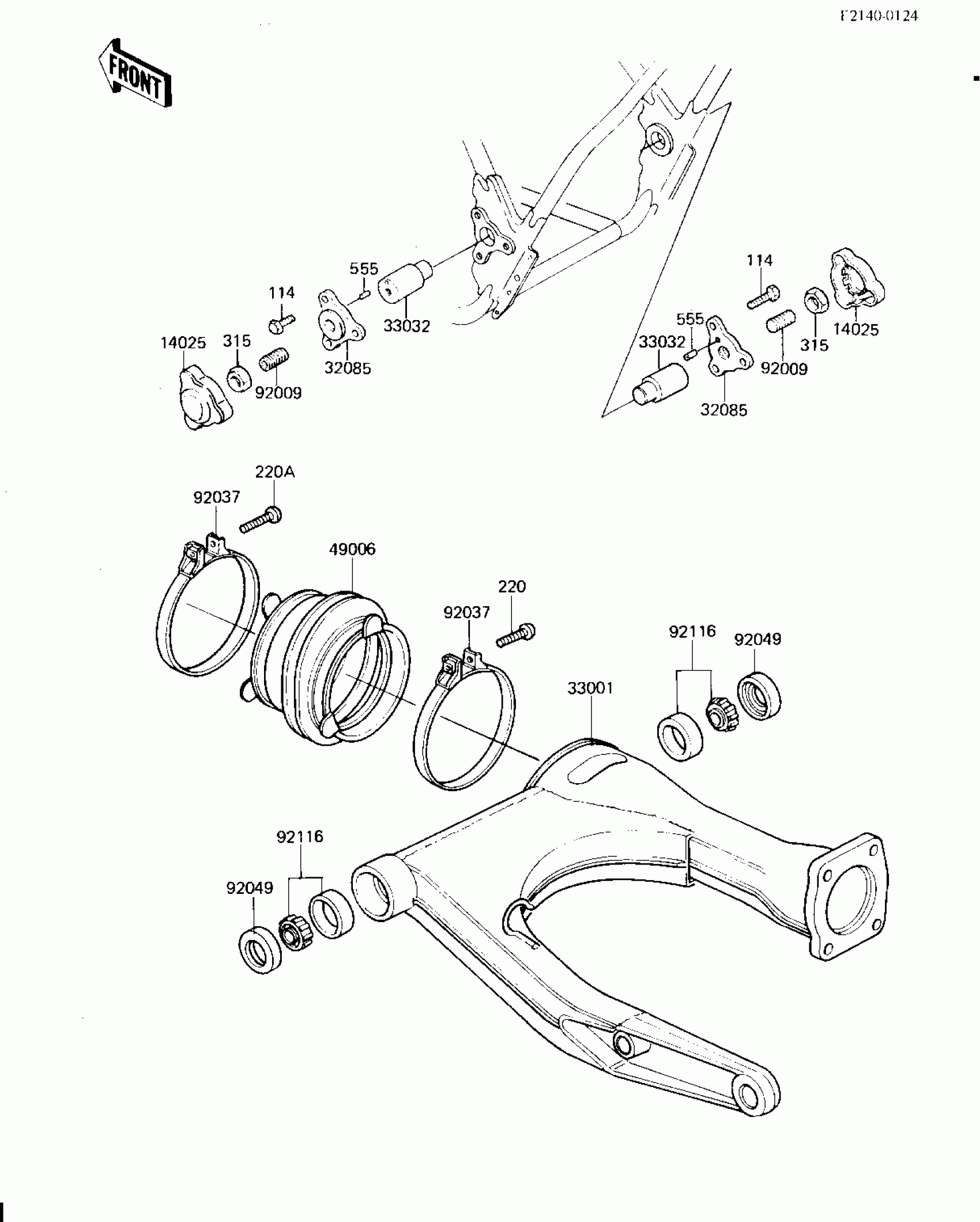

Kawasaki KZ1300-A4 SWING ARM Diagram

Description

Price

14025

COVER,SWING ARM

14025-1087

Unavailable

32085

STOPPER,SWING ARM

32085-1053

$52.00

33001

ARM,SWING

33001-1026

$429.20

33032

SHAFT,SWING ARM

33032-1016

Unavailable

49006

BOOT,SWING ARM

49006-1020

Unavailable

92009

SCREW,SET,14X22

92009-1087

$8.96

92037

CLAMP,SWING ARM BOOT

92037-1097

Unavailable

92049

SEAL-OIL,26406

92049-1030

$9.73

92116

BEARING-ROLLER,4T30203E1

92116-1001

$38.04

220

SCREW-PAN-CROS

220B0420

$2.49

220A

SCREW-PAN-CROS

220B0430

$0.77

315

NUT-HEX-FINE,14MM

315B1400

$2.03

555

PIN,SPRING,3X14

555A0314

$3.71
