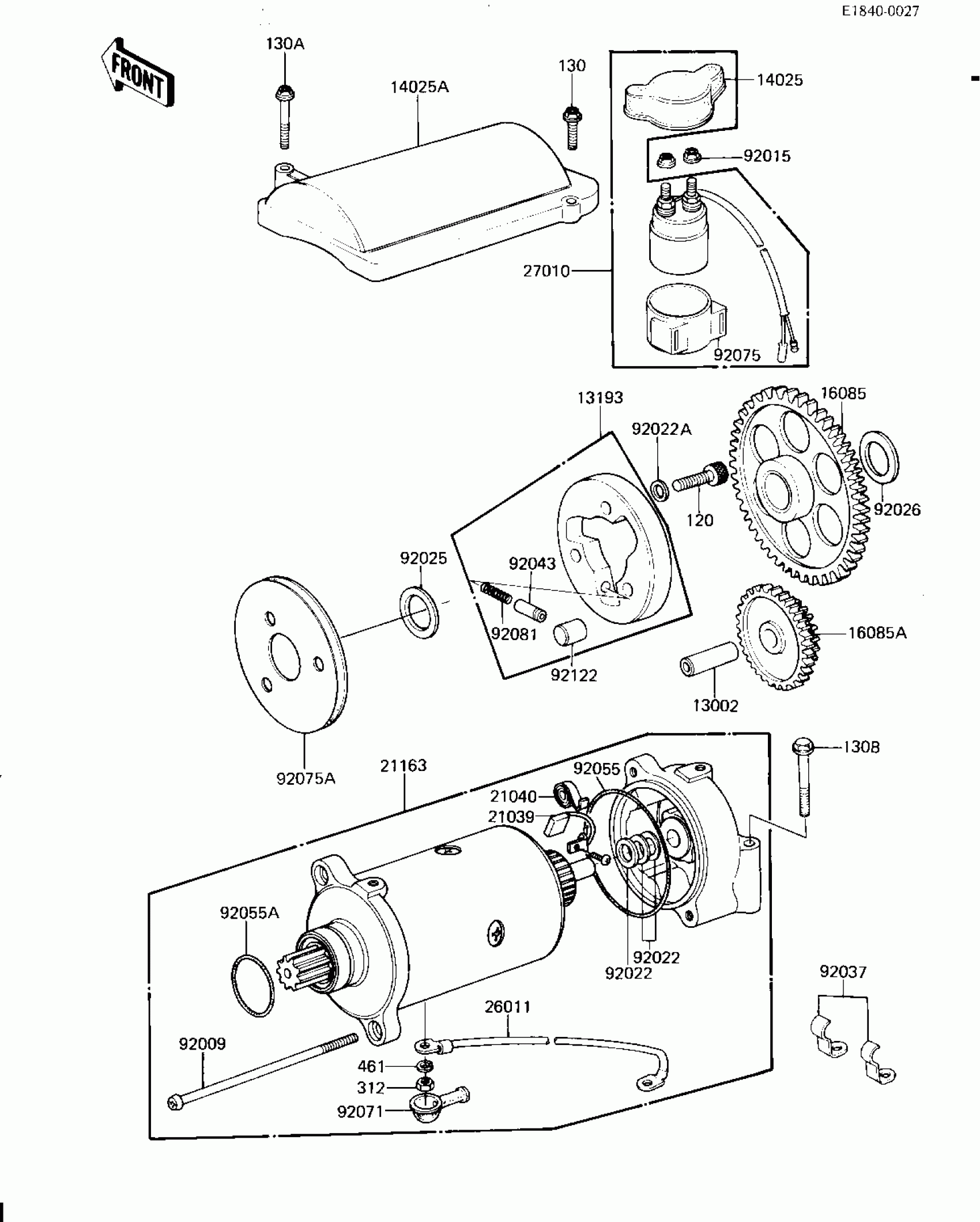

Kawasaki KZ1300-A4 STARTER MOTOR/STARTER CLUTCH Diagram
#
Description
Price
13002
PIN-PISTON
13002-019
Unavailable
13193
CLUTCH-ASSY-ONEWAY
13193-1012
Unavailable
14025
COVER,MAGNETIC SWITCH
14025-1165
Unavailable
14025A
COVER,STARTER MOTOR
14025-1752
Unavailable
16085
GEAR,STARTER CLUTCH
16085-1010
Unavailable
16085A
GEAR,STARTER REDUCTON
16085-1011
$81.30
21039
BRUSH,CARBON
21039-003
$40.76
21040
SPRING-BRUSH
21040-003
Unavailable
21163
STARTER-ELECTRIC
21163-1030
$874.33
26011
WIRE,LEAD,STARTER MTR
26011-1054
$54.32
27010
SWITCH,MAGNETIC
27010-1025
$127.17
92009
SCREW,PAN HEAD,5X110
21015-005
$9.81
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92022
WASHER,9.1X18X0.2
21025-011
Unavailable
92022A
WASHER,8.5X13.5X2
92022-1108
$4.31
92025
SHIM,25.3X36X0.30
92025-1019
Unavailable
92026
SPACER,25.0X34X2.3
92026-1059
Unavailable
92037
CLAMP,LEAD WIRE
92037-1345
$4.75
92043
PIN
92043-087
$12.76
92055
RING-O,STARTER MOTOR
21027-003
Unavailable
92055A
RING-O,STARTER MOTOR,25MM
21027-004
$9.91
92071
GROMMET,STARTER TERMINAL
21017-017
$9.43
92075
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
92075A
DAMPER
92075-1390
$132.23
92081
SPRING
92081-110
$4.76
92122
ROLLER,15X13
92122-004
$11.07
120
BOLT-SOCKET,8X25
120P0825
$1.92
130
BOLT-FLANGED,6X25
130B0625
$0.55
130A
BOLT,FLANGED,6X40
130B0640
$0.74
130B
BOLT-FLANGED,6X55
130G0655
$4.65
