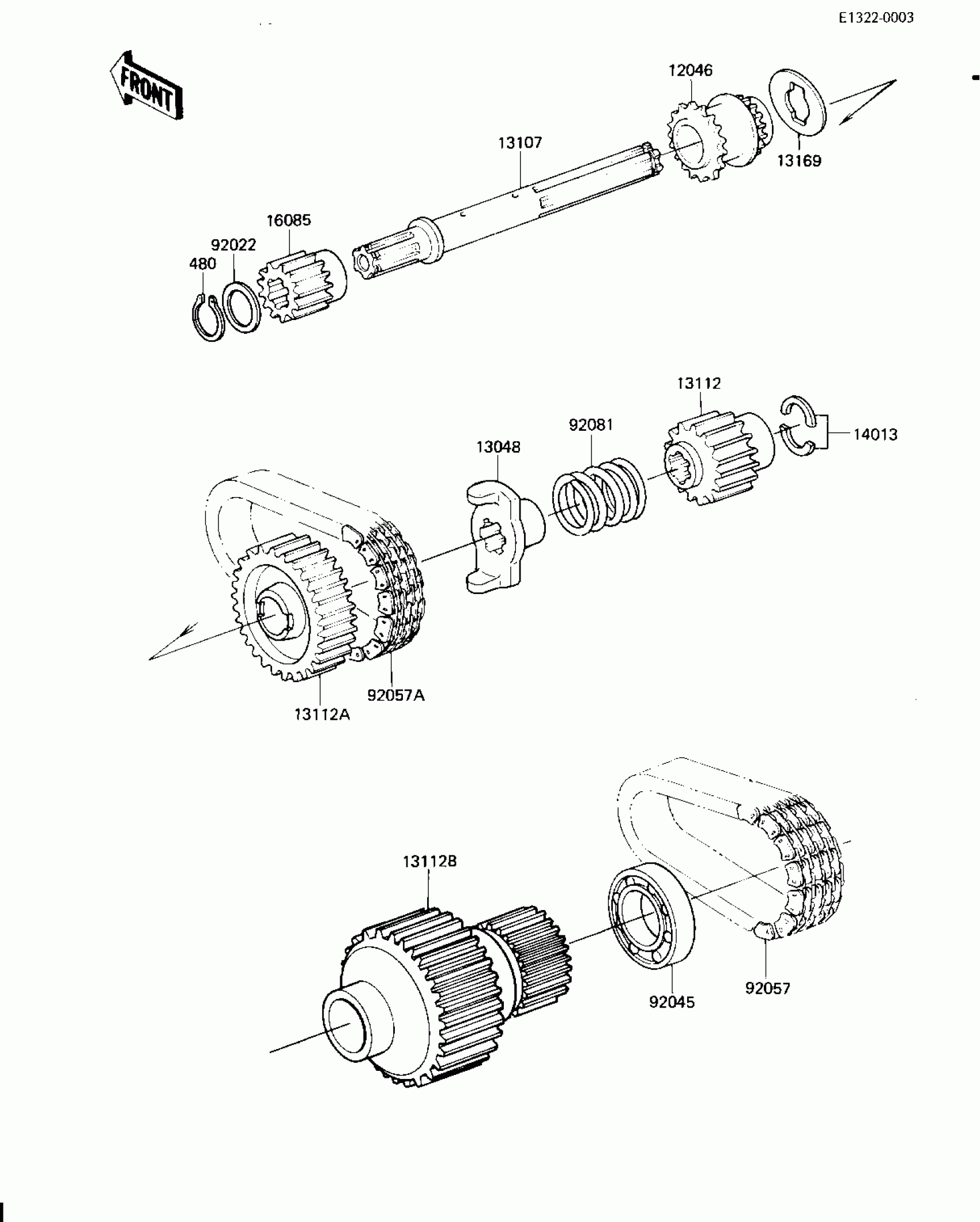

Kawasaki KZ1300-A4 SECONDARY SHAFT Diagram

Description

Price

12046

SPROCKET,TIMING,28T&24T

12046-1011

Unavailable

13048

CAM-DAMPER

13048-1015

Unavailable

13107

SHAFT,SECONDARY

13107-1007

Unavailable

13112

SPROCKET,SECOND,DRIVE

13112-1002

Unavailable

13112A

SPROCKET-PRIMARY,32T

13112-1008

Unavailable

13112B

SPROCKET-PRIMARY,25T

13112-1009

Unavailable

13169

PLATE,SECONDARY SHAFT

13169-1327

Unavailable

14013

RING-POSITION

14013-1001

Unavailable

16085

GEAR,OIL PUMP,INPUT,19T

16085-1004

$39.47

92022

WASHER,25.3X33X1

92022-1109

$5.96

92045

BEARING-BALL,#6009

92045-1015

$35.50

92057

CHAIN,SECONDARY

92057-1017

Unavailable

92057A

CHAIN,PRIMARY,50L

92057-1075

$299.70

92081

SPRING,CAM FOLLOWER

92081-1085

$40.67

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03
