Description

Price

11034

BRACKET, SEAT CATCH

53058-001

Unavailable

14025

COVER,SEAT,EBONY

14025-5049-8G

Unavailable

27012

HOOK,SEAT

53056-002

$16.66

35011

STAY,SEAT STAND

35011-1018

$10.20

53001

DESC-SEAT-ASSY,DUAL

53001-1358

$696.97

53009

HINGE,SEAT

53009-1011

Unavailable

92022

WASHER,7X24X1.6

92022-228

$3.92

92027

COLLAR,SEAT COVER

92027-1122

Unavailable

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92043

PIN,SEAT PIVOT

92043-1021

$5.38

92043A

PIN,SEAT STAND

92043-1045

$3.10

92075

DAMPER

92075-099

$5.52

92075A

DAMPER,SEAT COVER FIT

92075-1097

Unavailable

92075B

DAMPER RUBBER,SEAT

92075-139

$11.46

92075C

RUBBER,FENDER COVER

92075-174

$4.78

92075D

DAMPER,FEMALE

92075-175

$4.39

92081

SPRING,SEAT STAND

92081-1100

$9.08

110

BOLT,6X14

110B0614

Unavailable

110A

BOLT HEX HD 6X22

110B0622

$3.48

220

SCREW PAN HEAD 6X25

220B0625

$2.60

311

NUT 6MM

311B0600

$0.93

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

554

PIN,SNAP

554A0600

$0.93

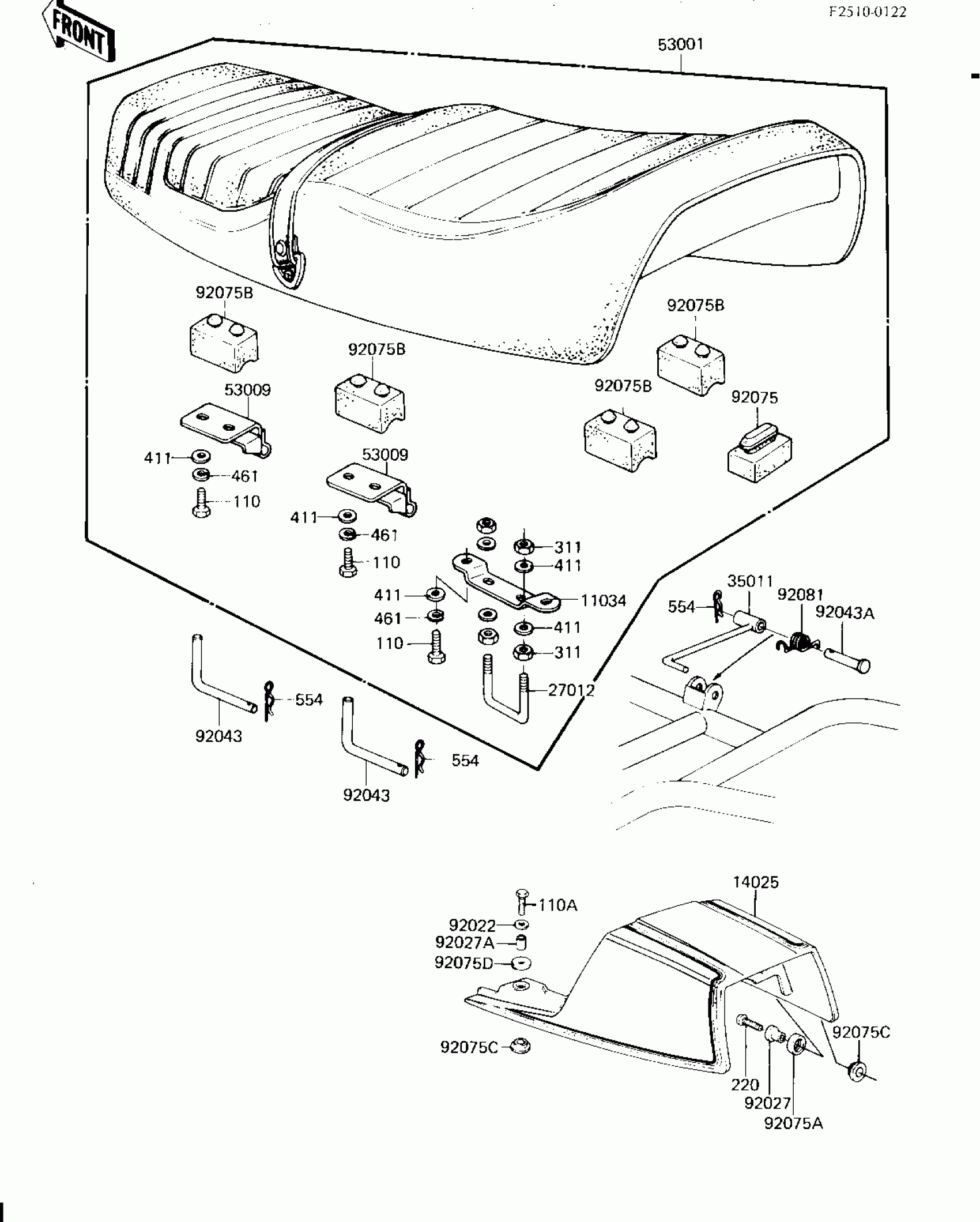

Kawasaki KZ1300-A4 SEAT/SEAT COVER Diagram

BRACKET, SEAT CATCH

COVER,SEAT,EBONY

HOOK,SEAT

STAY,SEAT STAND

DESC-SEAT-ASSY,DUAL

HINGE,SEAT

WASHER,7X24X1.6

COLLAR,SEAT COVER

COLLAR,6.8X10X12

PIN,SEAT PIVOT

PIN,SEAT STAND

DAMPER

DAMPER,SEAT COVER FIT

DAMPER RUBBER,SEAT

RUBBER,FENDER COVER

DAMPER,FEMALE

SPRING,SEAT STAND

BOLT,6X14

BOLT HEX HD 6X22

SCREW PAN HEAD 6X25

NUT 6MM

WASHER PLAIN 6MM

WASHER SPRING 6MM

PIN,SNAP
