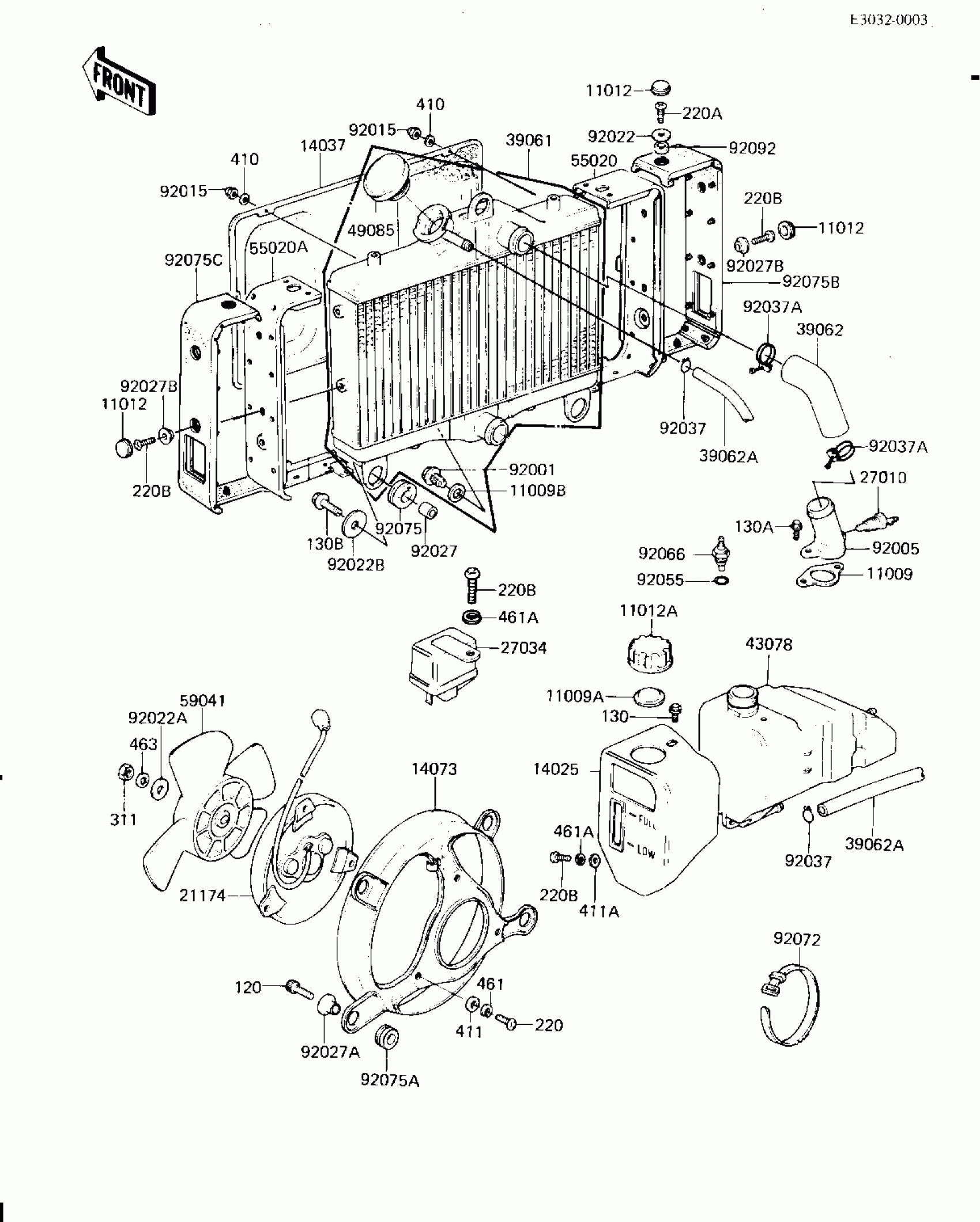

Kawasaki KZ1300-A4 RADIATOR/FAN/COOLANT TANK Diagram
#
11009
GASKET,HOSE FITTING
11009-1100
Unavailable
11009A
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11009B
GASKET,DRAIN BOLT
11009-1152
$7.55
11012
CAP,RADIATOR GUARD
11012-1077
Unavailable
11012A
CAP
11012-1084
$1.72
14025
COVER,RESERVE TANK
14025-1152
Unavailable
14037
SCREEN,RADIATOR
14037-1001
$58.92
14073
SHROUD,FAN
14073-1014
$156.22
21174
MOTOR,FAN
21174-1001
$625.17
27010
SWITCH,FAN
27010-1036
Unavailable
27034
RELAY,FAN
27034-1002
$91.62
39061
RADIATOR-ASSY
39061-1053
$1,144.84
39062
HOSE,COOLING,RADIATOR
39062-1002
$35.48
39062A
HOSE-COOLING,7X12X1200
39062-1003
$29.95
43078
RESERVOIR,TANK
43078-1007
Unavailable
49085
CAP-ASSY-PRESSURE,RADIATOR
49085-1051
$51.01
55020
GUARD,RADIATOR,R.H
55020-1036
$127.17
55020A
GUARD,RADIATOR,L.H
55020-1037
$109.74
59041
FAN,COOLING
59041-1001
$137.14
92001
BOLT,RADIATOR DRAIN
92002-1682
$20.51
92005
FITTING,UPPER HOSE
92005-1012
Unavailable
92015
NUT-CAP,6MM,BLACK
322C0600
$2.76
92022
WASHER
42046-008
$4.38
92022A
WASHER,FAN
92022-1089
$4.16
92022B
WASHER,8.5X35X2.3
92022-298
Unavailable
92027
COLLAR,12.7X15.9X12.5
92027-1141
Unavailable
92027A
COLLAR,L=9
92027-1188
$5.52
92027B
COLLAR,RADIATOR GUARD
92027-1189
$6.54
92037
CLAMP-HOSE
92037-1104
$1.45
92037A
CLAMP,HOSE
92037-1177
$10.37
92055
RING-O,13.5MM
92055-073
$10.04
92066
SENDER,WATER TEMPERATURE
92066-1028
Unavailable
92072
BAND,L=186
92072-056
$5.00
92075
DAMPER,RADIATOR
92075-1127
Unavailable
92075A
DAMPER,FAN
92075-1167
$5.59
92075B
DAMPER,RADIATOR,R.H
92075-1210
$36.83
92075C
DAMPER,RADIATOR,L.H
92075-1211
$58.02
92092
BUSHING,RBR,14X22X8.5
92092-1005
$4.12
120
BOLT-SOCKET,6X20
120P0620
$1.74
130
BOLT-FLANGED,6X10
130B0610
$0.48
130A
UNAVAILABLE IN PRICE BOOK
130B625
Unavailable
130B
BOLT-FLANGED,8X25
130B0825
$1.42
220
SCREW PAN HEAD 5X10
220B0510
$0.69
220A
SCREW PAN HEAD 6X10
220B0610
$3.14
220B
SCREW-PAN-CROS,6X16
220B0616
$2.84
311
NUT-HEX
311B0500
$0.47
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER-PLAIN,5MM
411B0500
$0.46
411A
WASHER PLAIN 6MM
411B0600
$2.84
461
WASHER SPRING 5MM
461F0500
$0.69
461A
WASHER SPRING 6MM
461F0600
$0.69
463
WASHER LOCK 5MM
463H0500
$2.25
