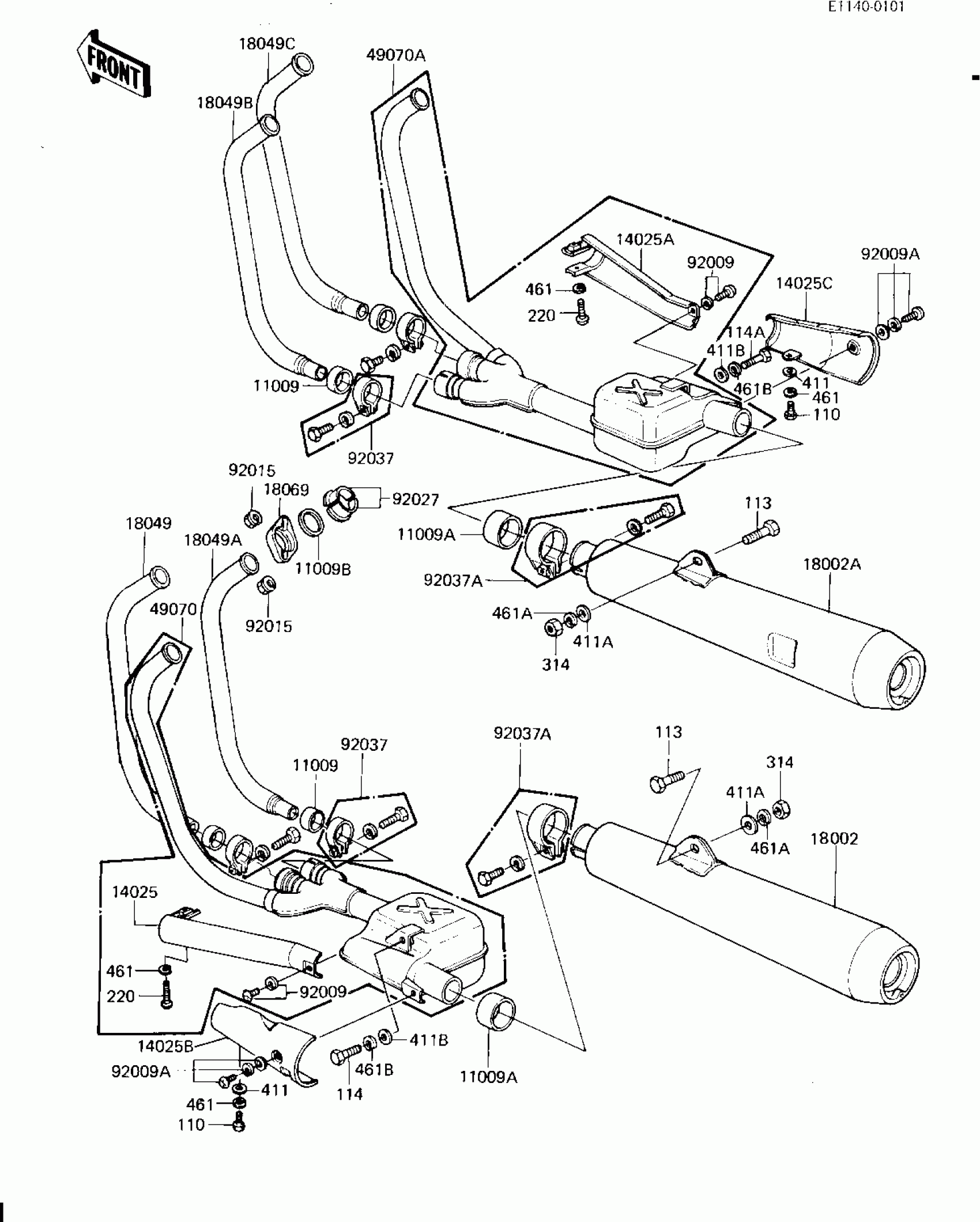

Kawasaki KZ1300-A4 MUFFLERS Diagram

#

Description
Price

11009

GASKET,MUFFLER CONNEC

11060-1051

$20.16

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$28.56

11009B

GASKET,EXHAUST PIPE H

11009-1866

$6.29

14025

COVER,MUFFLER,L.H,FR

14025-1147

Unavailable

14025A

COVER,MUFFLER,R.H,FR

14025-1148

Unavailable

14025B

COVER,MUFFLER,L.H,RER

14025-1149

Unavailable

14025C

COVER,MUFFLER,R.H,RER

14025-1150

Unavailable

18002

BODY-COMP-MUFFLER,LH

18002-1375

Unavailable

18002A

BODY-COMP-MUFFLER,RH

18002-1376

$720.74

18049

PIPE-EXHAUST,#2

18049-1164

$216.13

18049A

PIPE-EXHAUST,#3

18049-1165

$216.13

18049B

PIPE-EXHAUST,#4

18049-1166

$216.13

18049C

PIPE-EXHAUST,#5

18049-1167

$216.13

18069

HOLDER-EXHAUST PIPE

18069-1010

Unavailable

49070

MUFFLER-COMP,LH

49070-1101

$525.04

49070A

MUFFLER-COMP,RH

49070-1102

$525.04

92009

SCREW,6X12

92009-1088

$3.78

92009A

SCREW,6X10,W/WASHER

92009-1098

$3.78

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR,L=14.5

92027-1142

$3.81

92037

CLAMP,MUFFLER,37MM

92037-1243

Unavailable

92037A

CLAMP,POWER CHAMBER

92037-1228

$18.63

110

BOLT-UPSET,6X12

112G0612

Unavailable

113

BOLT,HEX HEAD 10X40

92001-1253

Unavailable

114

BOLT-SMALL,8X25

114N0825

Unavailable

114A

BOLT,8X55

114N0855

Unavailable

220

SCREW PAN HEAD 6X40

220B0640

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER-PLAIN,10MM

411B1000

Unavailable

411B

WASHER-PLAIN,8MM

411D0800

$2.15

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable

461B

WASHER SPRING 8MM

461S0800

$0.57
