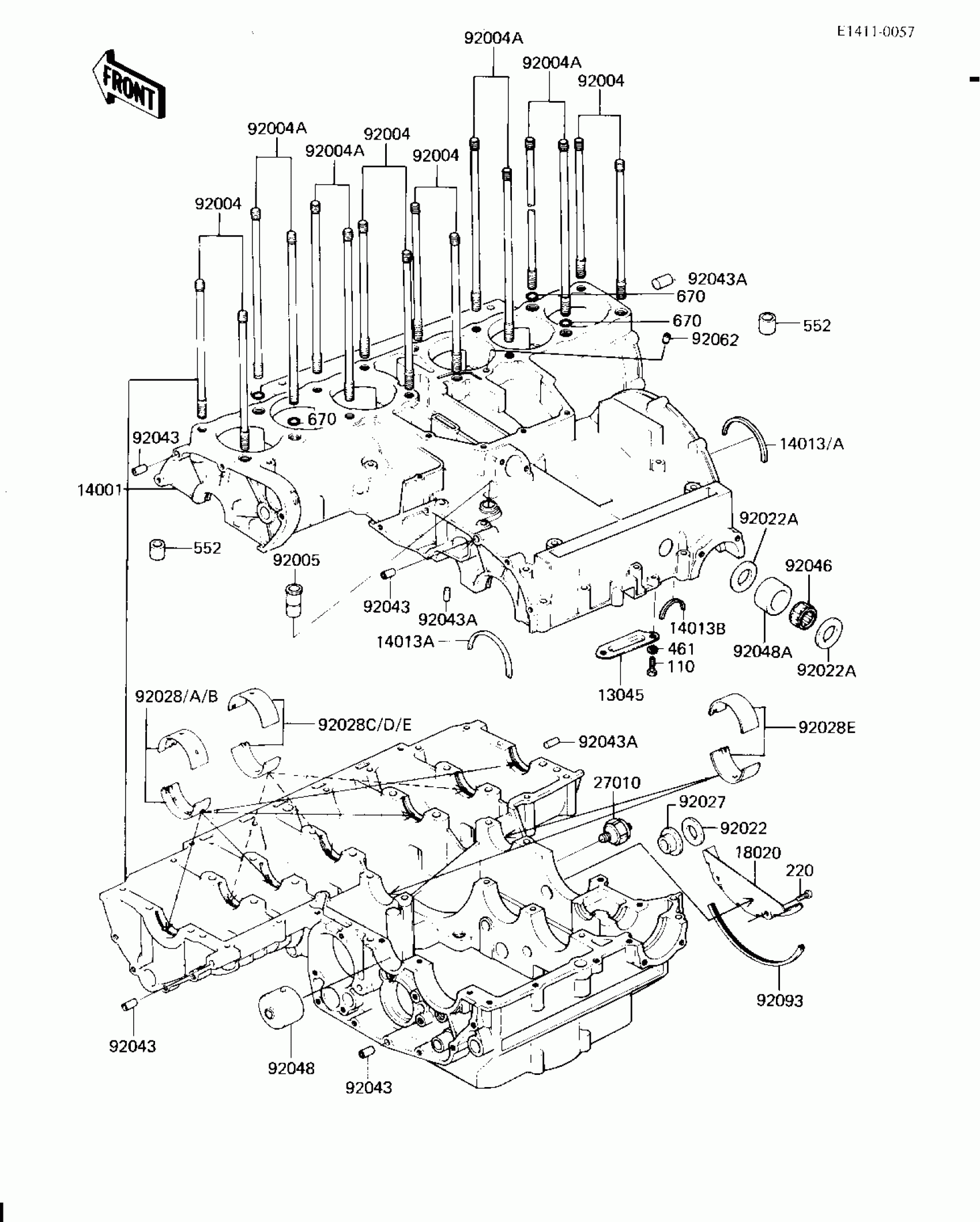

Kawasaki KZ1300-A4 CRANKCASE Diagram

#

Description
Price

13045

RECEIVER-OIL

13045-1002

Unavailable

14001

SET-CRANKCASE

14001-5110

Unavailable

14013

RING-POSITION,T=1.90

14013-013

Unavailable

14013A

RING-POSITION,T=1.98

14013-1004

Unavailable

14013B

RING-POSITION

14013-1007

Unavailable

18020

BAFFLE

18020-1022

$12.78

27010

SWITCH ASY,OIL PRSSUR

16144-006

Unavailable

92004

STUD,10X153

92004-062

$18.27

92004A

STUD,10X195

92004-1019

$11.85

92005

FITTING,BREATHER

14067-006

$19.78

92022

WASHER,THRUST,10MM

92022-1279

$2.85

92022A

WASHER,THRUST,20.5MM

92022-1280

$4.25

92027

COLLAR,L=6MM

92027-1387

$17.88

92028

BUSHING,MAIN JOURNAL,BLUE

92028-1103

Unavailable

92028A

BUSHING,MAIN JOURNAL,BLACK

92028-1104

Unavailable

92028B

BUSHING,MAIN JOURNAL,BROWN

92028-1105

Unavailable

92028C

BUSHING,MAIN JOURNAL,BLUE

92028-1106

Unavailable

92028D

BUSHING,MAIN JOURNAL,BLACK

92028-1107

Unavailable

92028E

BUSHING,MAIN JOURNAL,BROWN

92028-1108

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043A

PIN,DOWEL,6X16

92042-016

$3.81

92046

BEARING-NEEDLE,TK202814E01

92046-1042

Unavailable

92048

RACE,DRIVE SHAFT,LH

92048-1008

$54.83

92048A

RACE

92048-1018

$25.44

92062

NOZZLE,BLACK

92062-011

$8.37

92093

SEAL

92093-1040

$4.03

110

BOLT-UPSET,6X16

112G0616

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

552

PIN-DOWEL,6.5X10X12

552B1012

Unavailable

670

O RING,12MM

670B2012

$2.22
