Description

Price

18020

BAFFLE

18020-1053

$10.34

21119

IGNITER

21119-1038

$892.90

21121

COIL,IGNITION,#1.6

21121-1017

$279.36

21121A

COIL,IGNITION,#2.5

21121-1018

$279.36

21121B

COIL,IGNITION,#3.4

21121-1019

$279.36

21130

CAP-SPARK PLUG

21130-1010

$51.68

21160

CAP SPARK PLUG

21160-1014

Unavailable

28018

RESISTOR,IGNITIN,COIL

28018-1014

Unavailable

59026

COIL-PULSING

59026-1015

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92070

SPARK PLUG BP6ES

BP6ES

$3.62

92070A

SPARK PLUG BPR6ES

BPR6ES

$4.61

92070B

SPARK PLUG BP7ES

BP7ES

Unavailable

92070C

SPARK PLUG BPR7ES

BPR7ES

Unavailable

92071

GROMMET,PLUG CAP

21131-004

$10.97

92071A

GROMMET,HIGH TENSION

21131-005

$6.16

92071B

GROMMET,PLUG CAP

21131-006

$8.53

92071C

GROMMET,HIGH TENSION

21132-005

$4.26

110

BOLT,6X10

112G0610

$0.58

110A

BOLT 6X22

112B0622

$3.48

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

411

WASHER PLAIN 6MM

411B0600

$2.84

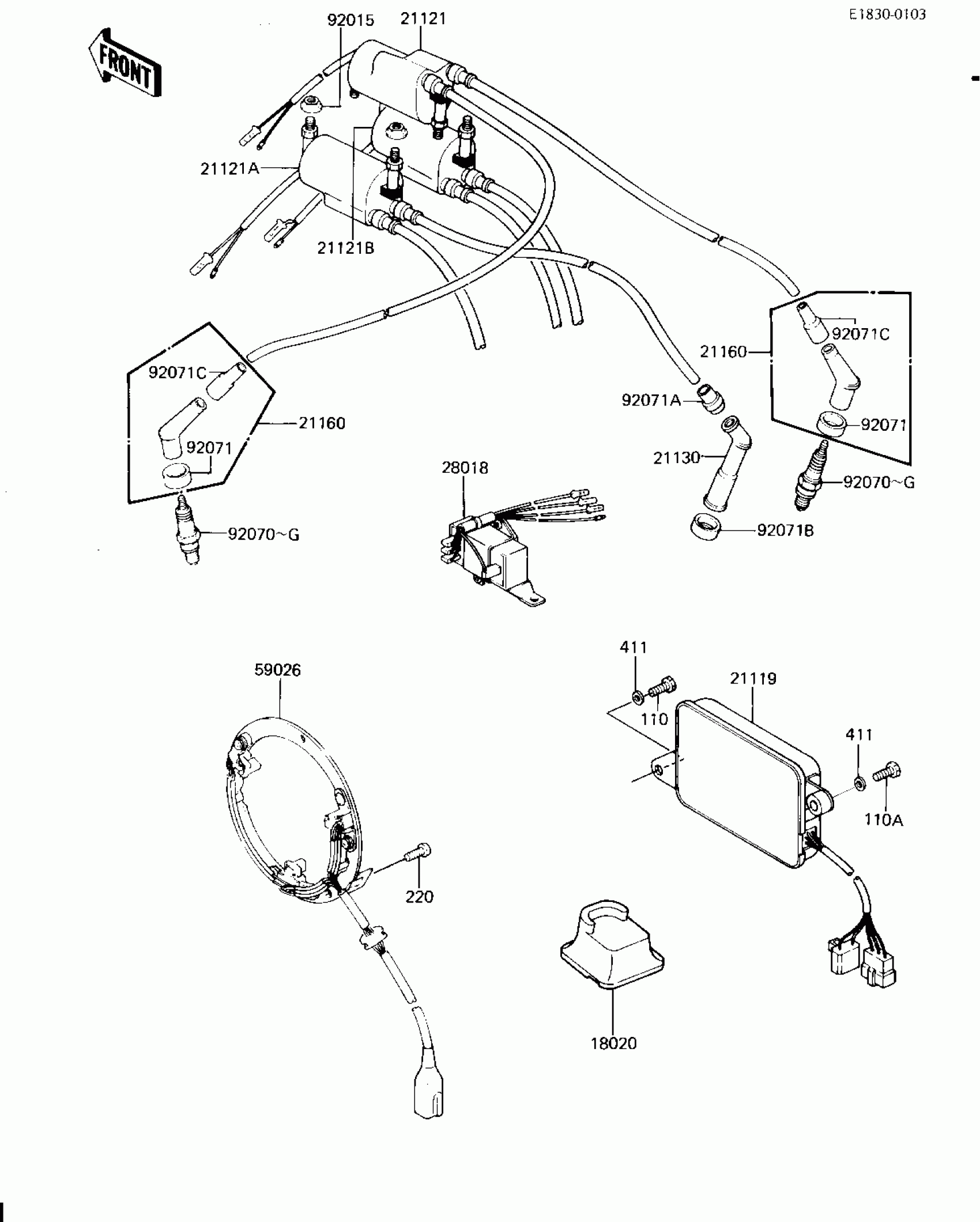

Kawasaki KZ1300-A4 IGNITION Diagram

BAFFLE

IGNITER

COIL,IGNITION,#1.6

COIL,IGNITION,#2.5

COIL,IGNITION,#3.4

CAP-SPARK PLUG

CAP SPARK PLUG

RESISTOR,IGNITIN,COIL

COIL-PULSING

NUT,FLANGED,6MM

SPARK PLUG BP6ES

SPARK PLUG BPR6ES

SPARK PLUG BP7ES

SPARK PLUG BPR7ES

GROMMET,PLUG CAP

GROMMET,HIGH TENSION

GROMMET,PLUG CAP

GROMMET,HIGH TENSION

BOLT,6X10

BOLT 6X22

SCREW PAN HEAD 6X12

WASHER PLAIN 6MM
