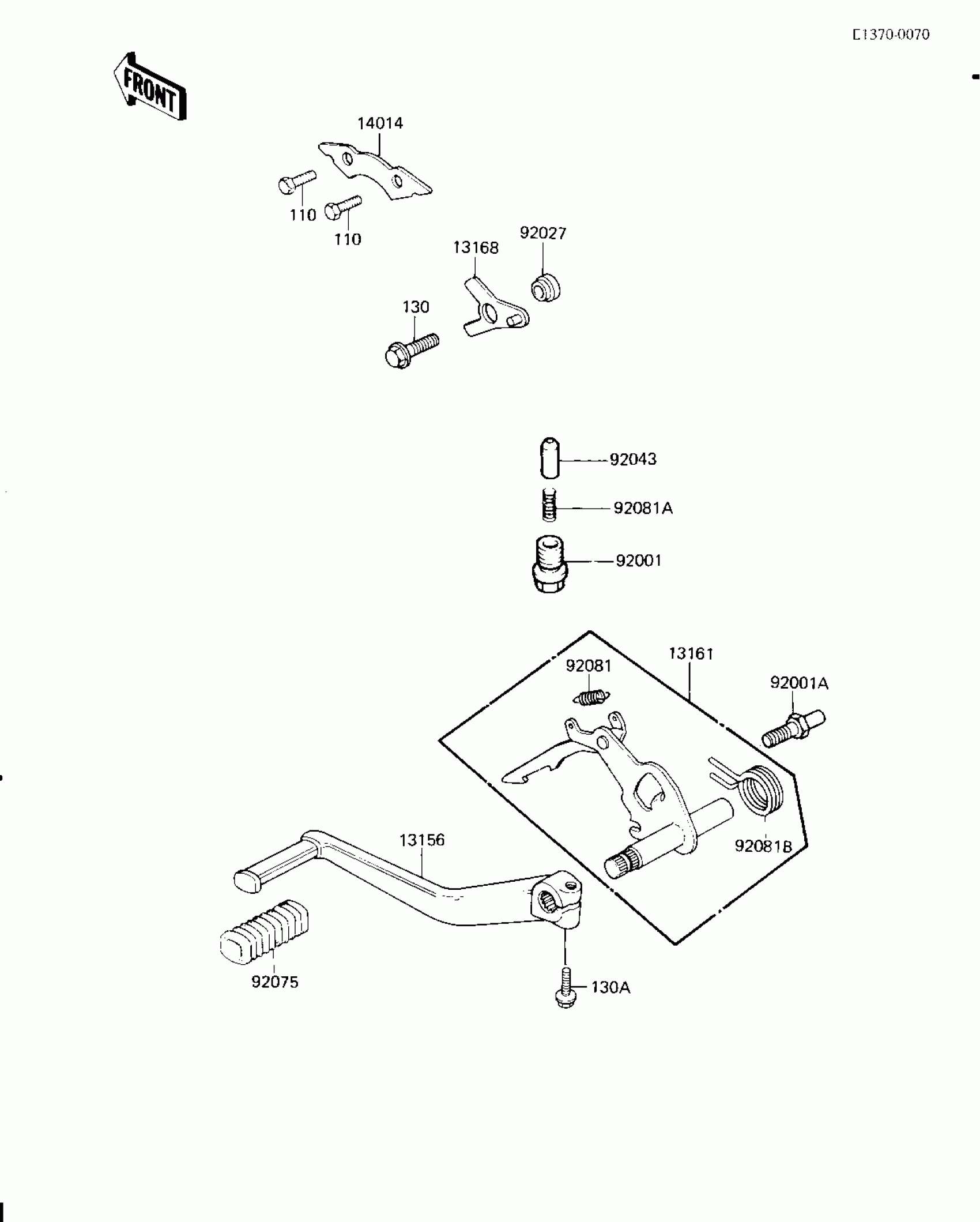

Kawasaki KZ1300-A4 GEAR CHANGE MECHANISM Diagram

Description

Price

13156

PEDAL,CHANGE

13156-1038

Unavailable

13161

LEVER-COMP-CHANGE SHAFT

13161-1114

Unavailable

13168

LEVER,CHANGE

13168-1034

Unavailable

14014

PLATE-POSITION

14014-1008

Unavailable

92001

BOLT,FLANGED,16X16.5

92001-131

$19.90

92001A

BOLT,RETURN SPRING

92001-1401

$4.69

92027

COLLAR,L=8.7

92027-1139

$8.68

92043

92043-076

$11.71

92075

DAMPER,CHANGE PEDAL

92075-1175

$5.59

92081

SPRING,CHANGE LEVER

92081-076

$5.46

92081A

SPRING

92081-112

$6.16

92081B

SPRING,CHG PEDL RTRN

92083-028

Unavailable

110

BOLT-UPSET,6X16

112G0616

$1.10

130

BOLT-FLANGED,8X25

130G0825

$2.89

130A

BOLT-FLANGED,6X25

130P0625

$4.15

Kawasaki KZ1300-A4 GEAR CHANGE MECHANISM Diagram

PEDAL,CHANGE

LEVER-COMP-CHANGE SHAFT

LEVER,CHANGE

PLATE-POSITION

BOLT,FLANGED,16X16.5

BOLT,RETURN SPRING

COLLAR,L=8.7

PIN

DAMPER,CHANGE PEDAL

SPRING,CHANGE LEVER

SPRING

SPRING,CHG PEDL RTRN

BOLT-UPSET,6X16

BOLT-FLANGED,8X25

BOLT-FLANGED,6X25
