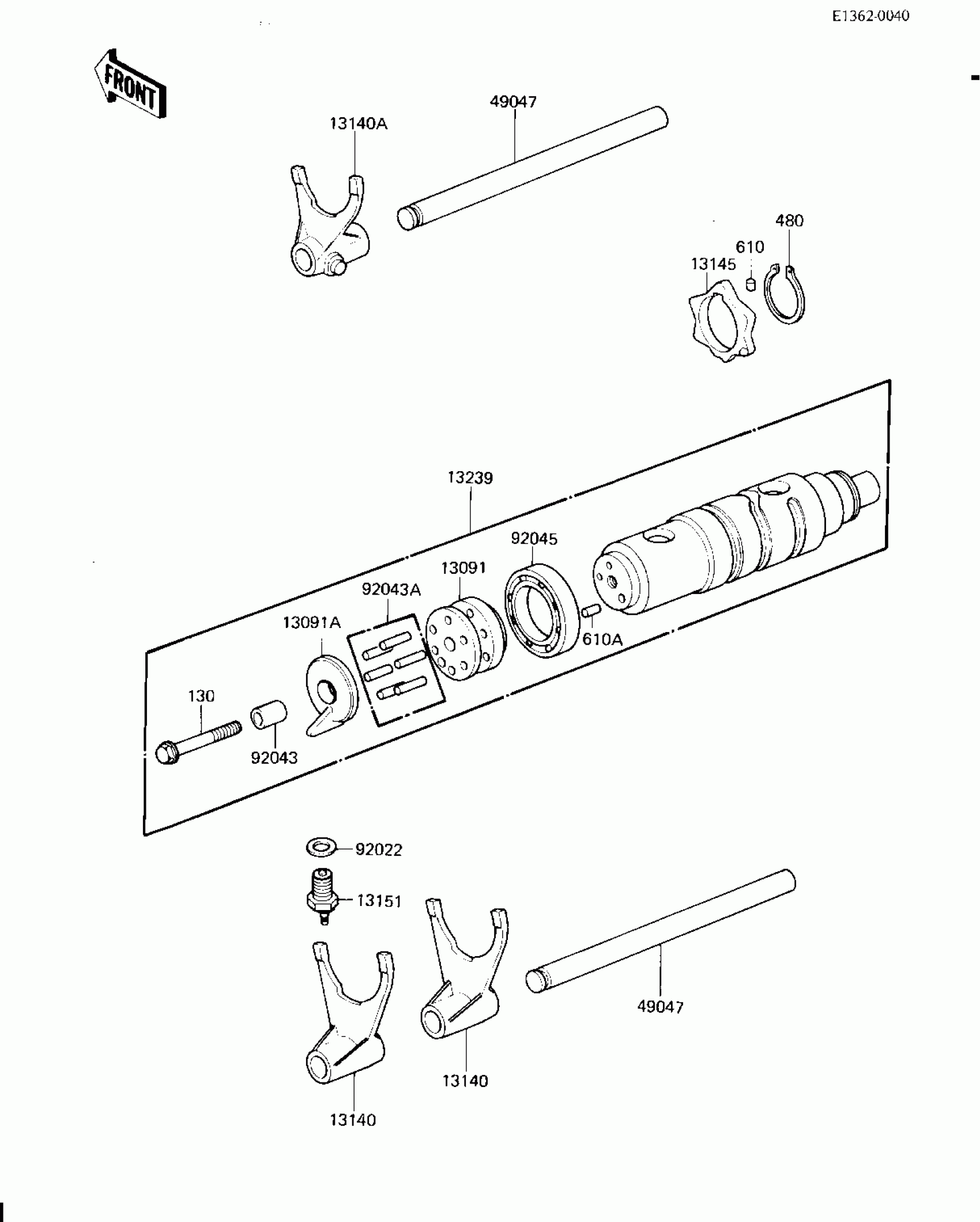

Kawasaki KZ1300-A4 GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER,BEARING

13091-1113

Unavailable

13091A

HOLDER,DRUM PIN

13091-1114

Unavailable

13140

FORK-SHIFT,LOW,2ND & 3RD

13140-1050

Unavailable

13140A

FORK-SHIFT,4TH & TOP

13140-1051

Unavailable

13145

CAM-CHANGE DRUM

13145-1058

$22.72

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM ASSY,GEAR CHANGE

13239-1050

Unavailable

49047

ROD-SHIFT,12X173

49047-1008

$24.39

92022

GASKET,10.5X16X1

92065-058

$3.96

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043A

PIN,DOWEL,4X15.8

92042-014

$0.43

92045

BEARING-BALL,#6906

92045-1016

$33.09

130

BOLT-FLANGED,6X40

130G0640

$1.17

480

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

610

ROLLER,4X6

610A0406

$4.31

610A

ROLLER,4X8

610A0408

$4.31
