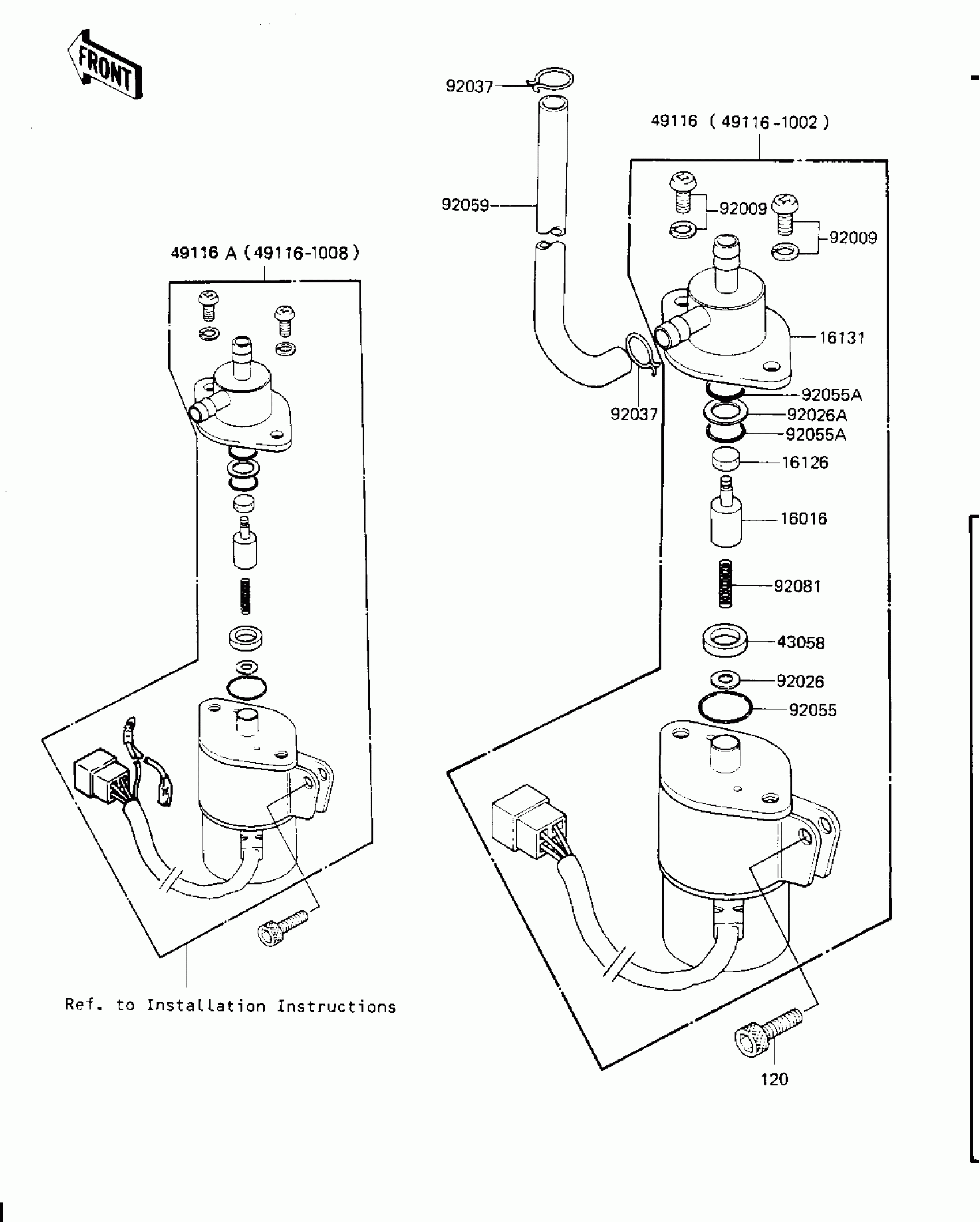

Kawasaki KZ1300-A4 FUEL SOLENOID VALVE Diagram

Description

Price

16016

PLUNGER

16016-1007

$14.46

16126

VALVE

16126-1016

$3.93

16131

BODY,VALVE

16131-1003

$12.37

43058

COLLAR

43058-1012

$2.78

49116

VALVE-ASSY,FUEL

49116-1008

Unavailable

49116A

VALVE-ASSY,FUEL

49116-1008

Unavailable

92009

SCREW,PAN HEAD

92009-1071

$1.90

92026

SPACER

92026-1056

$2.19

92026A

SPACER

92026-1057

$2.78

92037

CLAMP,FUEL TUBE

92037-1141

$2.42

92055

"0" RING

92055-1064

$5.22

92055A

"0" RING

92055-1065

$2.49

92059

TUBE,FUEL7.5X12.5X230

92059-1083

Unavailable

92081

SPRING

92081-1170

$3.10

120

BOLT-SOCKET,6X14

120P0614

Unavailable
