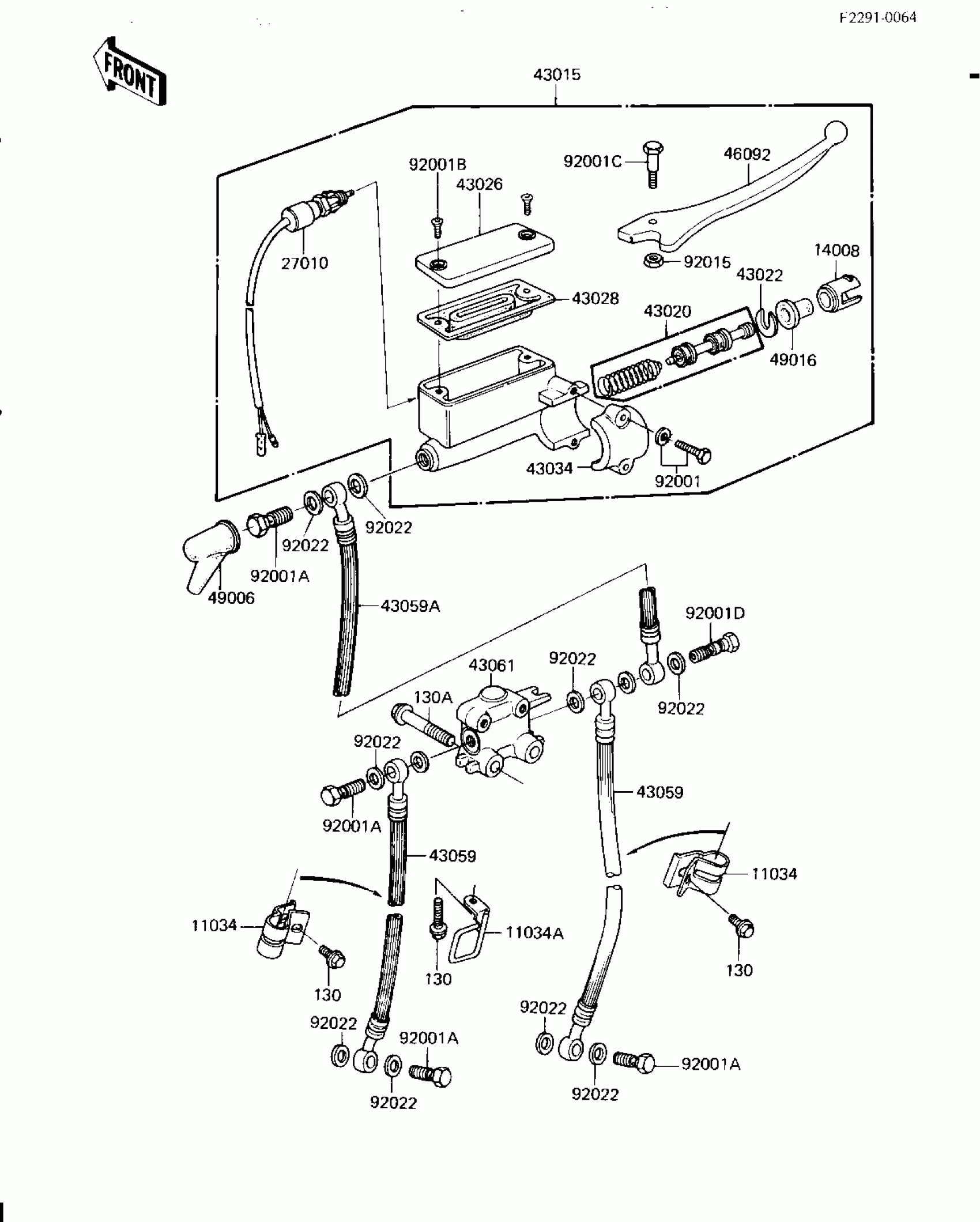

Kawasaki KZ1300-A4 FRONT MASTER CYLINDER Diagram

#

Description
Price

11034

BRACKET,BRAKE HOSE

11034-1284

Unavailable

11034A

BRACKET,SPEED CABLE

11034-1285

Unavailable

14008

LINER,PISTON

14008-1007

Unavailable

27010

SWITCH,BRAKE

27010-1028

$33.48

43015

CYLINDER ASSY,FRONT

43015-1060

$466.18

43020

PISTON-COMP-BRAKE

43020-1023

$95.02

43022

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

43026

CAP,OIL CUP

43026-1012

$31.60

43028

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

43059

HOSE-BRAKE,L=570

43059-1175

$127.91

43059A

HOSE,BRAKE

43059-1042

$142.13

43061

JOINT-BRAKE

43061-1001

$57.60

46092

LEVER,FRONT BRAKE

46092-1004

Unavailable

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

92001

BOLT,6X25,W/WASHER

43033-003

Unavailable

92001A

BOLT,OIL,L=23

92002-1888

$5.48

92001B

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

92001C

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

92001D

BOLT,OIL,L=37

92002-1909

$11.83

92015

NUT 6MM

312B0600

$0.72

92022

WASHER,10.5X15X1.5

43067-001

$2.15

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED,8X45

130G0845

$1.58
