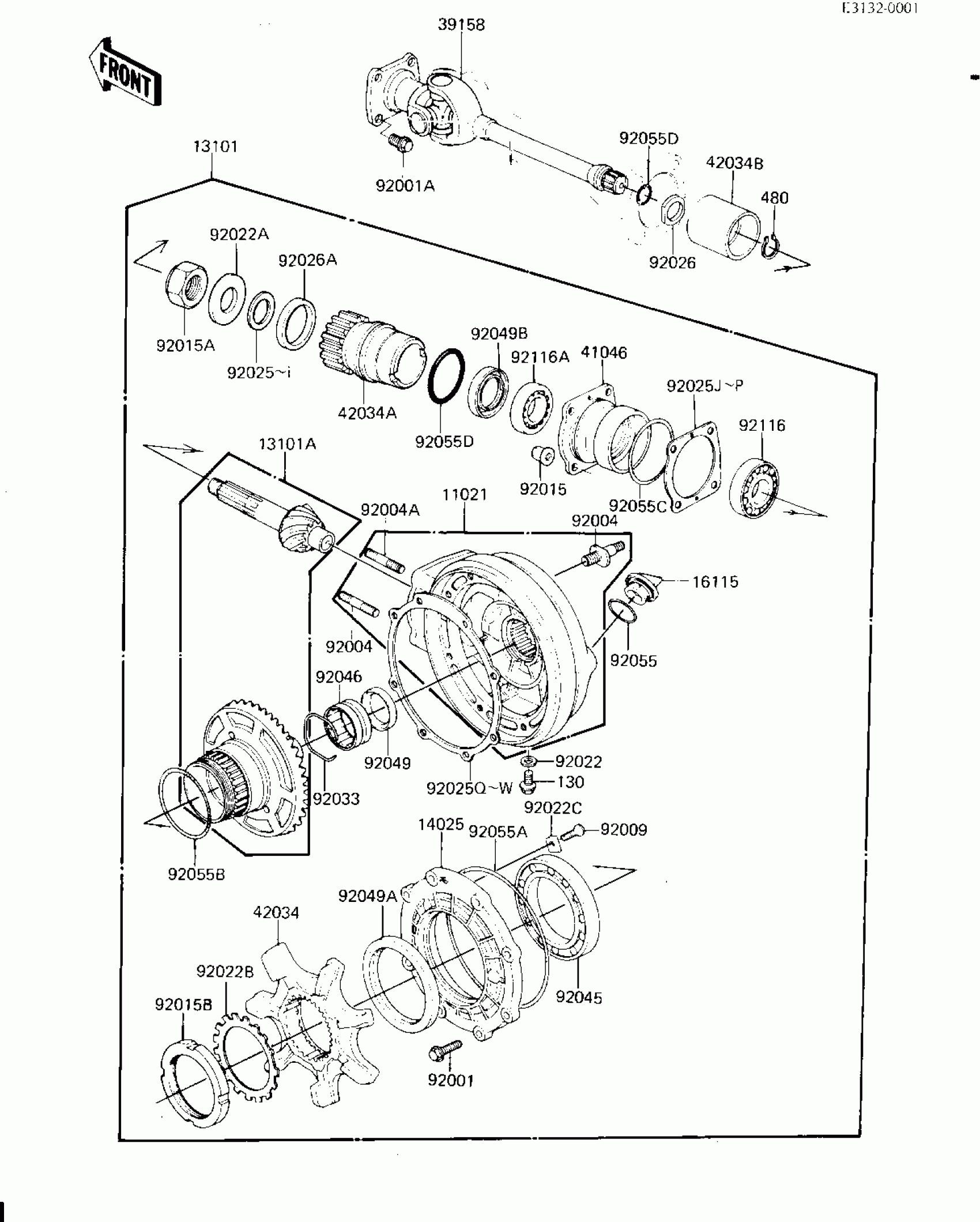

Kawasaki KZ1300-A4 DRIVE SHAFT/FINAL GEARS Diagram

#

Description
Price

11021

CASE ASSY,FINAL GEAR

11021-1009

Unavailable

13101

GEAR ASSY, FINAL

13101-1017

Unavailable

13101A

GEAR SET,FINAL BEVEL

13101-5026

Unavailable

14025

COVER,FINAL GEAR CASE

14025-1066

Unavailable

16115

CAP

16115-1003

Unavailable

39158

SHAFT-ASSY-DRIVE

39158-1004

$490.16

41046

HOUSING,BEARING,FINAL

41046-1008

$155.02

42034

COUPLING,REAR HUB

42034-1007

$225.97

42034A

COUPLING,PROPELLER SHAFT,INNER

42034-1023

$129.75

42034B

COUPLING,PROPELLER SHAFT,OUTER

42034-1092

$96.63

92001

BOLT,FLANGED,8X28

92001-1095

$6.57

92001A

BOLT,FLANGED,12X15

92001-1139

Unavailable

92004

STUD

92004-1020

$29.95

92004A

STUD,10X31.5

92004-1021

$5.83

92009

SCREW,COUNTERSNK,6X16

92009-1041

$3.35

92015

NUT,FLANGED,10MM

92015-1415

$4.69

92015A

NUT,16MM

92015-1059

Unavailable

92015B

NUT,75M/M,RING GEAR

92015-1060

$35.76

92022

WASHER,8.2X16X1

92022-1086

$3.92

92022A

WASHER,16X32X3.2

92022-1105

$11.49

92022B

WASHER,75M/M,RING GER

92022-1106

$11.75

92022C

WASHER,BEARING STOPPR

92022-1112

$4.04

92025

SHIM

92025-1027

Unavailable

92025A

SHIM

92025-1028

Unavailable

92025B

SHIM

92025-1029

Unavailable

92025C

SHIM

92025-1030

Unavailable

92025D

SHIM

92025-1031

Unavailable

92025E

SHIM

92025-1032

Unavailable

92025F

SHIM

92025-1033

Unavailable

92025G

SHIM

92025-1034

Unavailable

92025H

SHIM

92025-1035

Unavailable

92025I

SHIM

92025-1036

Unavailable

92025J

SHIM,73X0.6

92025-1037

Unavailable

92025K

SHIM,73X0.9

92025-1038

Unavailable

92025L

SHIM,73X1.2

92025-1039

Unavailable

92025M

SHIM,73X0.1

92025-1040

Unavailable

92025N

SHIM,73X0.15

92025-1041

Unavailable

92025O

SHIM,73X0.2

92025-1042

Unavailable

92025P

SHIM,73X0.3

92025-1043

Unavailable

92025Q

SHIM,168X0.6

92025-1045

Unavailable

92025R

SHIM,168X0.9

92025-1046

Unavailable

92025S

SHIM,168X1.2

92025-1047

Unavailable

92025T

SHIM,168X0.1

92025-1048

Unavailable

92025U

SHIM,168X0.15

92025-1049

Unavailable

92025V

SHIM,168X0.2

92025-1050

Unavailable

92025W

SHIM,168X0.3

92025-1051

Unavailable

92026

SPACER,26.2X36X2

92026-1085

$8.21

92026A

SPACER,THRUST,26MM

92026-1102

$10.82

92033

RING,SNAP

92033-1020

Unavailable

92045

BEARING,BALL,16016

92045-1020

$116.92

92046

BEARING

92046-1020

Unavailable

92049

SEAL-OIL,S-35477HS

92049-1025

$14.90

92049A

SEAL-OIL,S-901159HS

92049-1026

$40.70

92049B

SEAL-OIL,SC32558

92049-1082

Unavailable

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

"0" RING,159MM

92055-1030

Unavailable

92055B

"0" RING,75MM

92055-1031

Unavailable

92055C

RING-O,67MM

92055-1032

Unavailable

92055D

RING-O,ID=32.7

92055-1037

Unavailable

92116

BEARING-ROLLER,4T30305C

92116-1002

$39.77

92116A

BEARING-ROLLER,4T30205

92116-1003

$36.32

130

BOLT-FLANGED,8X12

130B0812

$0.77

480

CIRCLIP-TYPE-C,26MM

480J2600

$10.03
