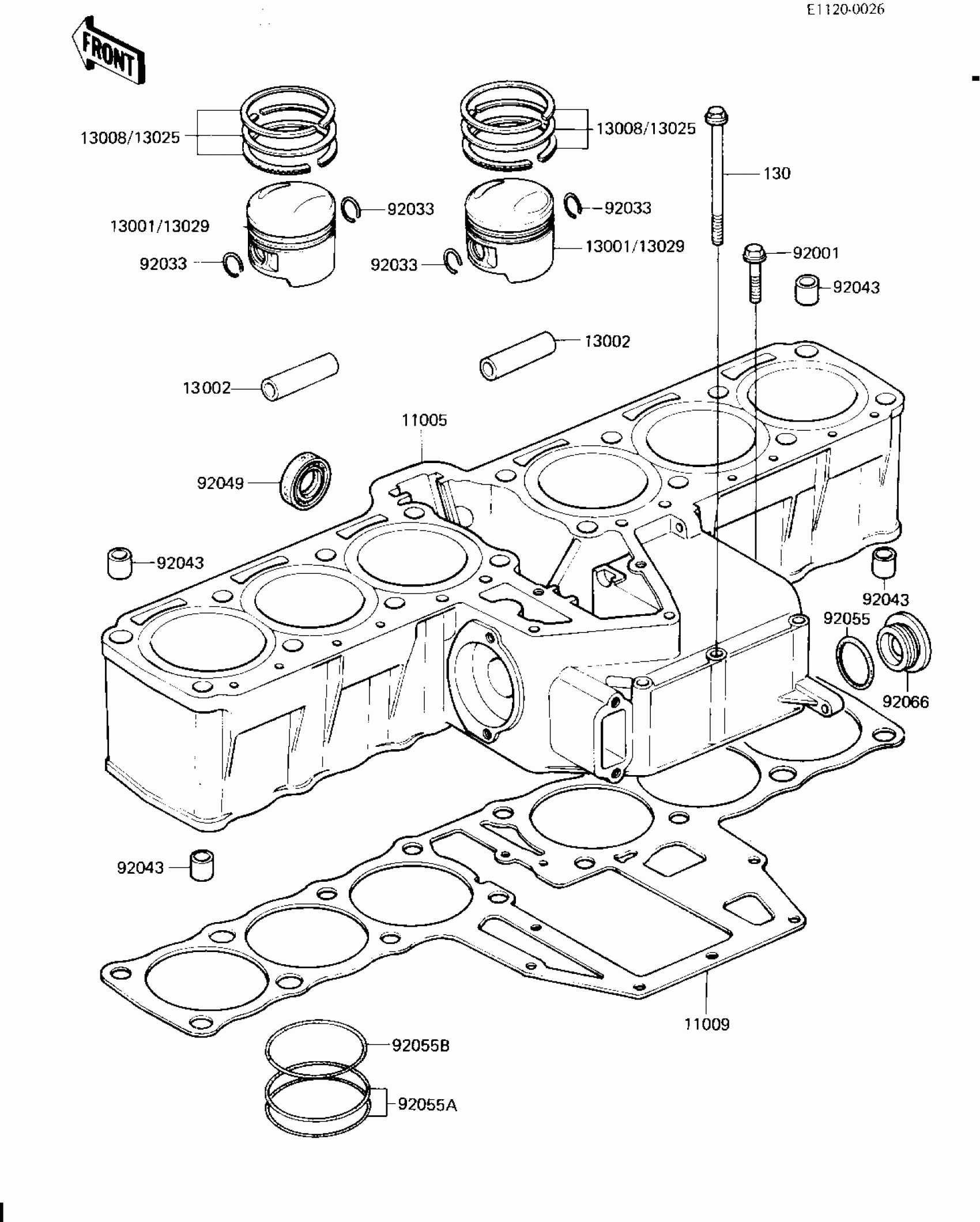

Kawasaki KZ1300-A4 CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1104

Unavailable

11009

GASKET,CYLINDER BASE

11009-1101

Unavailable

13001

PISTON-ENGINE,STD

13001-1113

Unavailable

13002

PIN-PISTON

13002-032

Unavailable

13008

RING-SET-PISTON,STD

13008-5059

$98.70

13025

RING-SET-PISTON L,O/S 0.50

13025-5025

$110.36

13029

PISTON-ENGINE L,O/S

13029-1061

Unavailable

92001

BOLT,FLANGED,6X28

92003-202

Unavailable

92033

RING-SNAP

92036-005

$4.07

92043

PIN,11X14X12.3

92043-1266

$1.08

92049

SEAL-OIL,TC17317

92049-1028

$10.40

92055

RING-O,27.7X2.4

92055-091

$6.22

92055A

RING-O,67MM

92055-1032

Unavailable

92055B

RING-O,67.5MM

92055-1035

Unavailable

92066

PLUG,30X8

92067-024

$11.29

130

BOLT,FLANGED,6X85

130G0685

$2.93
