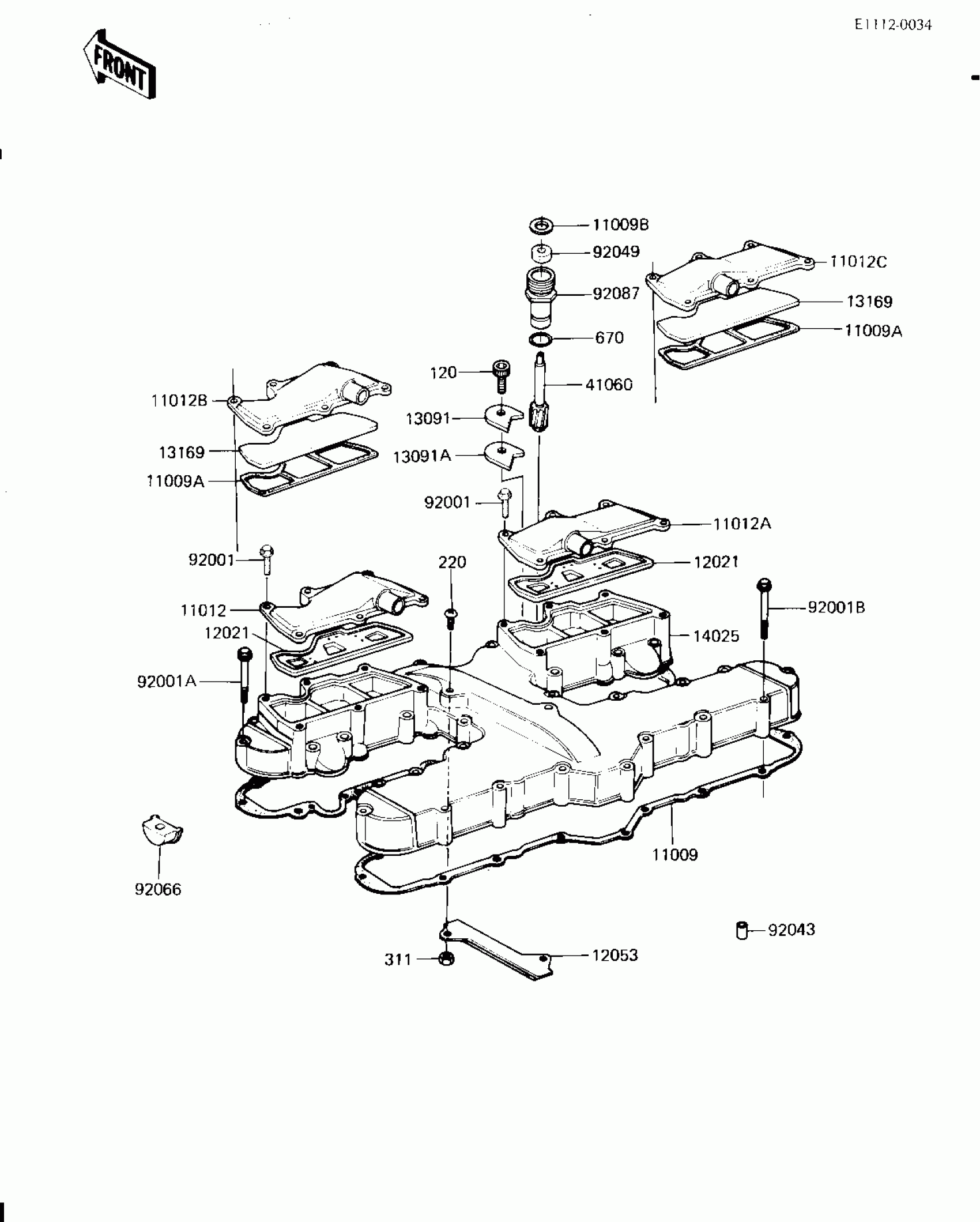

Kawasaki KZ1300-A4 CYLINDER HEAD COVER Diagram
#
Description
Price
11009
GASKET,CYLINDER HEAD COVER
11009-1095
Unavailable
11009A
GASKET (Canada)
11009-1170
Unavailable
11009B
GASKET,TACHOMETER GEAR
92065-103
$4.07
11012
CAP,REED VALVE,LH
11012-1057
Unavailable
11012A
CAP,REED VALVE,RH
11012-1058
Unavailable
11012B
CAP,L.H (Canada)
11012-1107
Unavailable
12021C
CAP,R.H (Canada)
11012-1108
Unavailable
12021
VALVE-ASSY-REED
12021-1004
Unavailable
12053
GUIDE-CHAIN,CAM
12053-1026
Unavailable
13091
HOLDER,TACHOMETER2.3T
13091-1008
$4.26
13091A
HOLDER,TACHOMETR,3.2T
13091-1009
$4.26
13169
PLATE (Canada)
13169-1221
Unavailable
14025
COVER,CYLINDER HEAD
14025-1312
Unavailable
41060
GEAR,TACHOMETER,10T
13223-011
Unavailable
92001
BOLT,FLANGED,6X20
92001-1100
$5.23
92001A
BOLT,FLANGED,6X52
92001-1192
$7.46
92001B
BOLT,FLANGED,6X45
92003-092
$7.58
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92049
SEAL-OIL
92050-075
$11.39
92066
PLUG,CAMSHAFT,
92066-1030
$17.85
92087
GUIDE,TACHOMETER GEAR
92087-010
$24.19
120
BOLT-SOCKET,6X14
120P0614
$3.82
220
SCREW-PAN-CROS,6X16
220B0616
$2.84
311
NUT 6MM
311B0600
$0.93
670
O RING,10MM
670D1510
$4.69
