Description

Price

11004

GASKET-HEAD,CYLINDER

11004-1014

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1022

Unavailable

16065

HOLDER-CARBURETOR

16065-1016

Unavailable

49002

GUIDE-VALVE,INTAKE

12013-009

$27.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,VACUUM

92001-1143

Unavailable

92001A

BOLT,HEX HEAD,6X161

92001-1302

$6.63

92001B

BOLT,FLANGED,6X45

92003-092

$7.58

92004

STUD,6X27

92004-066

$5.17

92015

NUT,FLANGED CAP,10MM

92015-076

$13.08

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP,CARBURETOR HOLDER

92037-1119

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

130

BOLT,FLANGED,6X65

130G0665

$1.42

130A

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED,6X8

130B0608

$0.67

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

411

WASHER-PLAIN,10MM

411B1000

$0.93

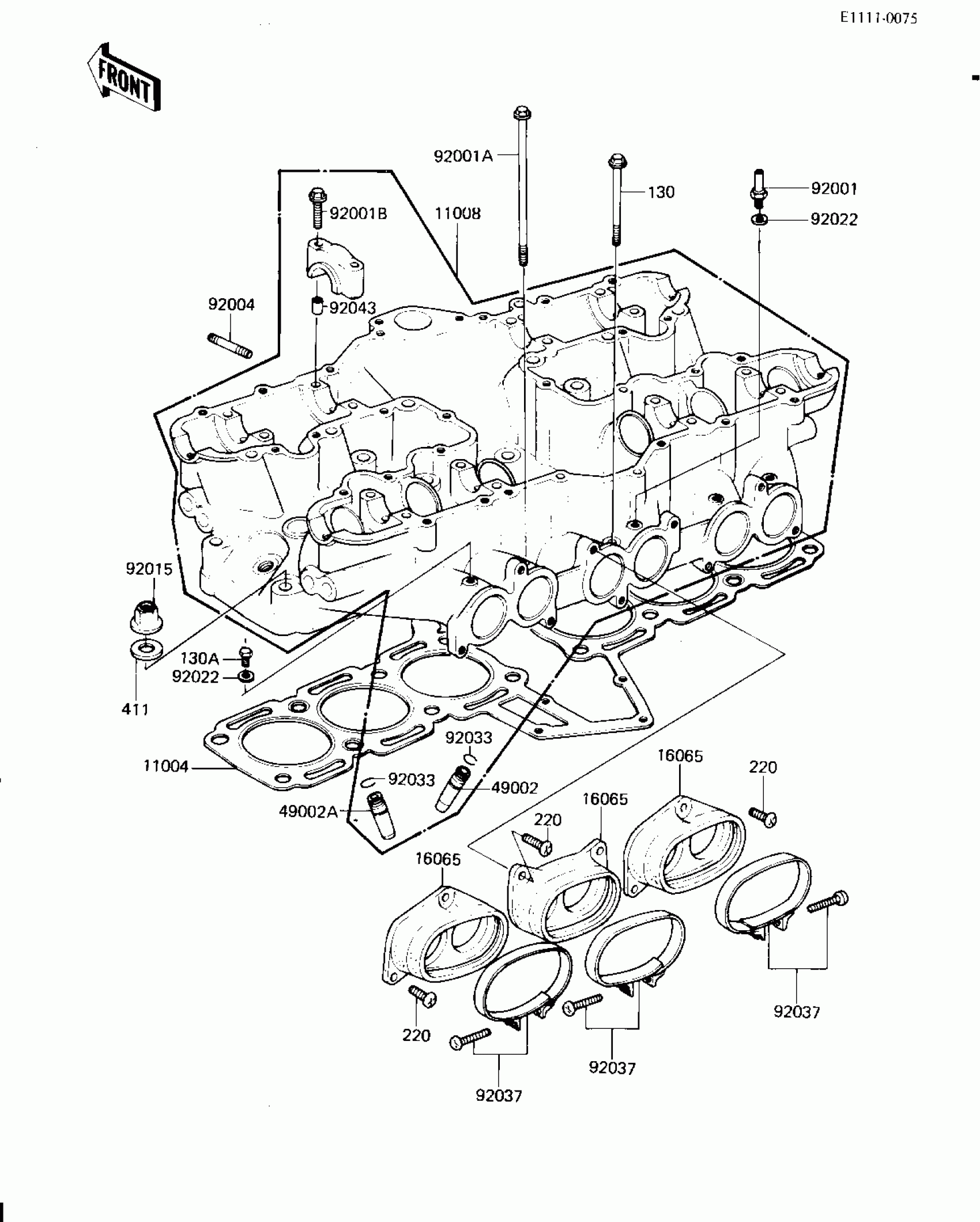

Kawasaki KZ1300-A4 CYLINDER HEAD Diagram

GASKET-HEAD,CYLINDER

HEAD-COMP-CYLINDER

HOLDER-CARBURETOR

GUIDE-VALVE,INTAKE

GUIDE-VALVE,EXHAUST

BOLT,VACUUM

BOLT,HEX HEAD,6X161

BOLT,FLANGED,6X45

STUD,6X27

NUT,FLANGED CAP,10MM

WASHER,6.2X11X1

RING-SNAP,VALVE GUIDE

CLAMP,CARBURETOR HOLDER

PIN,DOWEL,6.3X8X14

BOLT,FLANGED,6X65

BOLT-FLANGED,6X8

BOLT-FLANGED,6X8

SCREW-PAN-CROS,6X16

WASHER-PLAIN,10MM
