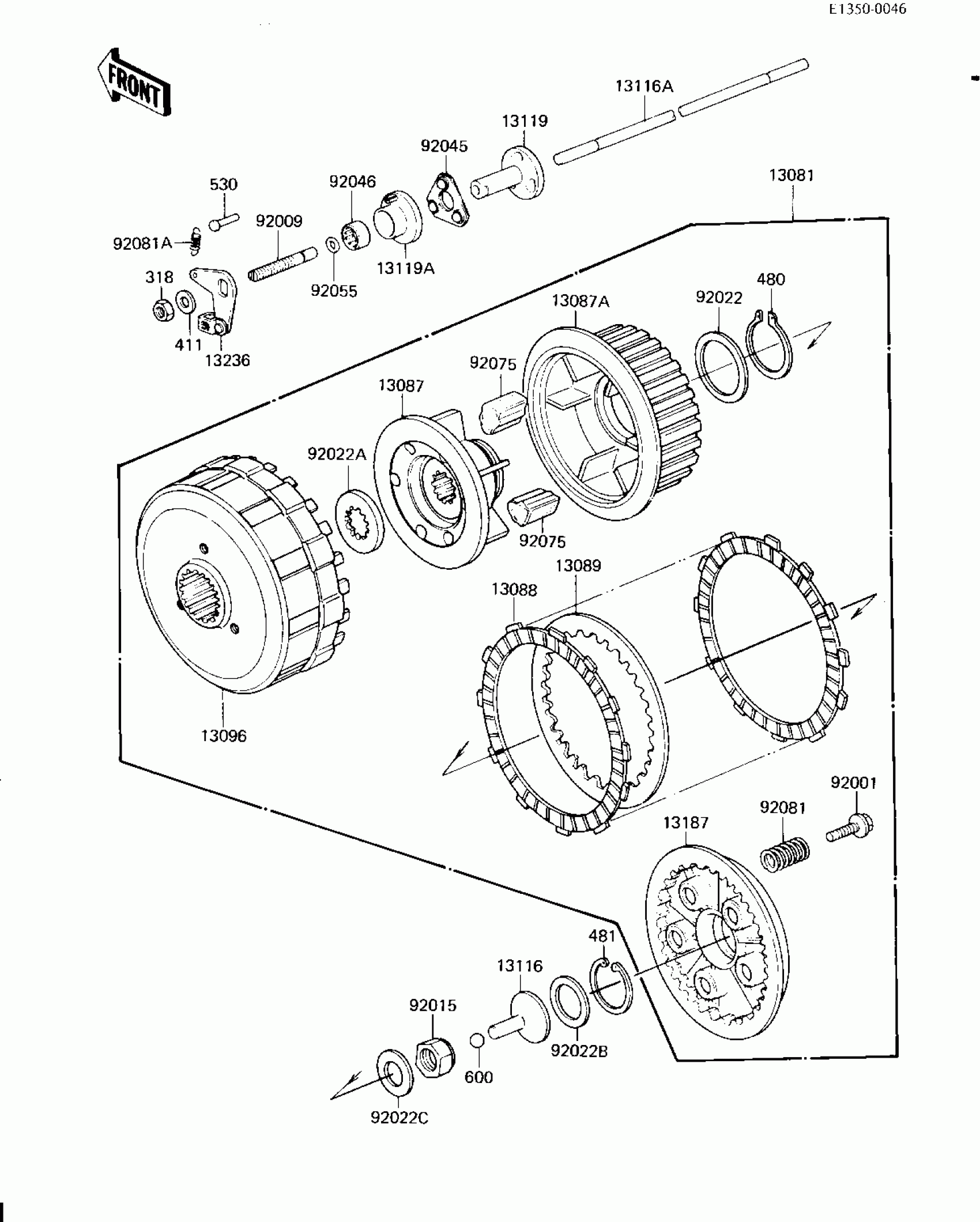

Kawasaki KZ1300-A4 CLUTCH Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1076

Unavailable

13087

HUB,CLUTCH,INNER

13087-1006

Unavailable

13087A

HUB-CLUTCH

13087-1019

Unavailable

13088

PLATE,FRICTION

13088-1004

Unavailable

13089

PLATE,CLUTCH,STEEL

13089-1003

Unavailable

13096

HOUSING,CLUTCH

13096-1007

Unavailable

13116

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

13116A

ROD,PUSH,CLUTCH,8X328

13116-1013

Unavailable

13119

CAM,RELEASE,INNER

13119-1005

Unavailable

13119A

CAM,RELEASE,OUTER

13119-1006

Unavailable

13187

PLATE-CLUTCH OPERATIN

13187-1010

Unavailable

13236

LEVER,CLUTCH RELEASE

13236-1008

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92009

SCREW,SLOTTED,8M/M

92009-1038

$12.15

92015

NUT,20M/M,CLUTCH HUB

92015-1054

$10.99

92022

WASHER,50.3X60X1.0

92022-1081

$7.20

92022A

WASHER,SPLINED

92022-1082

$27.93

92022B

WASHER,30X44.7X3.2

92022-1097

$8.22

92022C

WASHER

92125-002

Unavailable

92045

BALL ASSY,CLUTCH RELE

92045-1014

$11.73

92046

BEARING,N,TLA1412

92046-1013

$47.40

92055

O RING,5MM

670B1505

$3.26

92075

DAMPER,CLUTCH

92075-1088

$18.02

92081

SPRING,CLUTCH

92081-1149

$12.62

92081A

SPRING GEAR CHNG LEV

92083-011

$4.09

318

NUT-HEX-SMALL,8MM

318B0800

$0.59

411

WASHER PLAIN 8MM

411B0800

$0.93

480

CIRCLIP,50MM

480J5000

$9.70

481

CIRCLIP,45MM

481J4500

$2.06

530

RIVET,ROUND,4X20

530C0420

$4.05

600

BALL-STEEL,3/8"

600A1200

$1.56
