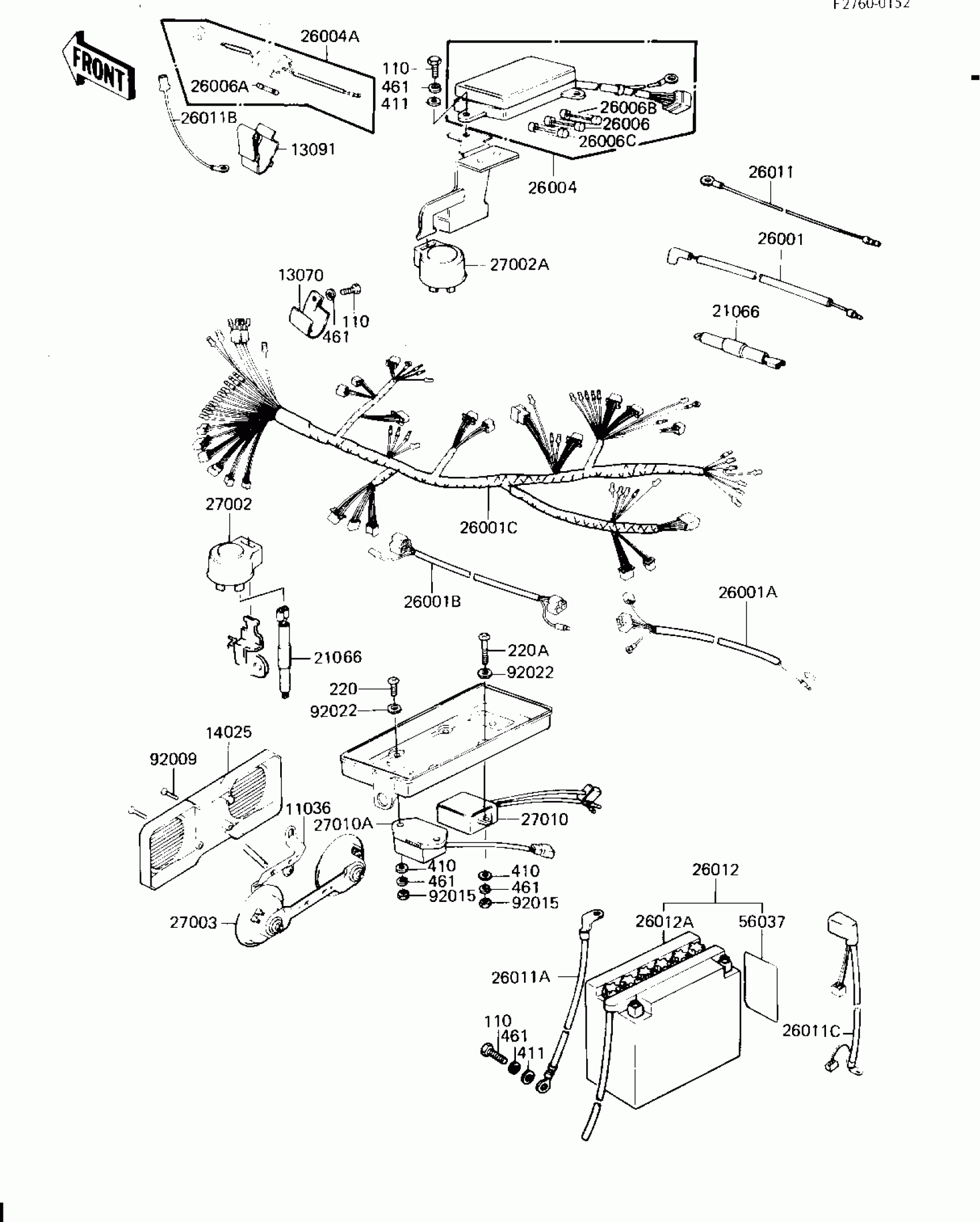

Kawasaki KZ1300-A4 CHASSIS ELECTRICAL EQUIPMENT Diagram
#
11036
BRACKET,HORN COVER
11036-1028
Unavailable
13070
GUIDE,MAIN HARNESS
13070-1022
Unavailable
13091
HOLDER,ACCESSORY FUSE
13091-1102
Unavailable
14025
COVER,HORN
14025-1310
Unavailable
21066
REGULATOR
21066-026
Unavailable
26001
WIRING HARNESS,SUB
26001-1064
$8.42
26001A
HARNESS,REGULATOR
26001-1374
$16.85
26001B
HARNESS,WARNER
26001-1375
$11.93
26001C
HARNESS,MAIN
26001-1379
$217.14
26004
FUSE ASSY
26004-1009
$69.29
26004A
FUSE-ASSY
26004-1018
$58.99
26006
FUSE,10A,L=25
26006-003
$4.72
26006A
FUSE,GLASS TUBE,6.4X30,10A,YEL
26006-1002
$4.96
26006B
FUSE,2A,L=25M/M
26006-1004
$4.49
26006C
FUSE,30A,L=25
26006-1005
$5.06
26011
WIRE-LEAD,L=285
26011-095
$11.60
26011A
WIRE,BATTERY GROUND
26011-1038
$43.85
26011B
WIRE-LEAD,ACCESSORY GROUND
26011-1100
$11.79
26011C
WIRE-LEAD,BATTERY
26011-1160
$27.62
26012
YUA BAT Y50-N18L-A2
26012-1012
Unavailable
26012A
26012-1012 (Canada)
26012-1019
Unavailable
27002
RELAY-ASSY,TURN SIGNAL
27002-011
$101.43
27002A
RELAY,TURN SIGNAL
27002-016
Unavailable
27003
HORN
27003-1037
$190.67
27010
SWITCH,TURN SIGNAL OP
27010-1016
Unavailable
27010A
SWITCH,RESERVE LIGHTI
27010-1024
Unavailable
56037
LABEL-WARNING,BATTERY
56040-1036
Unavailable
92009
SCREW-CSK
221C0430
$2.98
92015
NUT,LOCK 6MM
92017-014
$7.51
92022
WASHER PLAIN
92022-024
$3.65
110
BOLT-UPSET,6X12
112G0612
$1.45
220
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
220A
SCREW PAN HEAD 6X35
220B0635
$1.63
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN 6MM
411B0600
$2.84
461
WASHER SPRING 6MM
461F0600
$0.69
