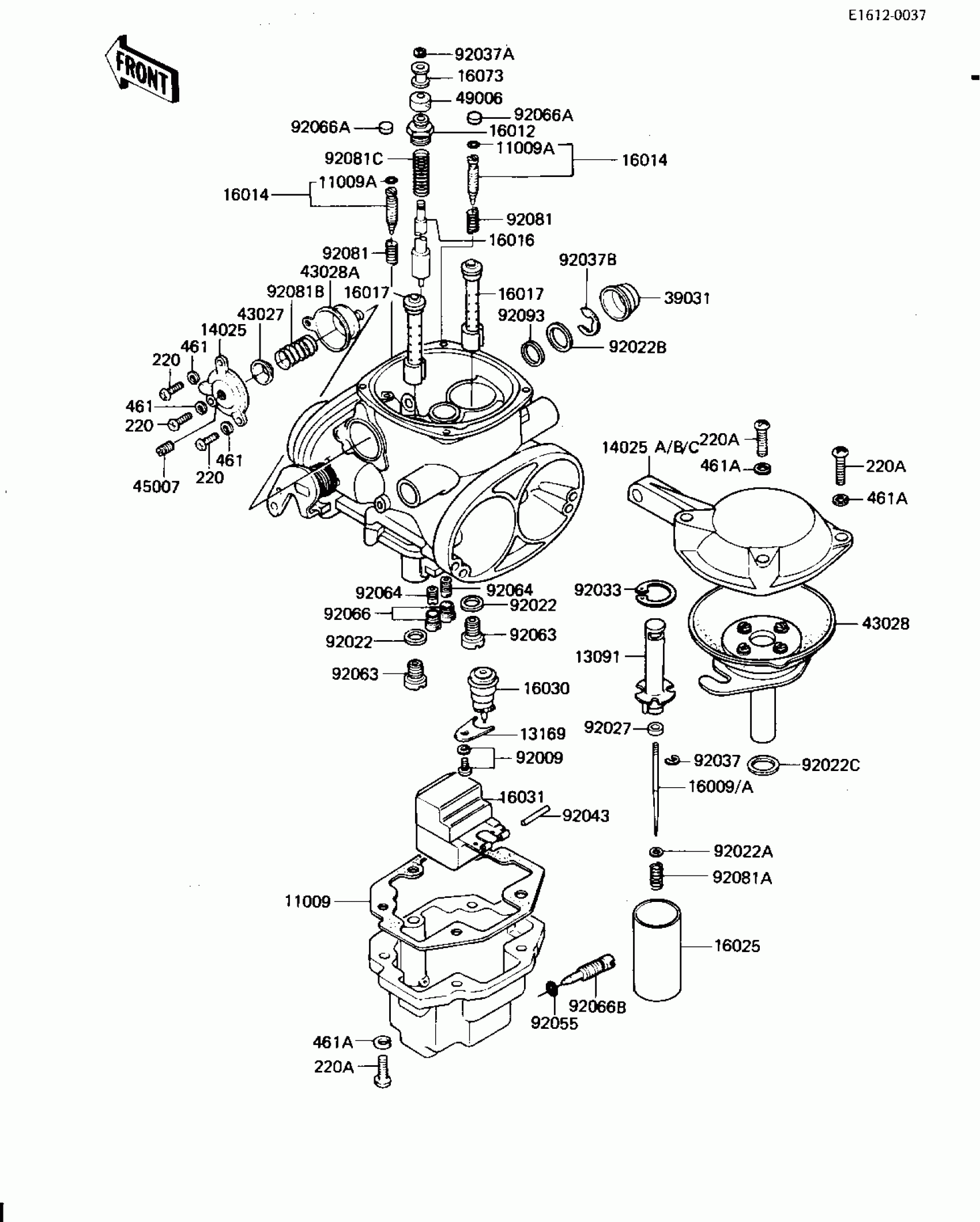

Kawasaki KZ1300-A4 CARBURETOR PARTS Diagram

#

Description
Price

11009

GASKET,FLOAT CHAMBER

11009-1148

Unavailable

11009A

GASKET,"O"RING

16038-022

$6.89

13091

HOLDER,PISTON VALVE

13091-1056

Unavailable

13169

PLATE, LOCK

13169-1190

Unavailable

14025

COVER,COASTING RICHER

14025-1158

Unavailable

14025A

TOP,MXNG CHAMBER,L.H.

14025-1159

Unavailable

14025B

TOP,MXNG CHAMBER,CENT

14025-1160

Unavailable

14025C

TOP,MXNG CHAMBER,R.H.

14025-1161

Unavailable

16009

JET NEEDLE,5P3 (Canada)

16009-1038

Unavailable

16009A

JET NEEDLE,5P4

16009-1050

$25.40

16012

CAP,STARTER PLUNGER

16012-1005

$23.31

16014

SCREW,PILOT ADJUSTING

16014-1016

$33.69

16016

PLUNGER,STARTER

16016-1005

$56.29

16017

NEEDLE JET,Y-8

16017-1038

$52.31

16025

VALVE,PISTON

16025-1029

$71.22

16030

FLOAT VALVE ASSY

16030-1005

Unavailable

16031

FLOAT

16031-1006

Unavailable

16073

COLLAR

16073-014

$10.47

39031

CAP,STEEL

39031-1002

$6.61

43027

RETAINER,DPHRGM SPRNG

43027-1004

$11.17

43028

DIAPHRAGM ASSY,VACUUM

43028-1014

Unavailable

43028A

DIAPHRAGM,RICHER

43028-1017

Unavailable

45007

SCREW,SLOTTED

45007-1001

$5.11

49006

RUBBER CAP,STARTER PL

16036-017

Unavailable

92009

SCREW-CLAMP

16033-014

Unavailable

92022

WASHER,MAIN JET

16034-001

$4.31

92022A

WASHER,JET NEEDLE

92022-1123

$8.98

92022B

WASHER,PLAIN

92022-1150

$4.69

92022C

WASHER,PLAIN,DURACON

92022-1155

Unavailable

92027

UNAVAILABLE IN PRICE BOOK

92027-11

Unavailable

92033

CIRCLIP

92033-1009

Unavailable

92037

CLAMP,E-TYPE

16008-014

$9.64

92037A

CIRCLIP

16076-003

$8.92

92037B

CIRCLIP

92037-1140

$3.20

92043

PIN,FLOAT

16032-003

$6.57

92055

RING-O

92055-044

$10.38

92063

MAIN JET,#110R

92063-1038

$16.50

92064

PILOT JET,#42.5

92064-1024

$24.35

92066

SCREW,HOLE PLUG

92066-1044

$11.28

92066A

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92066B

PLUG,DRAIN

92066-1064

$12.37

92081

SPRING,PILOT SCREW

16022-016

$9.10

92081A

SPRING,JET NEEDLE

92081-1126

$8.36

92081B

SPRING,RICHER DPHRGM

92081-1156

$4.68

92081C

SPRING,STARTER PLUNGR

92081-1163

$4.06

92093

OIL SEAL

92093-1027

$7.95

220

SCREW PAN HEAD 4X10

220B0410

$2.30

220A

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

461

WASHER SPRING 4MM

461F0400

Unavailable

461A

WASHER SPRING 5MM

461F0500

$0.69
