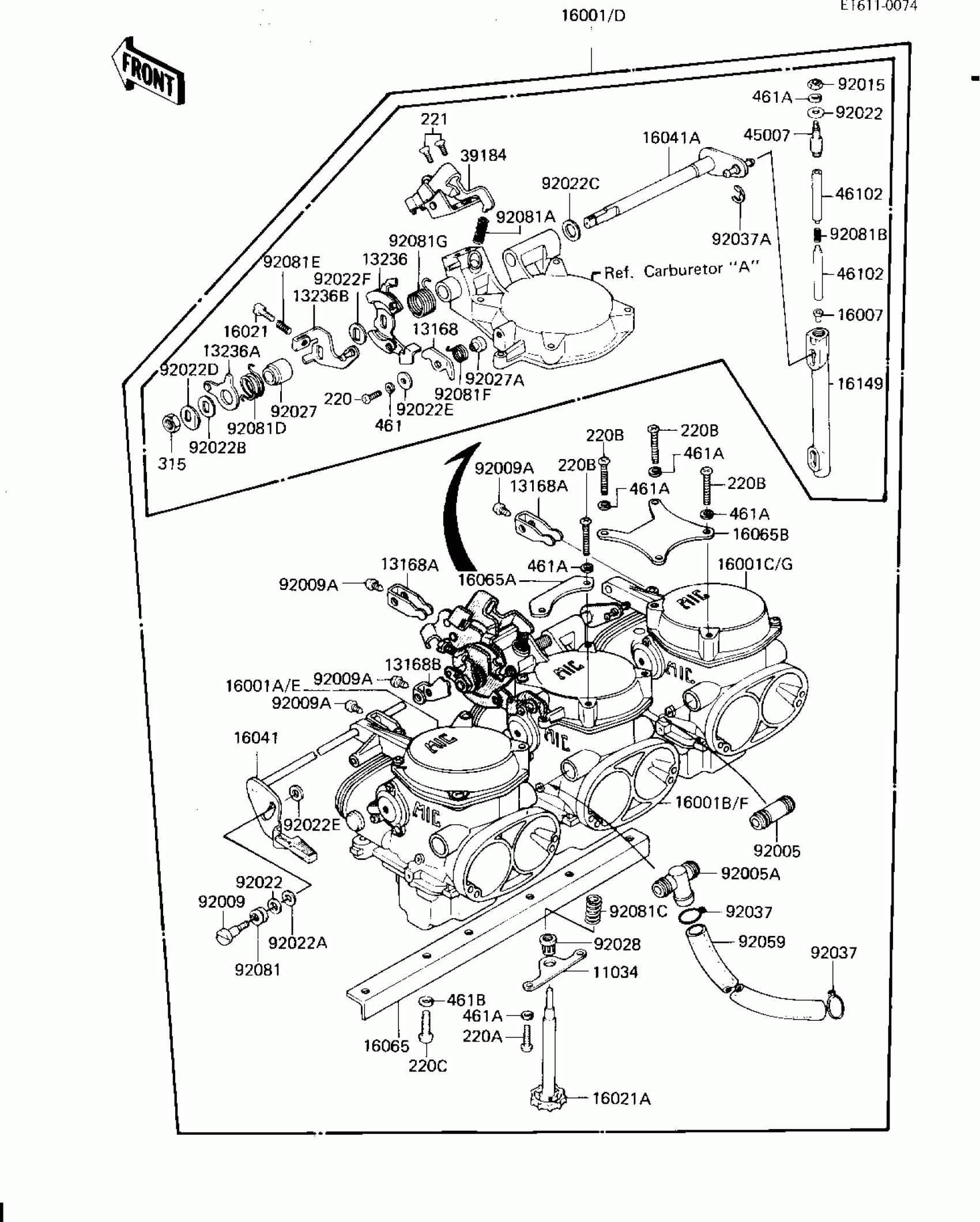

Kawasaki KZ1300-A4 CARBURETOR ASSY Diagram

#

Description
Price

11034

BRACKET,THRT STP SCRW

11034-1514

Unavailable

13168

LEVER,THRTTL STP SCRW

13168-1043

Unavailable

13168A

LEVER,STARTER PLUNGER

13168-1044

Unavailable

13168B

CAM,CHOCK LINK

13168-1045

Unavailable

13236

PULLY,THROTTLE CABLE

13236-1016

Unavailable

13236A

LEVER,CHOCK LINK

13236-1017

Unavailable

13236B

LEVER,THROTTLE

13236-1018

Unavailable

16001

CARBURETOR ASSY

16001-1211

$1,437.33

16001A

CARBURETOR,L.H

16001-1247

$497.51

16001B

CARBURETOR,CENTER

16001-1248

$520.67

16001C

CARBURETOR,R.H

16001-1249

$520.67

16001D

CARBURETOR ASSY (Canada)

16001-1262

Unavailable

16001E

CARBURETOR,L.H (Canada)

16001-1263

Unavailable

16001F

CARBURETOR,CENTER (Canada)

16001-1264

Unavailable

16001G

CARBURETOR,R.H (Canada)

16001-1265

Unavailable

16007

SEAT-SPRING

16057-002

Unavailable

16021

ADJUSTER,THROTTLE LEV

16021-020

Unavailable

16021A

SCREW,THROTTLE STOP

16021-1013

$73.07

16041

SHAFT,STARTER PLUNGER

16041-1006

$57.44

16041A

SHAFT,THROTTLE LEVER

16041-1007

$64.63

16065

PLATE,STAY

16065-1021

$40.51

16065A

STAY,CARBURETOR HEAD

16065-1022

$11.08

16065B

STAY,CARBURETOR HEAD

16065-1023

$13.58

16149

ROD THROTTLE

16149-1006

$25.98

39184

BRACKET,THRTTL PULLY

39184-1002

$55.22

45007

SCREW

45007-1002

$10.32

46102

PIN

46102-1008

$6.90

92005

NIPPLE,FUEL

92005-1018

Unavailable

92005A

FITTING,FUEL HOSE

92005-1019

Unavailable

92009

SCREW

16046-005

Unavailable

92009A

SCREW,PAN HEAD,5X7

16046-007

Unavailable

92015

NUT,5MM

16003-013

$9.12

92022

WASHER,PLAIN

16039-020

Unavailable

92022A

WASHER,PLAIN,DURACON

92022-1147

Unavailable

92022B

WASHER,PLAIN

92022-1148

Unavailable

92022C

WASHER,PLAIN,DURACON

92022-1149

Unavailable

92022D

WASHER,LOCK

92022-1151

$3.37

92022E

WASHER,PLAIN

92022-1152

$3.49

92022F

WASHER,PLAIN

92022-1153

$3.49

92027

COLLAR,CHOCK LINK

92027-1201

$7.64

92027A

COLLAR,STEPPED

92027-1203

$9.97

92028

BUSHING

92028-1071

Unavailable

92037

CLAMP,TUBE

92037-1184

$1.09

92037A

CIRCLIP,ROCKER ARM

92037-1139

$3.04

92059

TUBE,7.5X12.5X225

92059-1123

Unavailable

92081

SPRING,F

16040-009

Unavailable

92081A

SPRING,CABLE PULLY

16040-022

Unavailable

92081B

SPRING

16040-026

Unavailable

92081C

SPRING,THRTL STP SCRW

92081-1155

Unavailable

92081D

SPRING,CHOCK LINK

92081-1157

$7.93

92081E

SPRING,ADJUSTER SCREW

92081-1160

$3.54

92081F

SPRING,THRT STP LEVER

92081-1161

Unavailable

92081G

SPRING,THRTTL PULLY

92081-1162

Unavailable

220

SCREW PAN HEAD 4X16

220B0416

Unavailable

220A

SCREW-PAN-CROS

220B0518

Unavailable

220B

SCREW PAN HEAD 5X30

220B0530

Unavailable

220C

SCREW PAN HEAD 6X12

220B0612

Unavailable

221

SCREW CNTSNK HD 5X10

221B0510A

$2.79

315

NUT,8 M/M

315G0800

$2.56

461

WASHER SPRING 4MM

461F0400

Unavailable

461A

WASHER SPRING 5MM

461F0500

Unavailable

461B

WASHER SPRING 6MM

461F0600

Unavailable
