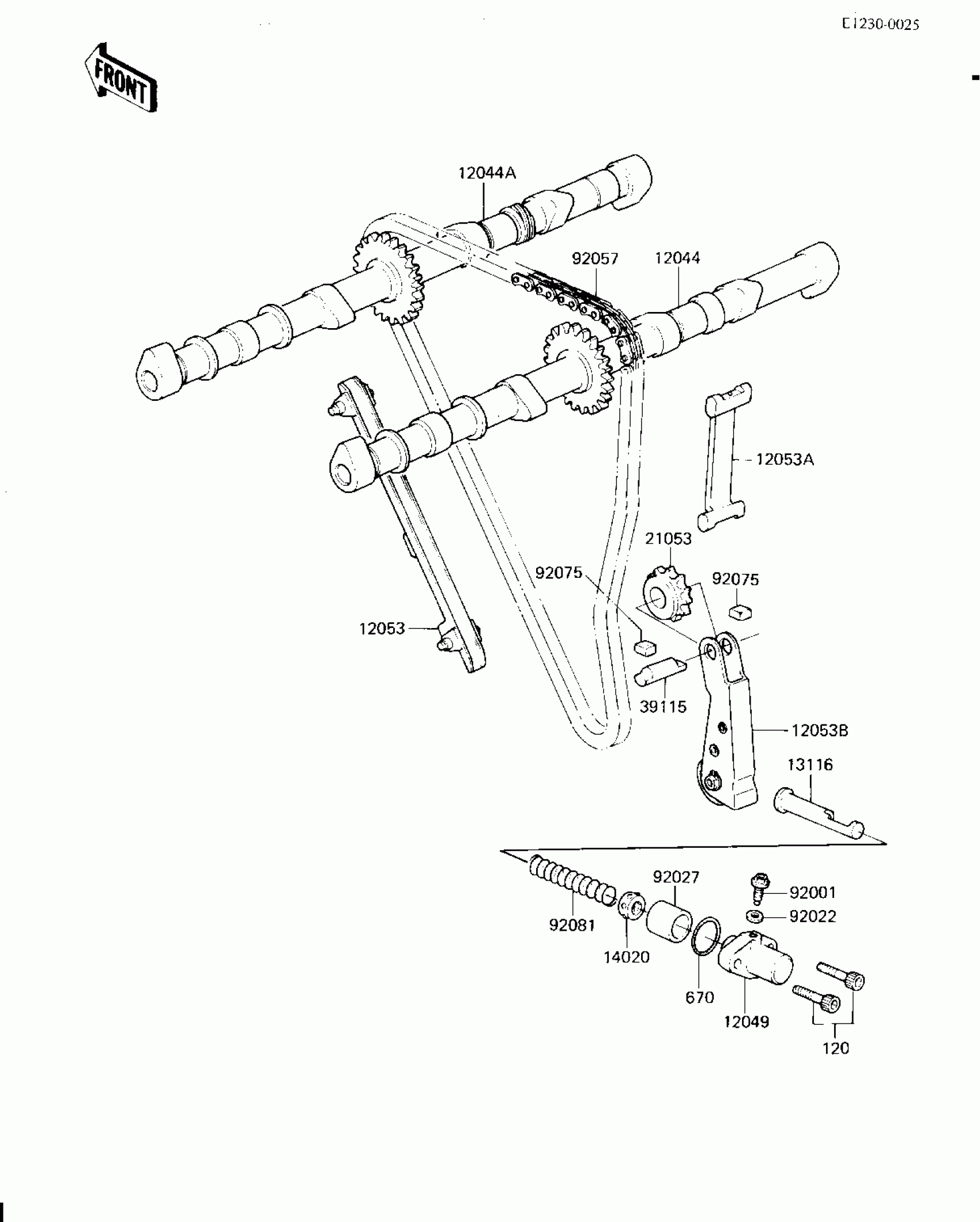

Kawasaki KZ1300-A4 CAMSHAFTS/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT,VALVE,INTAKE

12044-1012

Unavailable

12044A

CAMSHAFT,VALVE,EXHUST

12044-1013

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1055

$46.14

12053

GUIDE-CHAIN,CAM,FR

12053-1024

Unavailable

12053A

GUIDE-CHAIN,CAM,RR

12053-1025

Unavailable

12053B

GUIDE-CHAIN,TENSIONER

12053-1028

Unavailable

13116

ROD,PUSH

13116-1015

Unavailable

14020

RETAINER,TENSIONER

14020-1002

$17.55

21053

SPROCKET-ASSY,CAM CHAIN

21053-1004

Unavailable

39115

SHAFT-IDLER,GUIDE ROLLAR

12052-005

$32.94

92001

BOLT,TENSIONER ADJUST

92001-1155

$5.33

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92027

COLLAR,TENSIONER

92027-1273

$32.58

92057

CHAIN,CAMSHAFT,75-010X158L

92057-1018

Unavailable

92075

DAMPER,IDLER SHAFT

92075-232

$5.72

92081

SPRING,TENSIONER

92081-1105

$4.55

120

BOLT-SOCKET,6X25

120P0625

$1.92

670

O RING,22MM

670B2022

$4.69
