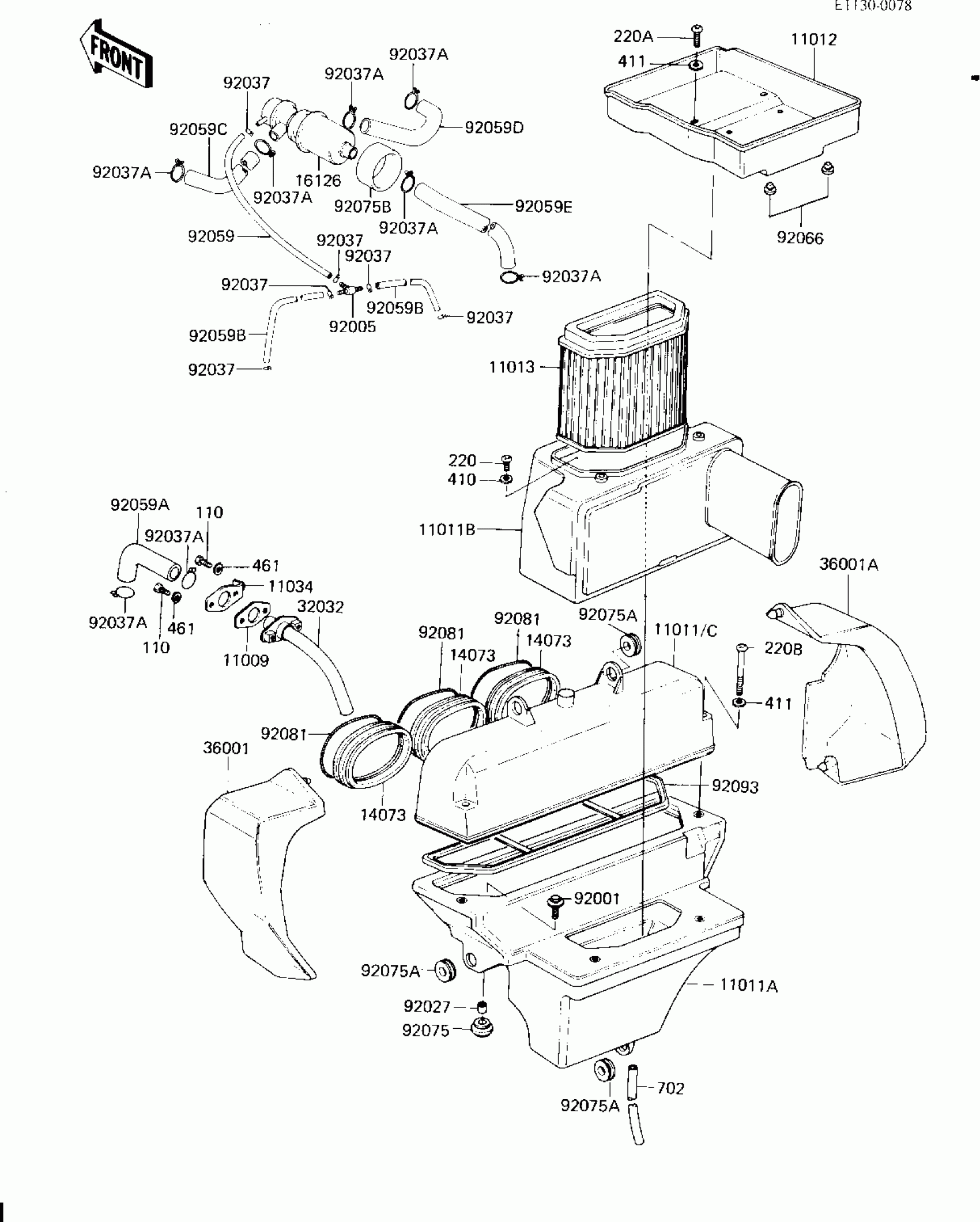

Kawasaki KZ1300-A4 AIR CLEANER Diagram
#
11009
GASKET,BREATHER PIPE
11009-1097
Unavailable
11011
CASE,AIR CLEANER,FRNT
11011-1021
Unavailable
11011A
CASE,AIR CLEANER LOWR
11011-1022
Unavailable
11011B
CASE,AIR CLEANER,REAR
11011-1023
Unavailable
11011C
CASE,AIR CLEANER,FR
11011-1098
Unavailable
11012
CAP,AIR CLEANER
11012-1062
Unavailable
11013
ELEMENT,AIR CLNR
11013-1014
Unavailable
11034
BRACKET,FUEL VALVE
11034-1561
Unavailable
14073
DUCT,AIR CLEANER
14073-1015
$47.98
16126
VALVE ASSY,AIR SWITNG
16126-1015
Unavailable
32032
PIPE,BREATHER
32032-1199
$26.75
36001
COVER-SIDE AR FLTR,LH
36001-1121
$131.11
36001A
COVER SIDE AR FLTR RH
36001-1122
Unavailable
92001
BOLT,6X25,W/WASHER
92001-1140
$5.01
92005
FITTING,TUBE,T-TYPE
92005-1017
Unavailable
92027
COLLAR 6.8X10X10.5
92027-120
$5.00
92037
CLAMP,TUBE
92037-072
$7.22
92037A
CLAMP,TUBE
92037-213
$4.31
92037A
CLAMP,TUBE
92037-213
$4.31
92059
TUBE,VACUUM,LONG
92059-1162
$19.09
92059A
TUBE,BREATHER PIPE
92059-1053
Unavailable
92059B
TUBE,4X9X100
92059-1058
$19.09
92059C
TUBE,SWITCH VALVE,L.H
92059-1076
Unavailable
92059D
TUBE,SWITCH VALVE,R.H
92059-1077
Unavailable
92059E
TUBE,SWITH VALVE,CLNR
92059-1078
Unavailable
92066
PLUG,7X2
92074-028
$4.26
92075
DAMPER,AIR CLEANER
92075-1124
$4.36
92075A
DAMPER,CLEANER COVER
92075-1126
$8.94
92075B
DAMPER,AIR SWITCHNG,V
92075-1195
$3.83
92081
SPRING,CLEANER DUCT
92081-1150
Unavailable
92093
SEAL,CLEANER LWR CASE
92093-1025
Unavailable
110
BOLT-UPSET,6X16
112G0616
$1.10
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
220A
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
220B
SCREW PAN HEAD 6X55
220B0655
$4.12
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN 6MM
411B0600
$2.84
461
WASHER SPRING 6MM
461F0600
$0.69
702
TUBE-RUBBER,6X110
702A06110
$21.97
